Housing

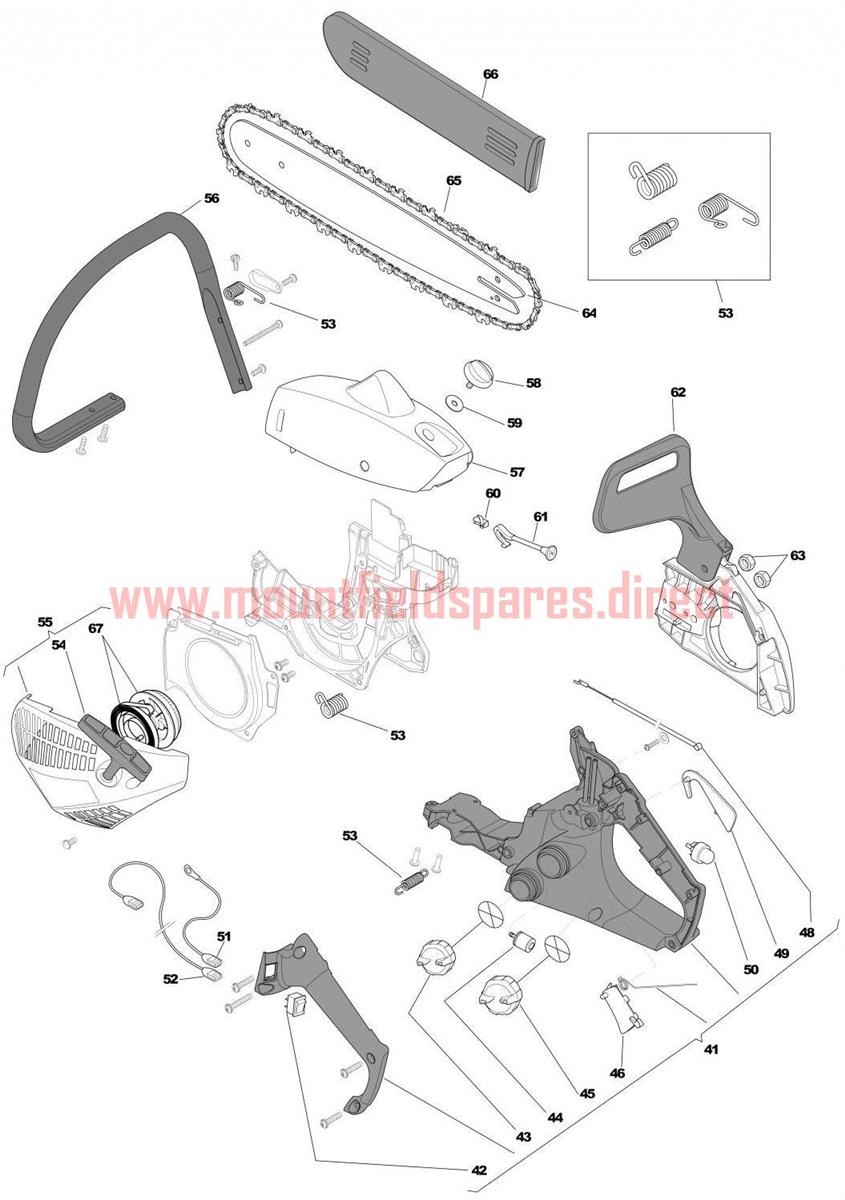

Housing assembly details for Mountfield MC3916 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
041183300014/0HANDLE ASSEMBLY£91.58 Add to
042123303001/0STOP SWITCH£3.55 Add to
043183790005/0OIL TANK CAP£5.46 Add to
044183520001/0INTAKE FILTER£5.46 Add to
045183790004/0Fuel Tank-Cap Ass.Y£7.13 Add to
046123315069/0Throttle Lever£6.17 Add to
048123066010/0Cable, Trottle (OBSOLETE)N/A
049123315070/0Safety Lever£6.17 Add to
0506980242PrimerN/A POA
051123065020/0Earth Cable£6.17 Add to
052123065021/0Stop Wire£6.17 Add to
053183430550/0SPRING ASSEMBLY KIT£12.94 Add to
0543749437Starter Handle£7.19 Add to
055183058029/0RECOIL ASSEMBLY [BLACK]£47.32 Add to
056123105002/0HANDLE£39.61 Add to
057123087015/0CYLINDER COVER [RED]£21.43 Add to
058123593504/0KNOB£2.87 Add to
059123160053/0SPACER£2.06 Add to
060123202001/0Grommet£5.69 Add to
061123315068/0Choke Lever£6.17 Add to
062183059019/0CLUTCH HOUSING ASSY BLACKN/A POA
063123120006/0NUT£1.79 Add to
064123900351/0Guide Bar 16"N/A POA
064123900352/0"Guide Bar 18"""N/A POA
065123920107/0"Chain 18"""N/A POA
0651519-9120-01CHAIN 91VG-56E£32.92 Add to
0664181307CHAIN COVER 16"£6.42 Add to
067183604000/0Starter PulleyN/A POA
