Carburettor

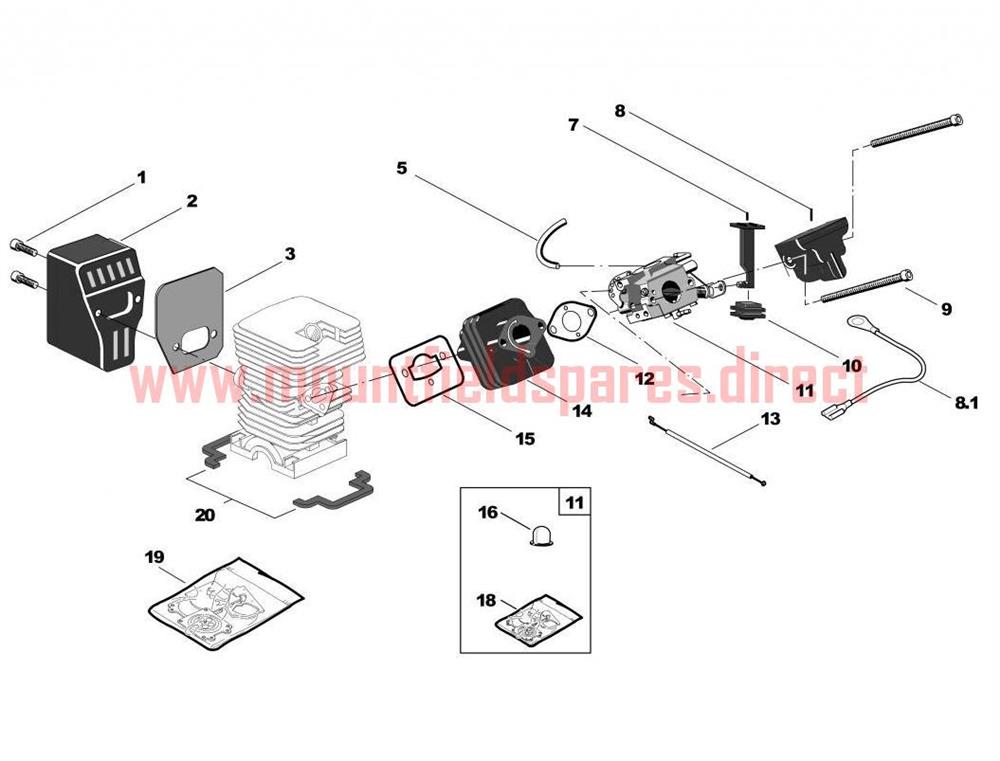

Carburettor assembly details for Mountfield MC382 2008 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	2135040	TORX SCREW M5 x 18	£1.79	Add to
002	4122040	MUFFLER ASS.Y 360410	£39.80	Add to
003	3724270	MUFFLER GASKET	£4.52	Add to
005	3786130	Tube (OBSOLETE) (OBSOLETE)	N/A
007	3743640	Choke Lever	N/A	POA
008	8744781	INTAKE MANIFOLD	£38.44	Add to
009	2135210	TORX SCREW M5 x 75 (OBSOLETE) (OBSOLETE)	N/A
010	3745650	Grommet	£7.19	Add to
011	23054003/2	Carburettor	£104.30	Add to
012	1L3724160/1	CARBURRETOR GASKET	£2.00	Add to
013	4252480	ACCELLERATOR CABLE 360410	£6.95	Add to
014	3750180	INTAKE MANIFOLD 360390	£13.64	Add to
015	1L3724300/1	GASKET	£3.69	Add to
016	3744870	PRIMER BULB	£13.77	Add to
018	8724091	DIAPHRAGM GASKET SET	£18.82	Add to
019	8724300	GASKET SET	£16.91	Add to
020	3721560	CYLINDER BASE WASHER CS 360-410	£2.47	Add to
8,1	3211690	Earth Cable	£5.66	Add to
