ENGINE

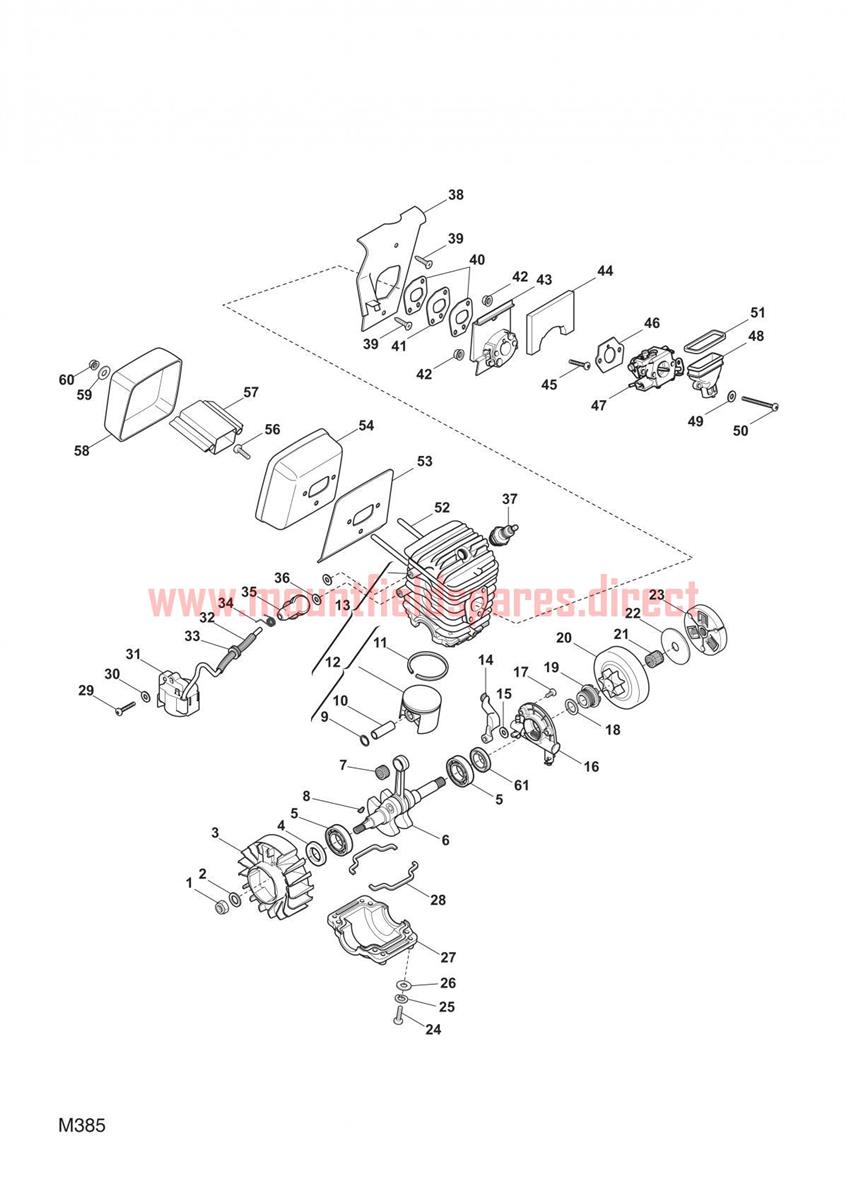

ENGINE assembly details for Mountfield MC487 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0012432050Nut£4.01 Add to
0022312080Washer£4.01 Add to
0034541210/1FLYWHEEL£77.08 Add to
00419035151/0Seal Ring£6.38 Add to
0053112040BEARING 547056LV 6202 C3£15.00 Add to
00623020006/0Crankshaft£128.18 Add to
0073114190NEEDLE BEARING£8.04 Add to
0083151010FLYWHEEL KEY 2.5 x 3.7 x 8.6 x 70£1.79 Add to
0093356020PIN STOP£3.83 Add to
0103158010PISTON PLUG 10X29,5 40-45DC42£4.52 Add to
01123204000/0Piston Ring£8.41 Add to
01283590001/0Piston Assy£80.42 Add to
01383070001/0Cil.-Piston Assy£265.31 Add to
01423275001/0Grommet£6.92 Add to
0152312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
01683594501/0OIL PUMP 2009£50.17 Add to
01712728220/0Screw£4.01 Add to
01823657000/0Washer£4.01 Add to
01923878000/0Screw£4.01 Add to
02083050001/0Drum Ass'Y, Clutch£58.64 Add to
0213114070ROLLER CAGE K 12X15X13 H 54056£9.96 Add to
02223657001/1Washer£4.01 Add to
02383215000/0CLUTCH ASS.Y 2009£56.76 Add to
0242135060TORX SCREW M5 x 25£2.00 Add to
0252330020GROWER WASHER D.5£1.79 Add to
02723082000/0STABILIZER 2009£21.60 Add to
02823280000/0Gasket£6.01 Add to
0292132550SCREW TCCE M5 x 25£1.79 Add to
0302321150Washer£4.01 Add to
03123044000/0Electronic Coil£99.25 Add to
0323782470WIRE SHEATH£10.77 Add to
0333745130GROMMET£1.79 Add to
0343657050SPARK PLUG SPRING£3.83 Add to
0353748880SPARK PLUG CAP£2.47 Add to
0362317110Washer£4.01 Add to
0373210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
03823107500/0Air Conveyor£11.45 Add to
04023280003/0Gasket£5.91 Add to
04123160050/0Heat Block£6.92 Add to
0422670290Nut£4.01 Add to
04323073500/0INTAKE MANIFOLD 2009£19.30 Add to
04423725000/0Sponge Insulating Separator£6.38 Add to
0452135050TORX SCREW M5 x 30£1.79 Add to
04623280004/0Carburetor Gasket£5.91 Add to
04723054001/3Carburettor Walbro WT 727C£104.62 Add to
04823073501/0Intake Manifold Assy£6.65 Add to
0502135200TORX SCREW M5 x 50£1.79 Add to
05123280001/0Gasket£6.92 Add to
05223878002/0Screw£4.01 Add to
05323280005/0Muffler Gasket£6.27 Add to
05423230001/0Muffler Bottom£11.45 Add to
0562135180TORX SCREW M5 x 12£1.79 Add to
05723075000/0Muffler Inner Duct£10.69 Add to
05823109500/1CoverN/A POA
0602432040NUT M5£1.79 Add to
06119035153/0SEAL RING 2009£17.63 Add to
