ENGINE

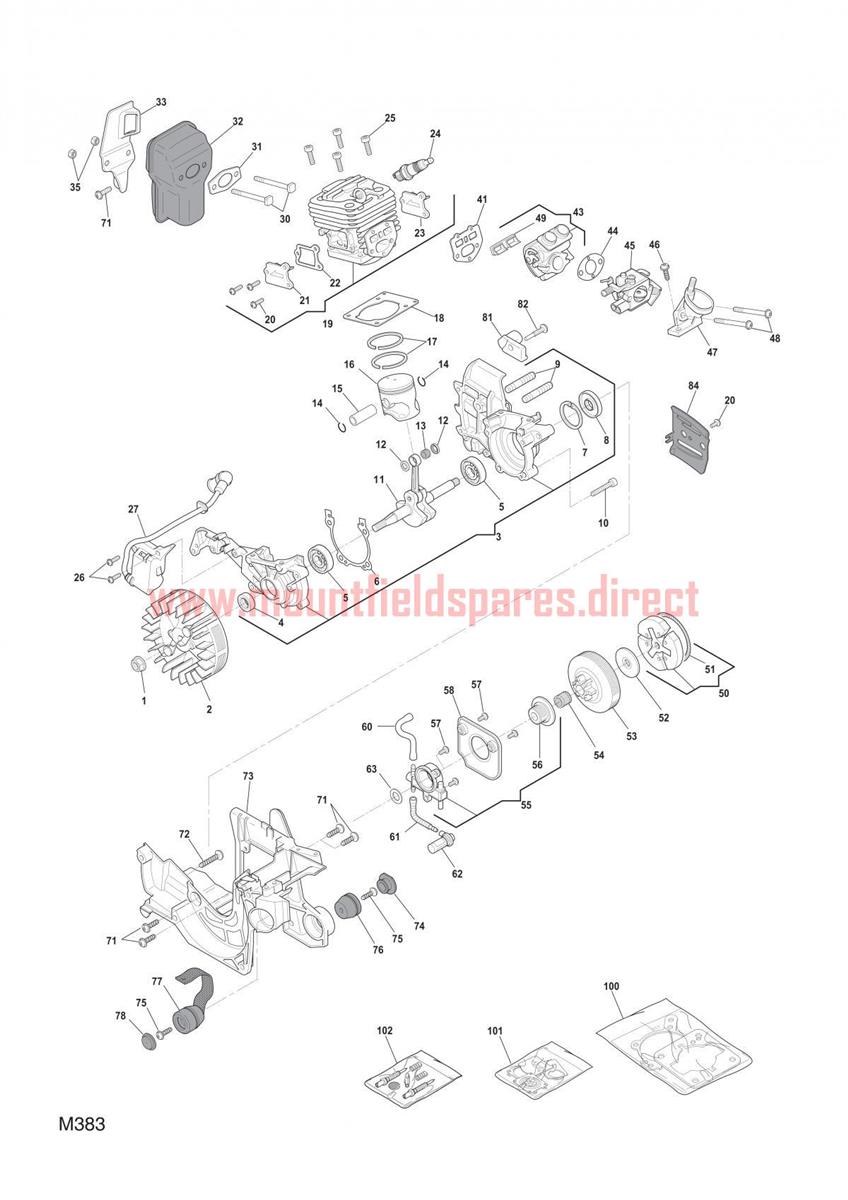

ENGINE assembly details for Mountfield MC401 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6995173	Nut	£4.01	Add to
002	6995289	FLYWHEEL ASSY	£38.73	Add to
003	6995281	Crankase Ass.Y	£112.16	Add to
004	6995278	Seal Ring	£8.23	Add to
005	6995277	Bearing	£8.23	Add to
007	6995255	Elastic Ring	£4.01	Add to
008	6995257	Seal Ring	£7.14	Add to
009	6995028	STUD	£2.74	Add to
010	6995276	Screw	£4.01	Add to
011	6995314	Crankshaft	£100.38	Add to
012	6995265	Washer	£8.27	Add to
013	6995304	Bearing	£12.39	Add to
014	6995256	PISTON PIN CIRCLIP	£1.79	Add to
015	6995313	PISTON PIN	£25.47	Add to
016	6995287	PISTON 848C5041A1 -RIC	£30.17	Add to
017	6995258	PISTON RING	£19.22	Add to
019	6995284	CYLINDER ASSEMBLY	£191.06	Add to
020	6995259	Screw	N/A	POA
021	6995320	Cover	£6.58	Add to
022	6995322	Gasket	£5.80	Add to
023	6995321	Cover	£6.58	Add to
024	3210024	SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A	£4.52	Add to
025	6995319	Screw	£4.01	Add to
026	6995261	Screw	N/A	POA
027	6995290	Electronic Coil	N/A	POA
030	6995293	Screw	N/A	POA
032	6995292	Muffler Assy	N/A	POA
033	6995294	Deflector	N/A	POA
035	6995064	Nut	£4.01	Add to
043	6995285	KZ ASS.SEPARATORE ASP. 848C501401 -R	£56.21	Add to
045	6995291	CARBURETTOR	£170.61	Add to
046	23878013/0	Screw	N/A	POA
047	6995267	Air Manifold	N/A	POA
048	6995271	Screw	N/A	POA
049	6995323	Gasket	N/A	POA
050	6995282	Clutch Ass.Y	N/A	POA
051	6995272	Spring	N/A	POA
052	6995266	Sprocket Washer	N/A	POA
053	6995269	CLUTCH DRUM	£41.16	Add to
054	6995230	NEEDLE BEARING	£8.60	Add to
055	6995311	Oil Pump Assy	N/A	POA
056	6995270	Female Screw	N/A	POA
058	6995305	Cover Pump	N/A	POA
060	6995295	TUBE	£4.10	Add to
061	6995280	KZ ASS.TUBO PESCANTE OLIO 848C306732	£15.92	Add to
062	6995296	KZ ASS.FILTRO PESC.OLIO T2100-23200	£10.33	Add to
063	6995223	Washer	£4.01	Add to
071	6995062	Screw	£4.01	Add to
072	6995002	Screw	£4.01	Add to
073	6995297	Crankase Ass.Y	N/A	POA
074	6995068	CAP	£3.49	Add to
075	6995253	Screw	N/A	POA
076	6995038	SHOCK ABSORBER	£13.49	Add to
077	6995303	KZ ASS.GOMMINO ANTIVIB. T2100-35200	£14.18	Add to
078	6995274	Cap	N/A	POA
081	6995279	Chain Guard	N/A	POA
082	6995262	Screw	N/A	POA
084	6995263	Plate	N/A	POA
100	6995283	GASKET KIT	£18.27	Add to
101	6995315	KIT MEMBRANE CARB. 848C500620-NLA	£18.27	Add to
102	6995288	KZ KIT RIPARAZIONE CARB. 848C500630	£56.99	Add to
