CRANKCASE CHAIN BRAKE

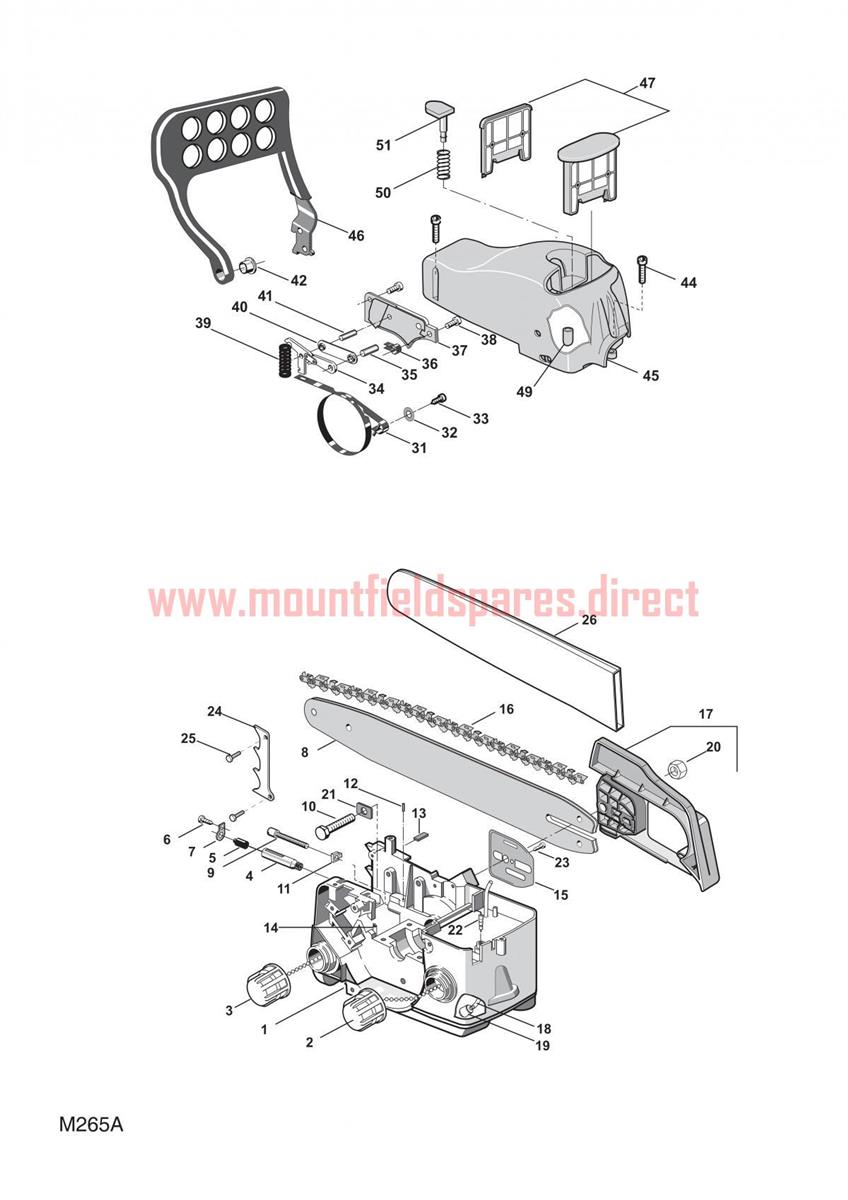

CRANKCASE CHAIN BRAKE assembly details for Mountfield MC382 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00183057002/0Crankase£179.59 Add to
0024252630OIL CAP ASSY£13.91 Add to
0044252220OIL PUMP£35.71 Add to
0053744790SPACER£4.66 Add to
0062123020Screw£4.01 Add to
0073614810PUMP BRAKE RUBBER BLADE 390£2.00 Add to
008323900107/0GUIDE BAR 16" P= .325" 1.3mm£50.70 Add to
0092653470CHAIN TIGHTENER SCREW£1.79 Add to
01023878001/0Screw£4.01 Add to
0113641970PLUG£4.52 Add to
0123741360Cap For Oil Delivery£5.66 Add to
0133614930Insert£6.58 Add to
0144353090/1Tube Ass.Y For Oil Breather£6.20 Add to
01523311002/0Plate£10.45 Add to
0161519-9002-64CHAIN B64 (0.325"-0.050")£59.99 Add to
0174252593CLUTCH HOUSING [RED]£34.35 Add to
0183786050FUEL LINE£5.73 Add to
0194253290FUEL INTAKE FILTER£12.68 Add to
0202670270CLUTCH CASE BAR NUT ES360700£3.15 Add to
02123650100/0Bar Screw Support£6.58 Add to
0224253680BREATHER VALVE ASSEMBLY£4.52 Add to
0232123060SELF-THREAD SCREW£1.79 Add to
02423026000/0Spike£12.98 Add to
0252123100SCREW M4 8 x 13£1.79 Add to
0264181307CHAIN COVER 16"£6.42 Add to
0313614740BRAKE BAND£7.92 Add to
0322312100FLAT WASHER D=4X12X1,5£1.79 Add to
0344252310CHAIN BRAKE LEVER£17.04 Add to
0353180500Roller 5X19,8£4.01 Add to
0363614780Spring£7.19 Add to
0373750117BRAKE COVER [GREY]£9.85 Add to
0393654420Spring£7.19 Add to
0403614490BRAKE BLADE PLATE£2.74 Add to
0413180510Roller 6X21,8£4.01 Add to
0423614330Bush£7.19 Add to
0442123030TORX SELF-THREAD SCREW£1.79 Add to
0454252613ASS.COPRICILINDRO 370410 ROSSO£33.53 Add to
0464563770HAND GUARD£27.27 Add to
0478781610AIR FILTER£14.05 Add to
0493750450PRIMER BUTTON£2.87 Add to
0503654430SPRING£1.79 Add to
0513750440AIR PURGE BUTTON£3.69 Add to
