STARTER

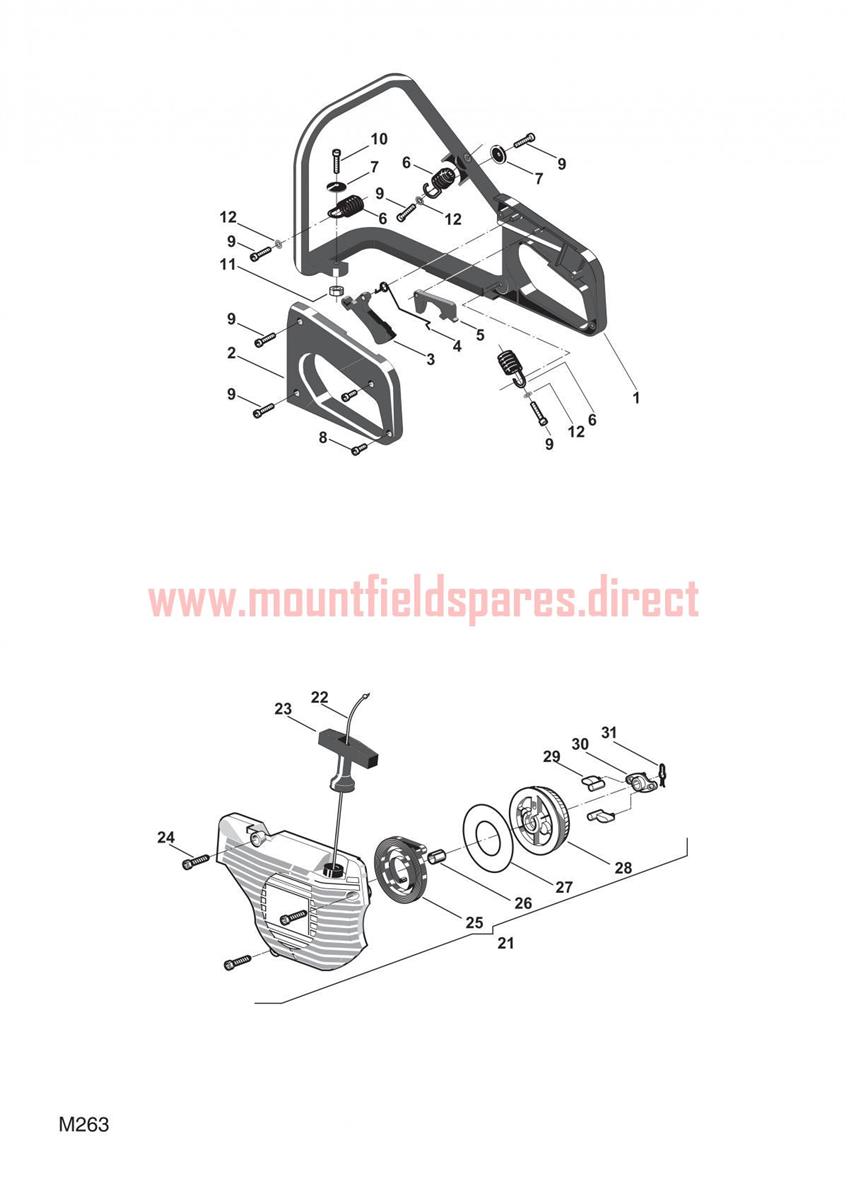

STARTER assembly details for Mountfield MC363 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	4563147	Handle	£99.62	Add to
002	4563157	Handle Cover	£11.90	Add to
003	3743587	THROTTLE LEVER	£3.83	Add to
004	3654440/1	SPRING	£5.86	Add to
005	3743597	SAFETY LEVER	£2.06	Add to
006	3654400	SPRING	£6.69	Add to
007	3614800	Washer	£4.01	Add to
008	2123100	SCREW M4 8 x 13	£1.79	Add to
009	2123031	Screw	£4.01	Add to
010	2135040	TORX SCREW M5 x 18	£1.79	Add to
011	2432040	NUT M5	£1.79	Add to
012	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
021	4252343	Carter Assy Red	£71.51	Add to
022	3784030	RECOIL ROPE	£2.47	Add to
023	3750067	STARTER HANDLE	£2.74	Add to
024	2123030	TORX SELF-THREAD SCREW	£1.79	Add to
025	4611480	STARTER SPRING	£9.00	Add to
026	3623590	STARTING CASE BUSHING VIP	£1.79	Add to
027	3723640	SPRING DISC	£4.52	Add to
028	3750130	STARTING PULLEY 360370390410	£4.78	Add to
029	3750080	STARTER HOOK (OBSOLETE)	N/A
030	3750140	STARTER HOOK GUIDE	£3.69	Add to
031	3657480	Retainer	£4.01	Add to
