CHAIN BRAKE

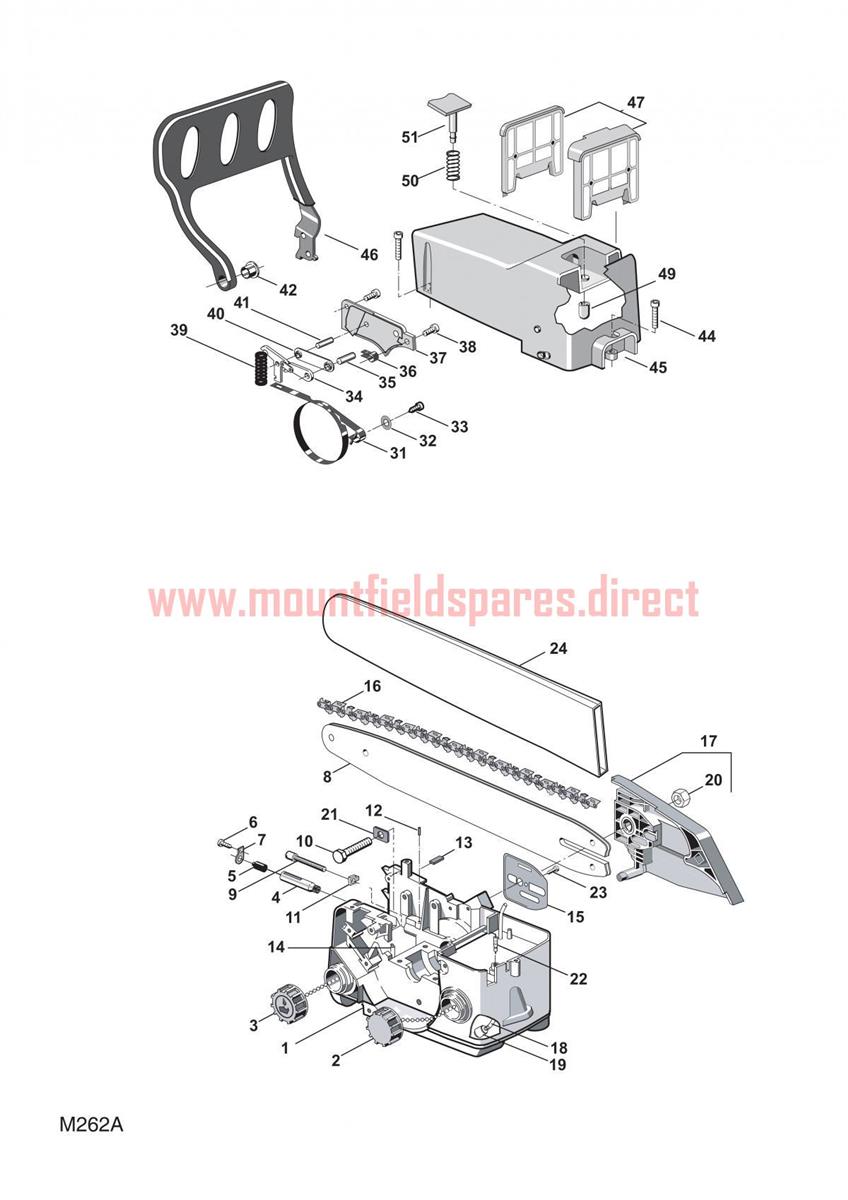

CHAIN BRAKE assembly details for Mountfield MC363 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00183057002/0Crankase£179.59 Add to
0024252630OIL CAP ASSY£13.91 Add to
0044252220OIL PUMP£35.71 Add to
0053744790SPACER£4.66 Add to
0062123020Screw£4.01 Add to
0073614810PUMP BRAKE RUBBER BLADE 390£2.00 Add to
008123900205/0GUIDE BAR 14" Pitch 3/8"£26.18 Add to
0092653470CHAIN TIGHTENER SCREW£1.79 Add to
01023878001/0Screw£4.01 Add to
0113641970PLUG£4.52 Add to
0123741360Cap For Oil Delivery£5.66 Add to
0133614930Insert£6.58 Add to
0144353090/1Tube Ass.Y For Oil Breather£6.20 Add to
01523311002/0Plate£10.45 Add to
0161519-9001-50CHAIN 14"-50E Pitch 3/8" Width 0.050"£30.88 Add to
0174252333CARTER.EMBRAYAGE ROUGE (+20£27.63 Add to
0183786050FUEL LINE£5.73 Add to
0194253290FUEL INTAKE FILTER£12.68 Add to
0202670270CLUTCH CASE BAR NUT ES360700£3.15 Add to
02123650100/0Bar Screw Support£6.58 Add to
0224253680BREATHER VALVE ASSEMBLY£4.52 Add to
0232123060SELF-THREAD SCREW£1.79 Add to
0244181297CHAIN COVER 14"£2.47 Add to
0313614740BRAKE BAND£7.92 Add to
0322312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0344252310CHAIN BRAKE LEVER£17.04 Add to
0353180500Roller 5X19,8£4.01 Add to
0363614780Spring£7.19 Add to
0373750117BRAKE COVER [GREY]£9.85 Add to
0382123100SCREW M4 8 x 13£1.79 Add to
0393654420Spring£7.19 Add to
0403614490BRAKE BLADE PLATE£2.74 Add to
0413180510Roller 6X21,8£4.01 Add to
0423614330Bush£7.19 Add to
0442123030TORX SELF-THREAD SCREW£1.79 Add to
0454252353CAPOT CYLINDRE ROUGE£32.03 Add to
0464563267HAND GUARD 2008£39.13 Add to
0478781530AIR FILTER£13.08 Add to
0493750227PRIMER 360/390 G£1.79 Add to
0503654430SPRING£1.79 Add to
0513750217PRIMER LEVER£1.79 Add to
