CARBURETTOR

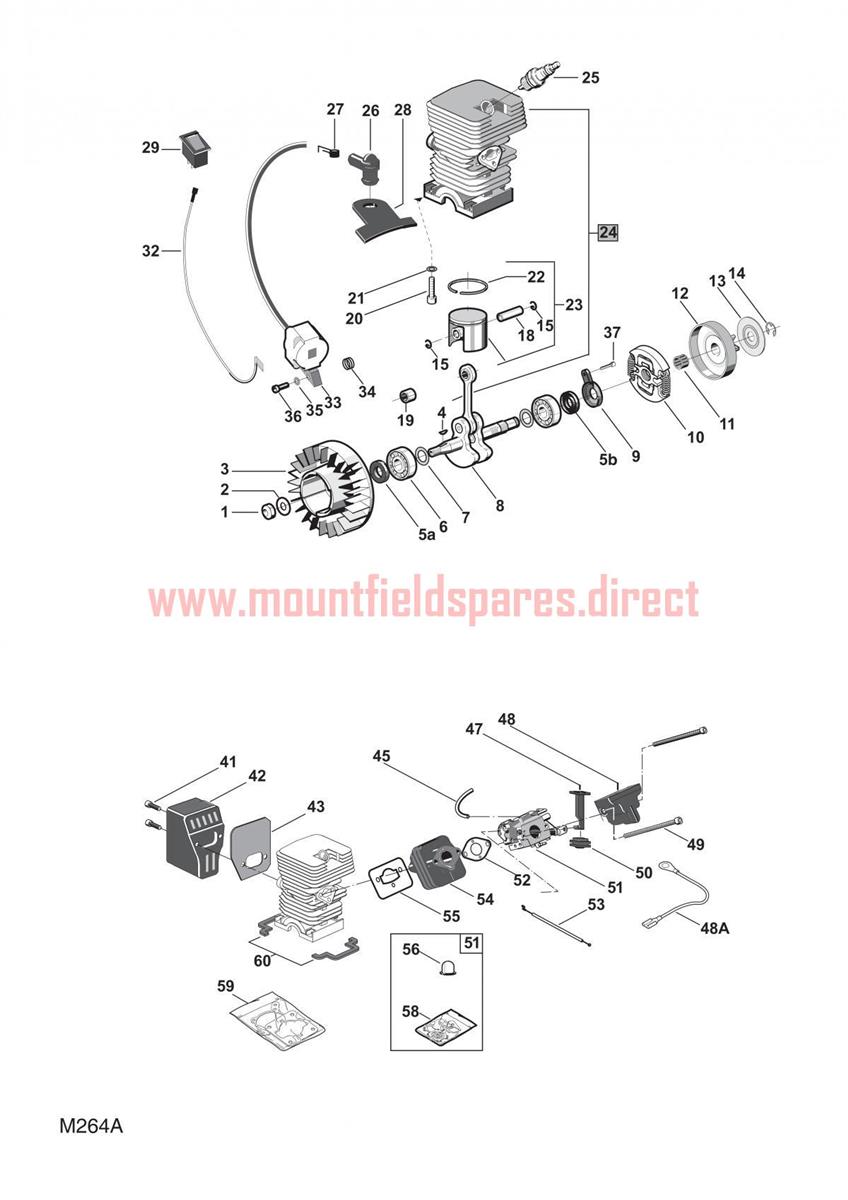

CARBURETTOR assembly details for Mountfield MC363 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	2432050	Nut	£4.01	Add to
002	2312080	Washer	£4.01	Add to
003	4541210/1	FLYWHEEL	£77.08	Add to
004	3151010	FLYWHEEL KEY 2.5 x 3.7 x 8.6 x 70	£1.79	Add to
006	3112030	BEARING 6201 C3	£15.41	Add to
007	3614480	Washer	£4.01	Add to
008	4251960/1	Crankshaft(+19)	£213.14	Add to
009	3750311	GREY OIL PUMP COVER 370410	£2.06	Add to
010	4252200/1	Clutch Assy	£40.44	Add to
011	3114190	NEEDLE BEARING	£8.04	Add to
012	4121208	CLUTCH SPROCKET	£17.59	Add to
013	3612620	PINION WASHER (OBSOLETE) (OBSOLETE)	N/A
014	112000955/0	CIRCLIP D=8	£1.79	Add to
015	3356050	CIRCLIP	£1.79	Add to
018	3158260	PISTON PIN 8 x 29	£4.59	Add to
019	3116100	NEEDLE BEARING 8 x 12 x 10	£7.92	Add to
020	2135030	TORX SCREW M5 x 20	£1.79	Add to
021	2330020	GROWER WASHER D.5	£1.79	Add to
022	3123220	PISTON RING D=39	£5.60	Add to
023	8541360/1	Piston Assy D.39 (Incl. 15,18,22)	£66.18	Add to
024	8541370/1	Cylinder-Piston Assy D.39	£182.81	Add to
025	3210024	SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A	£4.52	Add to
026	3748880	SPARK PLUG CAP	£2.47	Add to
027	3657050	SPARK PLUG SPRING	£3.83	Add to
028	3721530	Protection	£6.58	Add to
029	118800202/0	EXTINCTION SWITCH	£2.18	Add to
032	3211380	Earth Cable	£5.66	Add to
033	3L3211350/1	IGNITION COIL	£106.58	Add to
034	3654480	SPRING	£1.79	Add to
035	2321150	Washer	£4.01	Add to
036	2123140	Screw	£4.01	Add to
037	2123020	Screw	£4.01	Add to
041	2135040	TORX SCREW M5 x 18	£1.79	Add to
042	4122040	MUFFLER ASS.Y 360410	£39.80	Add to
043	3724270	MUFFLER GASKET	£4.52	Add to
045	3786130	Tube (OBSOLETE) (OBSOLETE)	N/A
047	3743407	Choke Lever	N/A	POA
048	8744781	INTAKE MANIFOLD	£38.44	Add to
049	2135210	TORX SCREW M5 x 75 (OBSOLETE) (OBSOLETE)	N/A
050	3745650	Grommet	£7.19	Add to
051	23054003/2	Carburettor	£104.30	Add to
052	3724160	Gasket	£7.19	Add to
053	4252480	ACCELLERATOR CABLE 360410	£6.95	Add to
054	3750180	INTAKE MANIFOLD 360390	£13.64	Add to
055	3724300	Gasket	£5.66	Add to
056	3744740	PRIMER BULB (OBSOLETE) (OBSOLETE)	N/A
058	8724091	DIAPHRAGM GASKET SET	£18.82	Add to
059	8724300	GASKET SET	£16.91	Add to
05a	3121071	SEAL RING 12 x 22 x 5.5	£5.19	Add to
05b	3121072	SEAL RING 12 x 22 x 5.5	£8.73	Add to
060	3721560	CYLINDER BASE WASHER CS 360-410	£2.47	Add to
48A	3211690	Earth Cable	£5.66	Add to
