24V chainshaw

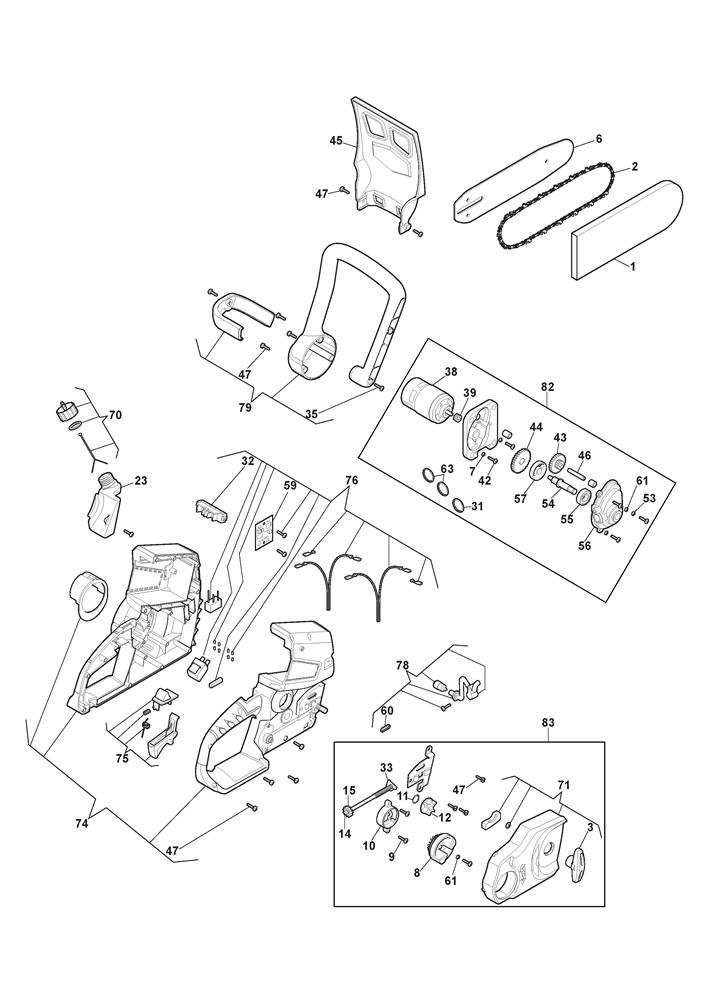

24V chainshaw assembly details for Mountfield MC 24 LI (274100123/M18) 2018 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001323085000/0CHAIN COVER 270£21.67 Add to
0021519-9110-03STIGA Chain loop N1C-BL-040E£14.58 Add to
006123900360/0GUIDE BAR 10" Pitch 3/8"£34.35 Add to
007112581500/0WASHER M5£2.06 Add to
008118803434/0ADJUSTMENT KNOB [YELLOW]£5.46 Add to
008118803434/0ADJUSTMENT KNOB [YELLOW]£5.46 Add to
009112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
0113353050CIRCLIP D10£2.00 Add to
012118810453/0SPROCKET (OBSOLETE) (OBSOLETE)N/A
014118810613/0GEAR SHAFT£3.15 Add to
015118803297/0ADJUSTMENT GEAR£1.79 Add to
023118810591/0OIL TANK£4.11 Add to
031118810651/0RING£1.79 Add to
032118810517/0CONNECTOR BLOCK£5.12 Add to
033118810585/0TENSIONING PLATE£2.06 Add to
038118810638/0MOTOR£41.17 Add to
039118810587/0PRIMARY DRIVE GEAR£5.73 Add to
042112727790/0CHEESE-HEAD SCREW M5 x 10£2.06 Add to
043118810622/0DUPLEX GEAR£5.45 Add to
044118810623/0SECONDARY DRIVE GEAR£7.10 Add to
045118810590/0FRONT HANDLE GUARD£6.14 Add to
046118810582/0SECONDARY DRIVE GEAR SHAFT£3.69 Add to
047112728523/0SELF-TAPPING SCREW TCB 4 x 12£2.06 Add to
053118810616/0SPRING WASHER£3.64 Add to
054118810620/0OUTPUT SHAFT£6.27 Add to
055118804136/0BEARING 606-2RS£5.54 Add to
056118810578/0GEAR BOX COVER£12.27 Add to
057118810588/0OIL PUMP CAM£3.41 Add to
059118810565/024V PCB BOARD£43.30 Add to
060118810607/0OIL PUMP ASSY£11.18 Add to
070118810608/0OIL CAP ASSEMBLY [BLACK]£2.59 Add to
071118810603/0SIDE COVER ASSEMBLY£10.77 Add to
071118810642/0SIDE COVER ASSY£10.77 Add to
074118810643/0HOUSING ASSY CS24V - STIGA YELLOW£39.80 Add to
075118810605/0SWITCH ASSY£5.46 Add to
075118810646/0SWITCH ASSY£5.46 Add to
076118810606/0SHELL INSERTING SEAT ASSY£62.97 Add to
078118810607/0OIL PUMP ASSY£11.18 Add to
079118810609/0THE AUXILIARY HANDLE ASSY£15.27 Add to
082118810755/0MOTOR AND GEAR CASE ASSY CS24V£87.07 Add to
083118810756/0CLUTCH COVER ASSY CS24V£28.90 Add to
