Body Work

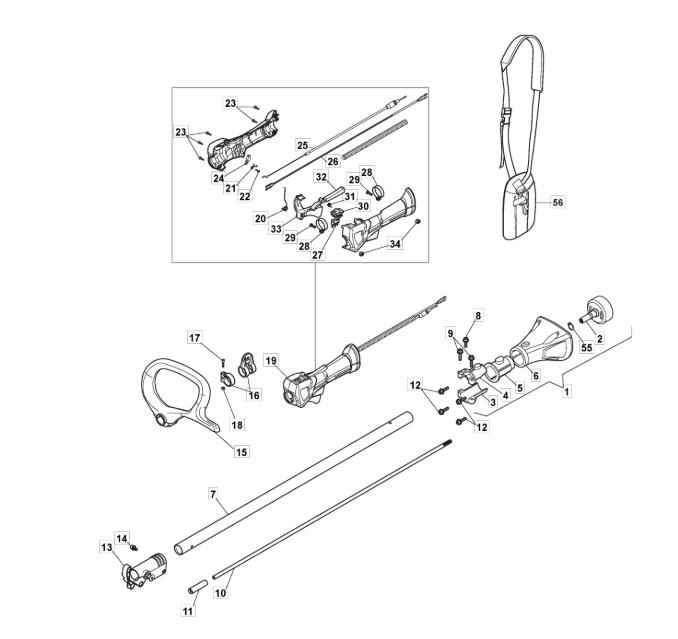

Body Work assembly details for Mountfield MM2605 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118803136/0TRANSMISSION HUB ASSEMBLY£36.69 Add to
002118802094/0CLUTCH DRUM£13.77 Add to
004118803138/0UPPER SUPPORT PLATE£4.11 Add to
005118803139/0SHAFT CONNECTOR£3.69 Add to
006322055257/0TRANSMISSION HUB£14.34 Add to
007118803192/0LONG TRANSMISSION PIPE£13.77 Add to
010118803141/0LONG TRANSMISSION DRIVE SHAFT 26cc£13.91 Add to
011118803142/0SHAFT CONNECTOR£2.18 Add to
0122135150TORX SCREW M6 x 23£1.79 Add to
013118802099/0SHAFT CONNECTOR ASSEMBLY£17.72 Add to
0142135180TORX SCREW M5 x 12£1.79 Add to
015118803194/0FRONT HANDLE [GREY]£21.40 Add to
015118804211/0FRONT LOOP HANDLE [RED]£22.76 Add to
016118801182/0HARNESS SUPPORT SET£2.00 Add to
018112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
019118805302/0CONTROL HANDLE ASSEMBLY£26.18 Add to
020118803151/0SWITCH SPRING£1.79 Add to
021118803152/0SWITCH STOP SPRING£2.00 Add to
023112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
024118803153/0SWITCH PART (OBSOLETE)N/A
025118803144/1HANDLE ASSEMBLY [YELLOW]£21.95 Add to
026118803155/0STOP CABLE 26cc£4.35 Add to
027118803145/0SWITCH£4.18 Add to
028118803146/0RING CLAMP£1.79 Add to
030118803147/0ON/OFF SWITCH [RED]£1.79 Add to
031118803148/0SPRING£1.79 Add to
032118803149/0SAFETY SWITCH [YELLOW]£1.79 Add to
033118803150/0THROTTLE TRIGGER£1.79 Add to
034118804189/0THREADED INSERT (OBSOLETE) (OBSOLETE)N/A
055112609200/0CIRCLIP D=15£2.06 Add to
056118804016/0SINGLE HARNESS£19.90 Add to
