Trnasmission

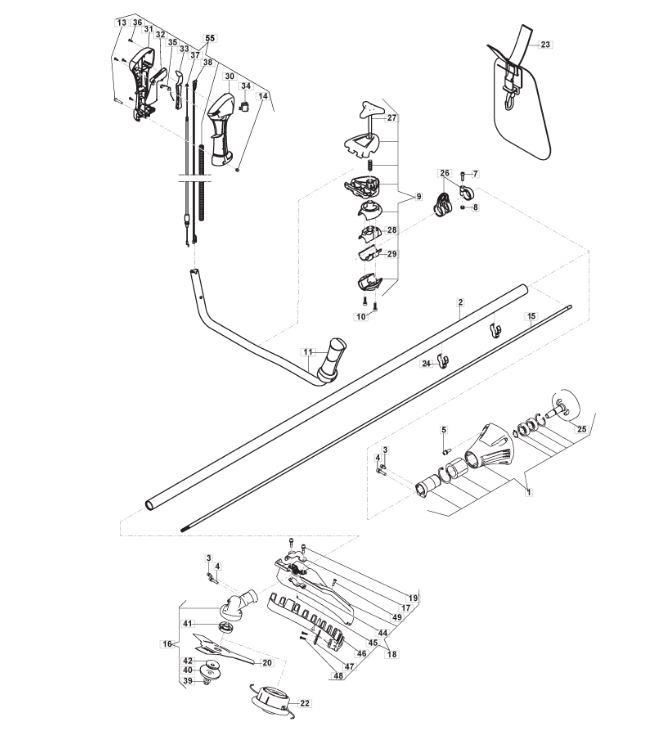

Trnasmission assembly details for Mountfield MB33D 2017 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001118804001/0TRANSMISSION SUPPORT D=26£42.91 Add to
002118803960/0TRANSMISSION PIPE D=26£38.81 Add to
0036981145SCREW (OBSOLETE)N/A
0042132180SCREW TCCE M6 x 25£1.79 Add to
005112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
007112760475/0SCREW TC M5 x 20£2.06 Add to
008112291000/0HEXAGON NUT M5£2.06 Add to
009118803209/0ADJUSTER SUPPORT KIT£17.35 Add to
010112727801/0SCREW TCB TORX M6 x 20£2.06 Add to
011118803210/0LEFT HANDGRIP£16.38 Add to
0132135120SCREW TX M5 x 40£1.79 Add to
014112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
015118804042/0TRANSMISSION SHAFT£37.25 Add to
016118801184/0GEAR CASE ASSEMBLY£67.05 Add to
017118804054/0PLASTIC PROTECTION GUARD D26£2.87 Add to
018118803954/1SAFETY COVER ASSY£25.35 Add to
0192132180SCREW TCCE M6 x 25£1.79 Add to
020118801125/0BLADE 3 TEETH 1.4 x 255mm£9.85 Add to
022118801124/0NYLON HEAD ASSEMBLY 2.4 x 5M£13.17 Add to
023118804015/1DOUBLE HARNESS£39.80 Add to
024118804066/0THROTTLE LINE CLAMP£1.50 Add to
025118804037/0CLUTCH DRUM£14.45 Add to
026118801182/0HARNESS SUPPORT SET£2.00 Add to
027118804062/0KNOB£2.87 Add to
028118804017/0HANDLE SUPPORT£20.90 Add to
030118803982/0LEFT HANDLE - RED£4.10 Add to
031118803983/0RIGHT HANDLE - RED£4.10 Add to
032118803221/0THROTTLE TRIGGER£1.79 Add to
033118803219/0SAFETY LEVER£1.79 Add to
034118803213/0ON/OFF SWITCH£2.06 Add to
035118803220/0SAFETY SPRING£2.00 Add to
036112727810/0SELF-TAP SCREW 3.5 x 13£2.06 Add to
037118804955/0HANDLE ASSEMBLY [YELLOW]£23.31 Add to
038118803217/0STOP CABLE 26cc£2.06 Add to
0392452090LEFT SELF-LOCKING NUT£5.73 Add to
040118803206/0GEAR CASE DUST COVER£3.83 Add to
041118804043/0UPPER RING NUT(now replaces spacer)£4.64 Add to
042118803205/0LOWER BLADE WASHER£3.89 Add to
044118804058/0LOWER PROTECTION GUARD PLATE£2.14 Add to
045112727815/0SCREW 8P x 3/8£1.79 Add to
046118803954/1SAFETY COVER ASSY£25.35 Add to
047118804056/0LINE CUTTER BLADE£2.18 Add to
0486981149SCREW£4.01 Add to
049112728903/0SCREW£1.69 Add to
055118804955/0HANDLE ASSEMBLY [YELLOW]£23.31 Add to
