Engine

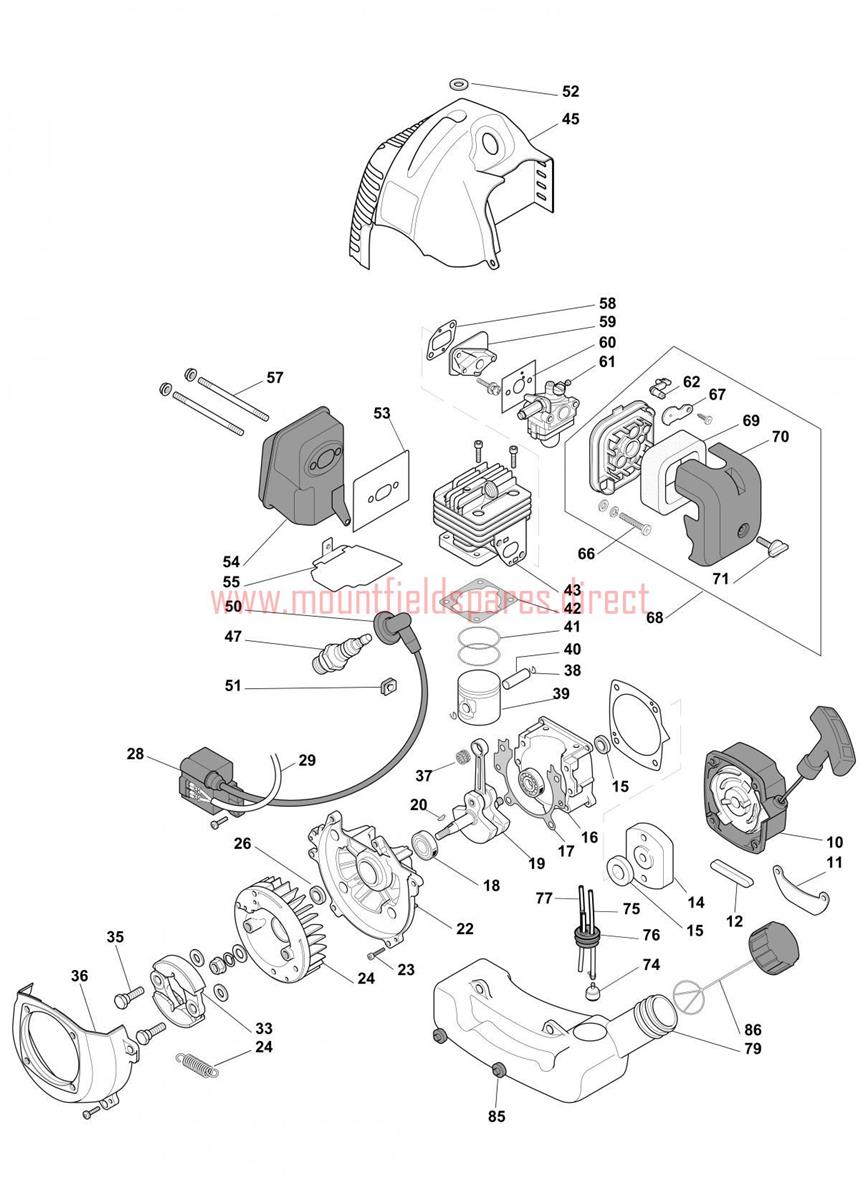

Engine assembly details for Mountfield BJ345F 2011 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
010183058042/0STARTER CRANKCASE ASS.Y 1E36F-2C.3£38.44 Add to
011123784011/0Engine SupportN/A POA
012123275034/0GrommetN/A POA
014183082004/0STARTER CUP ASSEMBLY£6.42 Add to
015119035159/0OIL SEAL£1.79 Add to
016123685028/0Crank CaseN/A POA
017123280087/0GUARNIZIONE CARTER MOT. 1E40F-5.8-4 -RIC£2.18 Add to
018114215218/0Ball Bearing£7.48 Add to
019123020034/0ALBERO MOTORE 1E40F-5.4.1 -RIC£52.06 Add to
020123072002/0FLYWHEEL KEY£1.79 Add to
022123685029/0Crank CaseN/A POA
023123878126/0ScrewN/A POA
024123880019/0MAGNET FLYWHEEL 1E40F-5.3.2£18.82 Add to
026119035166/0Seal RingN/A POA
028123044019/0IGNITION COIL£35.83 Add to
029123065046/0Spark Plug CableN/A POA
032123430611/0SpringN/A POA
033123400003/0Clutch UnitN/A POA
035123878058/0SCREW£2.18 Add to
036123208423/0Transm.Support CaseN/A POA
037123235010/0NEEDLE BEARING 1E40F-5.4-2£3.15 Add to
038123202010/0LOCK RING 1E40F-03.02.01£1.79 Add to
039123590014/0PISTON 1E40F-5.4-1£7.36 Add to
040123760008/0PISTON PIN 1E46FP-3Z.3-5£2.06 Add to
041123204017/0PISTON RING 1E40FP-3Z.3-5£2.74 Add to
042123280088/0GUARNIZIONE CILINDRO 1E40F-5-6 -RIC£2.00 Add to
043123071025/0CYLINDER 1E40F-5-4£47.97 Add to
044123878128/0ScrewN/A POA
045123087030/0Cylinder Cover RedN/A POA
0473210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
050123053005/0Spark Plug CoverN/A POA
051123275023/0GROMMET£1.79 Add to
052123280090/0GasketN/A POA
053123280089/0GasketN/A POA
054183740023/0MUFFLER ASS.Y 1E40F-HS.2£14.73 Add to
055123600088/0Muffler ShieldN/A POA
057123878127/0Double-Screw BoltN/A POA
058123280085/0GUARNIZIONE COLL.-CILINDRO 1E40F-5-2-RIC£1.79 Add to
059123073520/0COLLETTORE ASPIRAZIONE 1E40F-5A.2 -RIC£7.57 Add to
060123280086/0GASKET 1E40F-5A-1£2.00 Add to
061123054037/0CARBURETTOR 1E40F-5A-YAT.4£44.09 Add to
062123315089/0CHOKE LEVER£1.79 Add to
0662132160ScrewN/A POA
067123190000/0CHOKE£1.79 Add to
068183220003/0AIR FILTER ASSY£10.36 Add to
069123220011/0AIR FILTER£3.96 Add to
070123090034/0Air Cleaner CoverN/A POA
071123878056/0SCREW£1.79 Add to
072123275021/0GROMMET£1.79 Add to
074183520005/0INTAKE FILTER£3.69 Add to
075123867032/0FUEL PIPE£1.79 Add to
077123867031/0FUEL PIPE£6.55 Add to
079123733007/0SERBATOIO MIX 1E40F-HS.5.1 -RIC£9.39 Add to
086183790009/0FUEL CAP£3.15 Add to
