TR29S TRANSM

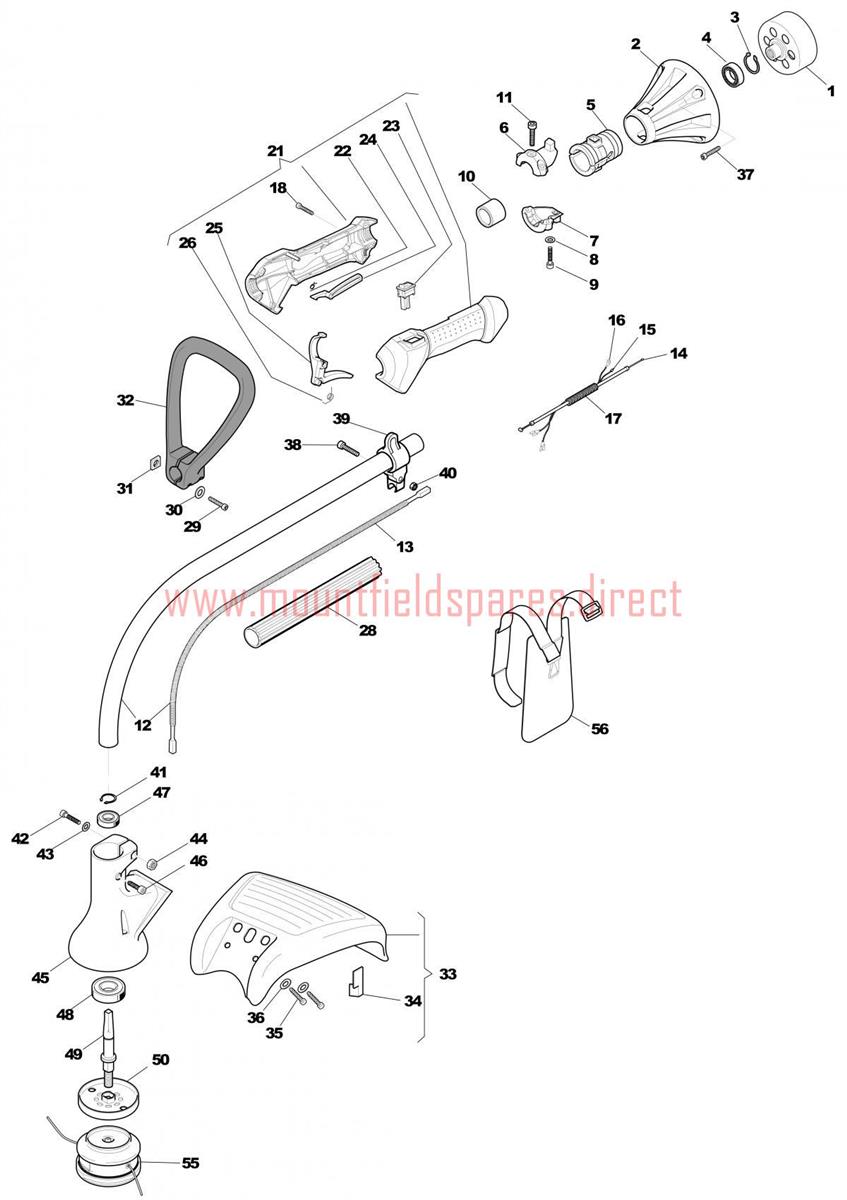

TR29S TRANSM assembly details for Mountfield MT 2501 2010 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001383050005/0Drum Ass'Y, ClutchN/A POA
002323782006/0TRANSMISSION SUPPORT DC BC 29S£22.05 Add to
0033353080CIRCLIP D=32mm£1.79 Add to
0043112170Bearing (OBSOLETE)N/A
005323275018/0GROMMET£4.52 Add to
006323720002/0UPPER CLAMP D=26£2.87 Add to
007323720003/0LOWER STIRRUP TUBE FIXING TR D=26£4.91 Add to
0082370050KNURLED WASHER D.5£1.79 Add to
0092135030TORX SCREW M5 x 20£1.79 Add to
010323044218/0Bushing£5.21 Add to
0112135010TORX SCREW M5 x 14 - NLA£1.79 Add to
012383869066/0Trans.Pipe AssyN/A POA
01323020008/0Trans.Shaft Assy£34.20 Add to
014123066016/0ACCELERATOR CABLE£7.36 Add to
01523065000/0SWITCH-COIL CABLE 2009£6.53 Add to
01623065014/0Earth Cable£6.58 Add to
01723290000/0WIRE SHEATH 2009£5.78 Add to
018123878055/0Screw£4.01 Add to
021383300020/0HANDLE ASSEMBLY£26.18 Add to
0223654300SPRING£1.79 Add to
023118800202/0EXTINCTION SWITCH£2.18 Add to
024323315075/0SAFETY LEVER£3.40 Add to
025323315074/0THROTTLE LEVER RED (OBSOLETE) (OBSOLETE)N/A
0263654270/1Spring£4.60 Add to
02823170000/0FRONT HANDLE SPACER TR 1000 2009£5.58 Add to
0292135050TORX SCREW M5 x 30£1.79 Add to
0302312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0312461030SQUARE NUT M5 x 10 x 6£1.79 Add to
03223300000/0Front Handle£9.54 Add to
03383465001/0SAFETY COVER ASS.Y 2009£42.11 Add to
0343614640WIRE CUTTER TR 1000£3.83 Add to
0352123030TORX SELF-THREAD SCREW£1.79 Add to
0362312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0372132110SCREW TCCE M6 x 16£1.79 Add to
0382135040TORX SCREW M5 x 18£1.79 Add to
03923780000/0Harness Support£5.66 Add to
0402412030NUT M5 x 5 x 8£1.79 Add to
041112608600/0CIRCLIP D=12£2.08 Add to
0422135150TORX SCREW M6 x 23£1.79 Add to
0432312010FLAT WASHER 6.4 x 12 x 1.6£1.79 Add to
0442412020Nut£4.01 Add to
04523056302/0Gear Case£18.49 Add to
0462123100SCREW M4 8 x 13£1.79 Add to
04719216037/0Bearing£13.84 Add to
0483112280BALL BEARING 6001 2RS£5.92 Add to
04923020005/0Head Shaft£32.01 Add to
0503L3614630/1RING NUT (TR 1100 GEAR CASE)£7.78 Add to
05523155001/12 Hedges Nylon Head£25.97 Add to
0564253460SINGLE HARNESS£17.27 Add to
