Handle-transmission

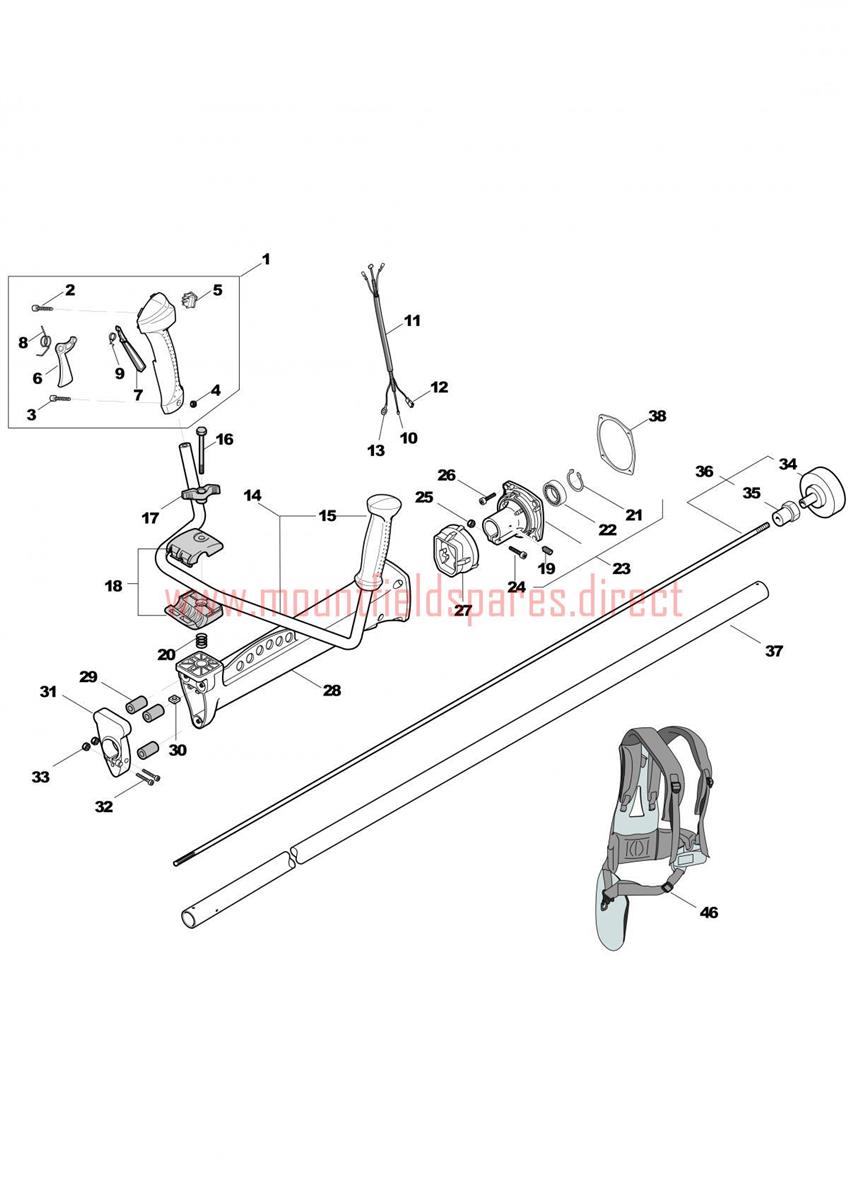

Handle-transmission assembly details for Mountfield MB5102 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001383300021/0HANDLE ASSEMBLY£28.90 Add to
0022123030TORX SELF-THREAD SCREW£1.79 Add to
0032135050TORX SCREW M5 x 30£1.79 Add to
004112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
005118800202/0EXTINCTION SWITCH£2.18 Add to
006323315083/0THROTTLE LEVER [RED]£2.00 Add to
007323315084/0SAFETY LEVER [RED]£5.87 Add to
0083654270/1Spring£4.60 Add to
0093654280/1Spring£4.60 Add to
010123066021/0Wire Ass.YN/A POA
0113786220WIRE SHEATH£31.17 Add to
012123065031/0Coil-Switch Cable (Red)£5.63 Add to
013123065032/0Earth Cable (Black)£5.63 Add to
014383394009/0HANDLEBAR ASS.Y (OBSOLETE) (OBSOLETE)N/A
015323395053/0Left Knob (OBSOLETE) (OBSOLETE)N/A
0162112580SCREW£1.79 Add to
0173750480WING NUT£2.06 Add to
0188521070HAND GRIP SUPPORT£27.27 Add to
0192126050SCREW (OBSOLETE)N/A
0203654530SPRING£2.74 Add to
0213353080CIRCLIP D=32mm£1.79 Add to
0223112170Bearing (OBSOLETE)N/A
0238521000/1Transmission Hub Ass.Y 28N/A POA
0242135150TORX SCREW M6 x 23£1.79 Add to
0252432030NUT 25£1.79 Add to
0262135160SCREW TX M6 x 19£1.79 Add to
0273L3744330/1Rear Shock Absorber (OBSOLETE) (OBSOLETE)N/A
0283L4563850/2TRANSMISSION HOUSING£17.18 Add to
0293744320FRONT SHOCK ABSORBER£4.11 Add to
0303615190NUT DC 36D-55D£1.79 Add to
0314563861SUPPORT ANTERIEUR D.28£2.87 Add to
0322135060TORX SCREW M5 x 25£2.00 Add to
0343L4121861/1CLUTCH DRUM£21.40 Add to
0353642191BEARING HUB£2.00 Add to
0364251400TRANSMISSION SHAFT ASSY£50.22 Add to
0374251724Trasmission Pipe Ass.Y 28£170.28 Add to
038323208406/0FLANGE TRANSMISSION SUPPORT BC 43£2.32 Add to
041123046002/0Harness£81.56 Add to
