Handle-transmission

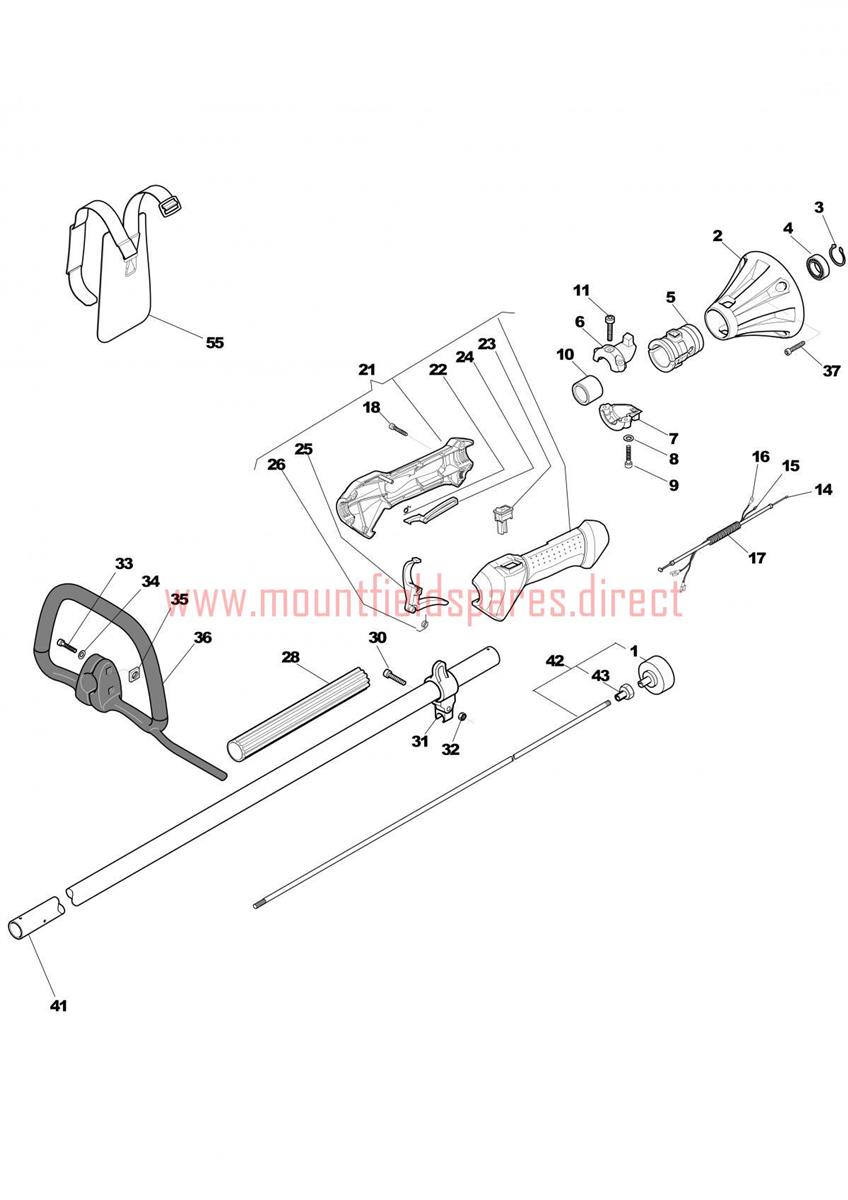

Handle-transmission assembly details for Mountfield MB5101 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0013L4121861/1CLUTCH DRUM£21.40 Add to
002323782007/0TRANSMISSION SUPPORT£12.77 Add to
0033353080CIRCLIP D=32mm£1.79 Add to
0043112170Bearing (OBSOLETE)N/A
005323275018/0GROMMET£4.52 Add to
006323720002/0UPPER CLAMP D=26£2.87 Add to
007323720003/0LOWER STIRRUP TUBE FIXING TR D=26£4.91 Add to
0082370050KNURLED WASHER D.5£1.79 Add to
0092135030TORX SCREW M5 x 20£1.79 Add to
010323044218/0Bushing£5.21 Add to
0112135010TORX SCREW M5 x 14 - NLA£1.79 Add to
014123066016/0ACCELERATOR CABLE£7.36 Add to
01523065000/0SWITCH-COIL CABLE 2009£6.53 Add to
01623065014/0Earth Cable£6.58 Add to
01723290000/0WIRE SHEATH 2009£5.78 Add to
018123878055/0Screw£4.01 Add to
021383300020/0HANDLE ASSEMBLY£26.18 Add to
0223654300SPRING£1.79 Add to
023118800202/0EXTINCTION SWITCH£2.18 Add to
024323315075/0SAFETY LEVER£3.40 Add to
025323315074/0THROTTLE LEVER RED (OBSOLETE) (OBSOLETE)N/A
0263654270/1Spring£4.60 Add to
02823170000/0FRONT HANDLE SPACER TR 1000 2009£5.58 Add to
0302135040TORX SCREW M5 x 18£1.79 Add to
03123780000/0Harness Support£5.66 Add to
0322412030NUT M5 x 5 x 8£1.79 Add to
0332135050TORX SCREW M5 x 30£1.79 Add to
0342312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0352461030SQUARE NUT M5 x 10 x 6£1.79 Add to
03623300001/0FRONT HANDLE 2009£30.54 Add to
0372132110SCREW TCCE M6 x 16£1.79 Add to
041383869069/0Trasmission Pipe Ass.YN/A POA
0424251400TRANSMISSION SHAFT ASSY£50.22 Add to
0433642191BEARING HUB£2.00 Add to
0514253460SINGLE HARNESS£17.27 Add to
