Engine

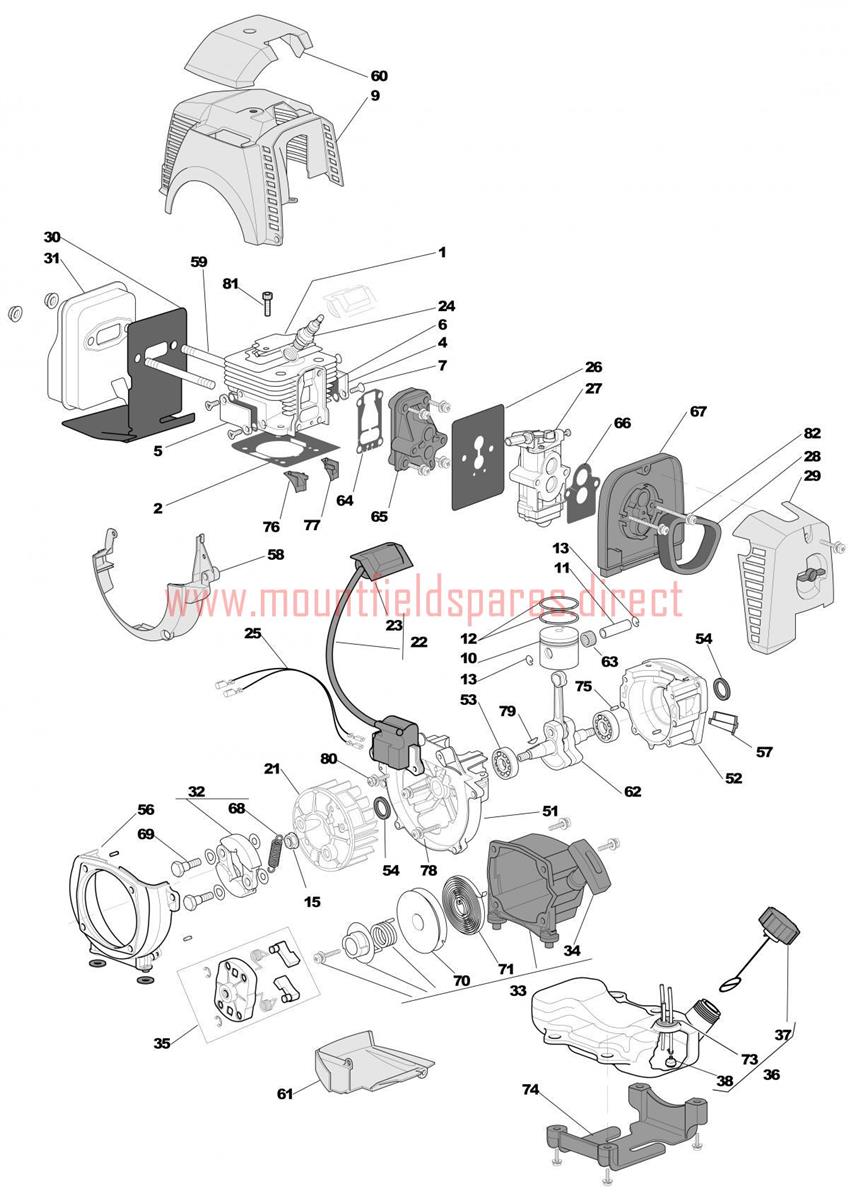

Engine assembly details for Mountfield MB5101 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001123071020/0CYLINDER£272.82 Add to
002123280051/0CYLINDER GASKET£5.87 Add to
004123109557/0Cover£8.52 Add to
005123109558/0Cover£8.52 Add to
006123280035/0GASKET£1.31 Add to
007123878054/0Screw£4.01 Add to
009323106030/0CYLINDER COVER RED£70.86 Add to
010123590011/0PISTON£46.61 Add to
011123760004/0PISTON PIN£12.82 Add to
012123204013/0PISTON RING£9.68 Add to
013123202004/0Washer, Piston Pin£4.01 Add to
015123120005/0Nut£4.01 Add to
021123880007/0FLYWHEEL£178.34 Add to
022123044014/0IGNITION COIL£211.50 Add to
023323053003/0Spark Plug Cover£11.95 Add to
0243210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
025183065029/0EARTH CABLE£27.54 Add to
026123280054/0GASKET£9.14 Add to
027123054032/0CARBURETTOR£211.50 Add to
028123220009/0AIR FILTER£5.46 Add to
029183090012/0AIR FILTER COVER [RED] (OBSOLETE) (OBSOLETE)N/A
030123280049/0MUFFLER GASKET£11.32 Add to
031183740015/0MUFFLER ASSY£77.77 Add to
032183215007/0CLUTCH UNIT£59.51 Add to
033183058036/0STARTER ASSEMBLY£101.13 Add to
034123300007/0Starter Handle£7.14 Add to
035123082004/0STARTER PULLEY£24.26 Add to
036183733007/0FUEL TANK£132.70 Add to
037183790008/0FUEL CAP£27.88 Add to
038183520004/0INTAKE FILTER£18.36 Add to
051123685009/0CRANKCASE£98.86 Add to
052123685008/0Crank Case£122.20 Add to
053114215217/0BEARING BALL£15.00 Add to
054119035160/0OIL SEAL£5.05 Add to
055119035161/0OIL SEAL£11.32 Add to
056123208411/0FAN CASE£98.40 Add to
057123109561/0Cover£5.74 Add to
058323109567/0Case, Red£11.54 Add to
059123878062/0Double-Screw Bolt£8.58 Add to
060323109564/0COVER RED£15.69 Add to
061323600067/0Lower Guard, Red£8.23 Add to
062123020028/0CRANKSHAFT£464.79 Add to
063123235005/0NEEDLE BEARING£16.78 Add to
064123280053/0GASKET£7.92 Add to
065123073512/0INSULATOR£16.63 Add to
066123280055/0GASKET£1.91 Add to
067123040001/0AIR FILTER BASE£15.41 Add to
068123430588/0SPRING, CLUTCH£7.27 Add to
069123878060/0SCREW£6.01 Add to
070123604009/0STARTER PULLEY£19.75 Add to
071123430590/0RECOIL SPRING£26.18 Add to
073123275022/0GROMMET£5.05 Add to
074123784007/0ENGINE SUPPORT£14.86 Add to
075123753002/0Centring Pin£4.01 Add to
076123294004/0Guide£5.52 Add to
077123294005/0Guide£5.52 Add to
078123878068/0Screw£4.01 Add to
079123072003/0Flywheel Key£4.01 Add to
080123878064/0Screw£4.01 Add to
081123878063/0Screw£4.01 Add to
082123878065/0SCREW£1.31 Add to
