Engine

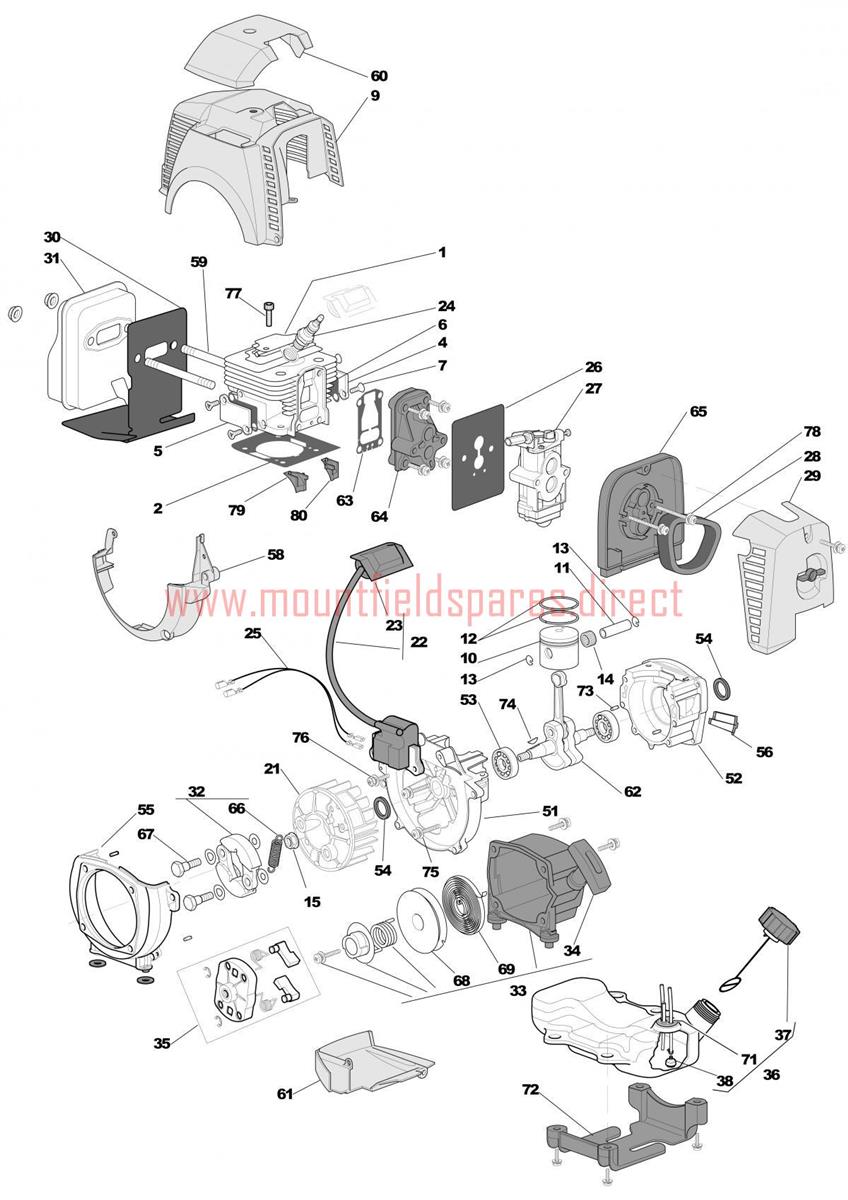

Engine assembly details for Mountfield MB3201 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001123071011/0CYLINDER£225.56 Add to
002123280050/0CYLINDER GASKET£6.01 Add to
004123109555/0Cover£8.52 Add to
005123109556/0Cover£8.52 Add to
006123280032/0Gasket£5.74 Add to
007123878054/0Screw£4.01 Add to
009323106029/0CYLINDER COVER RED£48.51 Add to
010123590005/0PISTON£54.79 Add to
011123760002/0PISTON PIN£6.87 Add to
012123204006/0PISTON RING£12.00 Add to
013123202003/0LOCK RING£1.38 Add to
014123235004/0NEEDLE BEARING£17.86 Add to
015123120005/0Nut£4.01 Add to
021123880006/0Flywheel£154.88 Add to
022123044013/0IGNITION COIL£293.25 Add to
023323053003/0Spark Plug Cover£11.95 Add to
0243210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
025183065029/0EARTH CABLE£27.54 Add to
026123280033/0GASKET£4.52 Add to
027123054030/0CARBURETOR£211.50 Add to
028123220009/0AIR FILTER£5.46 Add to
029183090010/0AIR FILTER COVER [RED]£21.15 Add to
030123280029/0GASKET£11.32 Add to
031183740014/0MUFFLER ASSY£120.90 Add to
032183215006/0CLUTCH ASSEMBLY£86.27 Add to
033183058035/0RECOIL ASSEMBLY£101.13 Add to
034123300007/0Starter Handle£7.14 Add to
035123082003/0STARTER CUP ASSY£18.12 Add to
036183733006/0FUEL TANK ASSEMBLY£116.11 Add to
037183790008/0FUEL CAP£27.88 Add to
038183520004/0INTAKE FILTER£18.36 Add to
051123685007/0Crank Case£122.20 Add to
052123685006/0Crank Case£112.57 Add to
053114215216/0BEARING BALL£21.95 Add to
054119035160/0OIL SEAL£5.05 Add to
055123208411/0FAN CASE£98.40 Add to
056123109560/0Cover£5.74 Add to
058323109566/0Case, Red£11.54 Add to
059123878061/0Double-Screw Bolt£8.14 Add to
060323109563/0COVER RED£22.47 Add to
061323600066/0Lower Guard, Red£8.23 Add to
062123020027/0CRANKSHAFT£401.85 Add to
063123280052/0MANIFOLD GASKET£7.92 Add to
064123073510/0INTAKE MANIFOLD£21.75 Add to
065123040002/0AIR FILTER BASE£13.24 Add to
066123430587/0CLUTCH SPRING£9.14 Add to
067123878060/0SCREW£6.01 Add to
068123604009/0STARTER PULLEY£19.75 Add to
069123430590/0RECOIL SPRING£26.18 Add to
071123275022/0GROMMET£5.05 Add to
072123784006/0ENGINE SUPPORT£25.81 Add to
073123753002/0Centring Pin£4.01 Add to
074123072003/0Flywheel Key£4.01 Add to
075123878066/0Screw£4.01 Add to
076123878064/0Screw£4.01 Add to
077123878063/0Screw£4.01 Add to
078123878065/0SCREW£1.31 Add to
079123294002/0Guide£5.52 Add to
080123294003/0Guide£5.52 Add to
