Handle-transmission

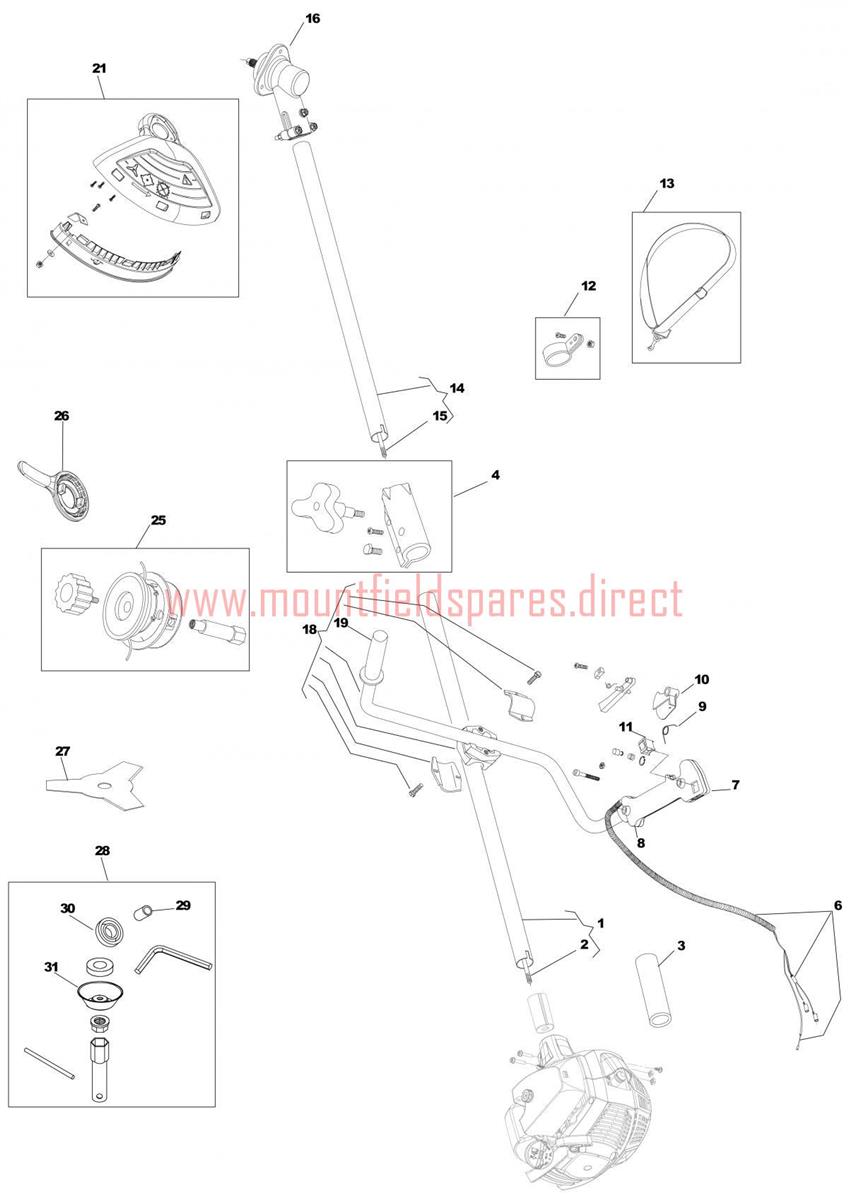

Handle-transmission assembly details for Mountfield MB2602J 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	383869060/0	SHAFT ASSY	£61.60	Add to
002	123020018/0	Transm.Shaft Ass.Y	N/A	POA
003	123170002/0	Spacer	N/A	POA
004	383260001/0	JOINT ASSY	£17.04	Add to
006	183065017/0	BOWDEN CABLE COMPL.	£12.68	Add to
007	123700056/0	Right Handgrip	N/A	POA
008	123700057/0	Left Handgrip	N/A	POA
009	123430579/0	Spring	N/A	POA
010	123315078/0	Throttle Lever	N/A	POA
011	6980206	Stop Switch	£7.19	Add to
012	383780001/0	Harness Support Ass.Y	N/A	POA
013	123046004/0	HARNESS	£8.60	Add to
014	383869062/0	ASS.TUBO TRASM.ANTERIORE 9228-A10503	£50.70	Add to
015	123020020/0	Transm.Shaft Ass.Y	N/A	POA
016	383820505/0	Gear Case Assy	N/A	POA
018	183394006/0	Handle Ass.Y	N/A	POA
019	123395051/0	Left Handgrip	N/A	POA
021	383465005/0	SAFETY COVER ASSY	£20.31	Add to
025	383820504/0	NYLON HEAD ASSEMBLY	£42.53	Add to
026	123070009/0	Nylon Head Key	N/A	POA
027	123155005/0	3 Teeth Disc	N/A	POA
028	383303512/0	ASSEMBLY KIT TEETH BLADE	£27.27	Add to
029	6980307	COLLAR 9124-330309	£7.19	Add to
030	6980308	UPPER RING NUT	£9.54	Add to
031	6980312	STABILIZER BOWL	£5.60	Add to
