Gear case

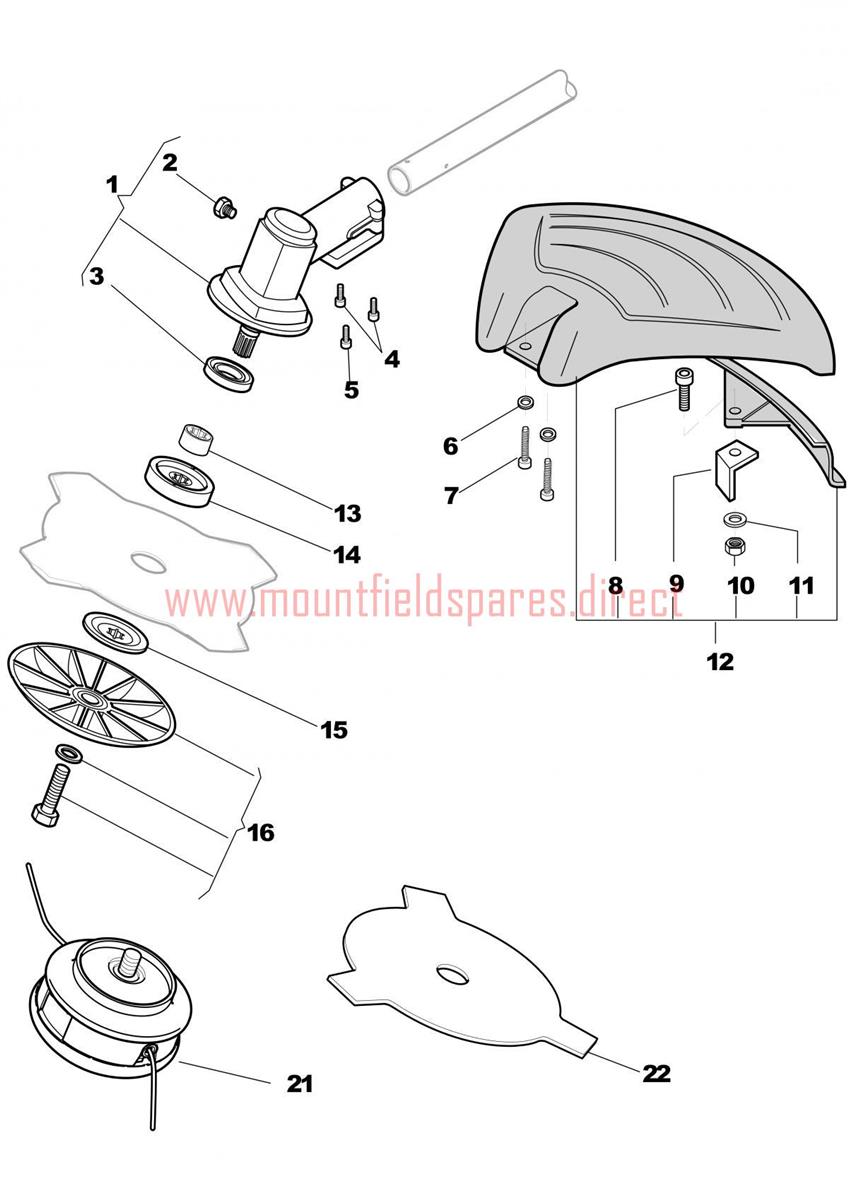

Gear case assembly details for Mountfield MB2501 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	3L4252770/2	GEAR CASE ASSY D=24	£124.29	Add to
002	2653460	SCREW	£4.52	Add to
003	3121180	OIL SEAL 18 x 28 x 7	£4.52	Add to
004	2135050	TORX SCREW M5 x 30	£1.79	Add to
005	2653090	SCREW M5X11,5	£1.79	Add to
006	2312150	WASHER 5.5 x 15 x 1.5	£1.79	Add to
007	2135060	TORX SCREW M5 x 25	£2.00	Add to
008	2135030	TORX SCREW M5 x 20	£1.79	Add to
009	3615000	LINE CUTTER	£8.32	Add to
010	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
012	3L8563570/1	SAFETY COVER ASSEMBLY	£21.83	Add to
013	3660680	COLLAR	£6.01	Add to
014	3641650	UPPER RING NUT	£9.68	Add to
015	3612650	LOWER RING NUT	£5.45	Add to
016	4560610	STABILIZER BOWL 127mm X 8M (OBSOLETE) (OBSOLETE)	N/A
021	3L4353240/1	NYLON HEAD [M8-MALE LH-THREAD]	£23.87	Add to
022	6031172	BLADE 3 TEETH 255mm	£9.41	Add to
