Handle-transmission

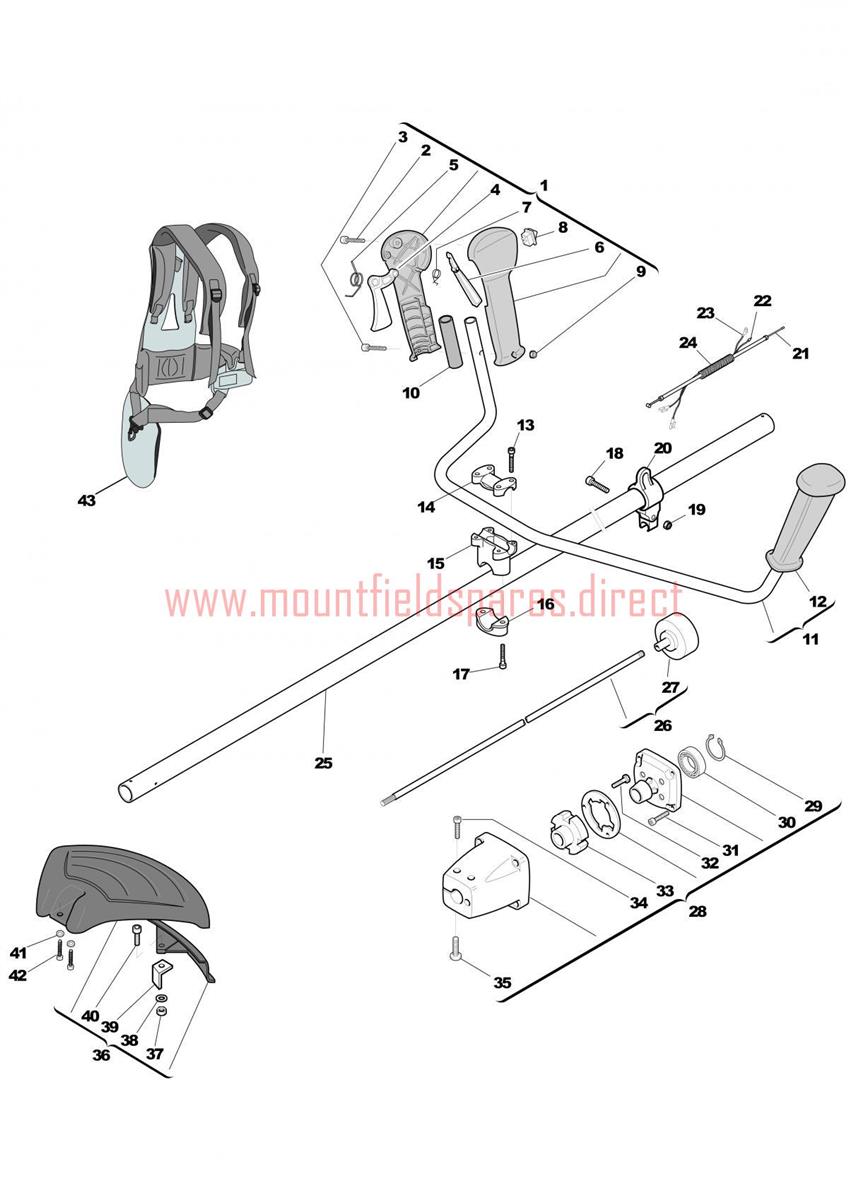

Handle-transmission assembly details for Mountfield BJ335D 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0018563830THROTTLE HANDLE ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
0022123030TORX SELF-THREAD SCREW£1.79 Add to
0032135050TORX SCREW M5 x 30£1.79 Add to
004323315083/0THROTTLE LEVER [RED]£2.00 Add to
0053654270/1Spring£4.60 Add to
0063743441SAFETY LEVER£1.79 Add to
0073654280/1Spring£4.60 Add to
008118800202/0EXTINCTION SWITCH£2.18 Add to
009112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
01023655001/0REDUCTION 2009£7.71 Add to
01183394003/0Handle Ass.Y£47.47 Add to
01223395050/0Left Handle£11.89 Add to
0132135060TORX SCREW M5 x 25£2.00 Add to
0143L4541500/1UPPER HANDLE CLAMP£22.08 Add to
0153L4541490/1HANDLE CLAMP£46.61 Add to
0164541510LOWER HANDLE CLAMP£19.77 Add to
0182135040TORX SCREW M5 x 18£1.79 Add to
0192412030NUT M5 x 5 x 8£1.79 Add to
02023780000/0Harness Support£5.66 Add to
021123066014/0THROTTLE WIRE£8.28 Add to
022123065024/0Coil-Switch Cable£5.63 Add to
0233211600/1Earth Cable (Black)£6.45 Add to
0243786240Wire Sheath (OBSOLETE)N/A
0258251201TRANSMISSION PIPE£54.01 Add to
0264251400TRANSMISSION SHAFT ASSY£50.22 Add to
0273L4121861/1CLUTCH DRUM£21.40 Add to
0288562960SUPPORT TRASSM.ASSY£56.15 Add to
0293353080CIRCLIP D=32mm£1.79 Add to
0303112170Bearing (OBSOLETE)N/A
0312135160SCREW TX M6 x 19£1.79 Add to
0333744260SHOCK ABSORBER£6.55 Add to
0342123110SCREW 4.8 x 35£1.79 Add to
0352123100SCREW M4 8 x 13£1.79 Add to
0363L8563570/1SAFETY COVER ASSEMBLY£21.83 Add to
0372432040NUT M5£1.79 Add to
0382312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0393615000LINE CUTTER£8.32 Add to
0402135030TORX SCREW M5 x 20£1.79 Add to
043123046000/0HarnessN/A POA
