Engine

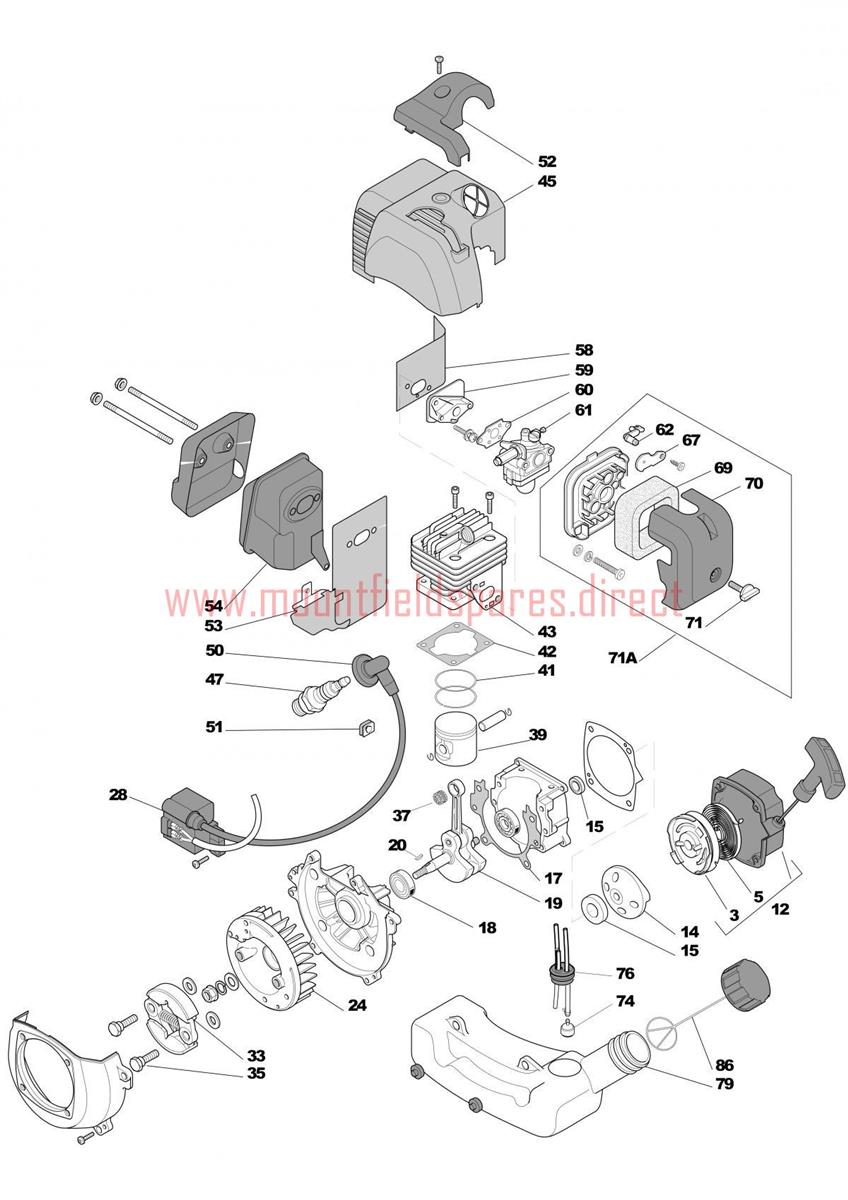

Engine assembly details for Mountfield BJ335D 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
002123604006/0RECOIL PULLEY£3.15 Add to
004123430584/0RECOIL SPRING£6.69 Add to
010183058031/0RECOIL ASSEMBLY£19.90 Add to
014183082002/1STARTER CUP ASSEMBLY£4.78 Add to
015119035159/0OIL SEAL£1.79 Add to
017123280046/0CRANKCASE GASKET£1.79 Add to
018114215218/0Ball Bearing£7.48 Add to
019123020024/0CRANKSHAFT£47.97 Add to
020123072002/0FLYWHEEL KEY£1.79 Add to
024123880008/0MAGNET FLYWHEEL£35.91 Add to
028123044010/0IGNITION COIL£41.81 Add to
032123430582/0CLUTCH SPRING£1.79 Add to
033123400002/0CLUTCH UNIT£8.60 Add to
035123878057/0SCREW£1.79 Add to
037123235006/0NEEDLE BEARING£3.15 Add to
039123590007/0PISTON£9.00 Add to
041123204009/0PISTON RING£2.06 Add to
042123280044/0CYLINDER GASKET£1.79 Add to
043123071013/0CYLINDER£36.61 Add to
045123087024/0Cylinder Cover Red£11.34 Add to
0473210024SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A£4.52 Add to
050123053002/0SPARK PLUG COVER£6.14 Add to
051123275023/0GROMMET£1.79 Add to
052123109551/0Cover, Spark Plug£4.60 Add to
053123280042/0GASKET£12.94 Add to
054183740009/0MufflerN/A POA
058123280040/0INTAKE MANIFOLD GASKET£1.79 Add to
059123073508/0INTAKE MANIFOLD£3.83 Add to
060123280038/0Intake-Carb GasketN/A POA
061123054025/0CarburettorN/A POA
062123315089/0CHOKE LEVER£1.79 Add to
067123190000/0CHOKE£1.79 Add to
069123220011/0AIR FILTER£3.96 Add to
070123090026/0AIR FILTER COVER£4.78 Add to
071123878056/0SCREW£1.79 Add to
072123275021/0GROMMET£1.79 Add to
074183520005/0INTAKE FILTER£3.69 Add to
079123733002/0PETROL TANK£7.10 Add to
086183790009/0FUEL CAP£3.15 Add to
71A183220003/0AIR FILTER ASSY£10.36 Add to
