Handle-transmission

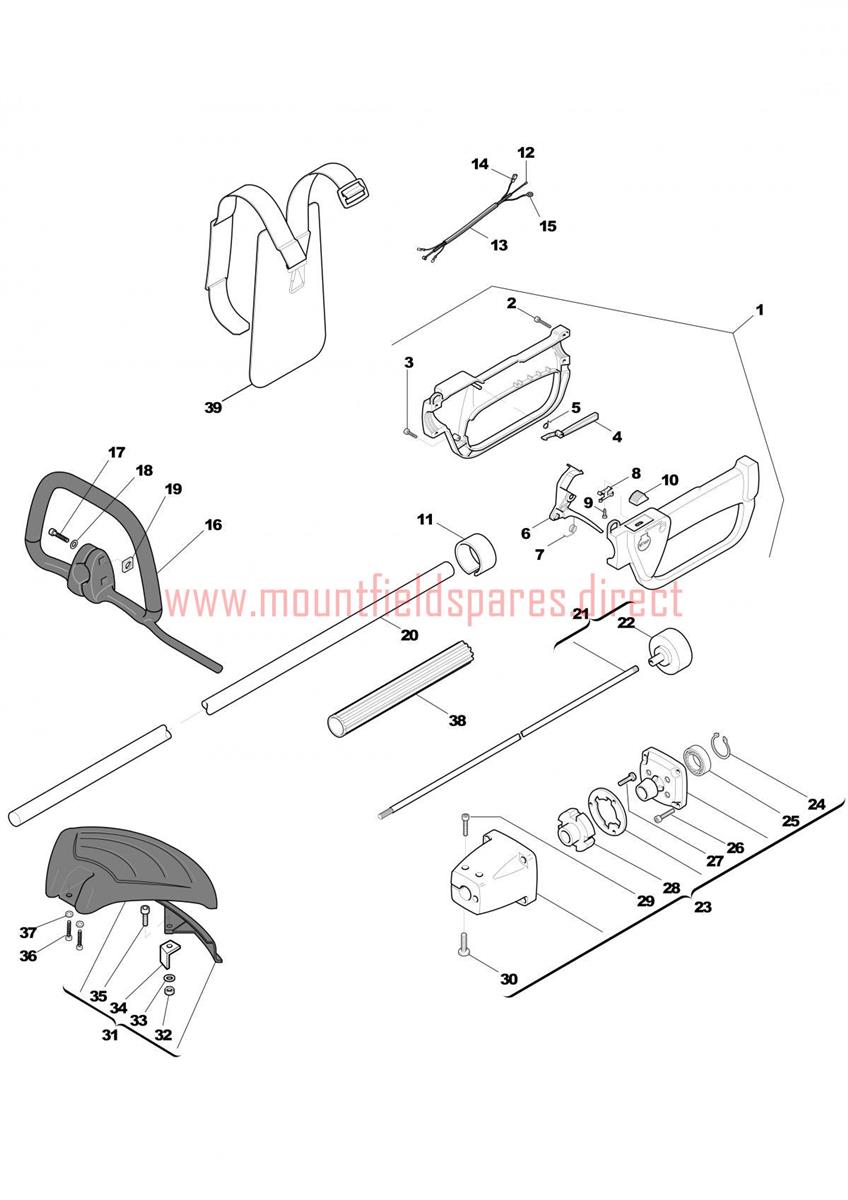

Handle-transmission assembly details for Mountfield BJ335 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	8562620/1	Handle Ass.Y (Incl.2-12)	£28.73	Add to
002	2123030	TORX SELF-THREAD SCREW	£1.79	Add to
004	3743475	SAFETY LEVER	£3.15	Add to
005	3654300	SPRING	£1.79	Add to
006	3743465	THROTTLE LEVER	£4.82	Add to
007	3654270/1	Spring	£4.60	Add to
008	3612710	Stop Plate	£5.66	Add to
009	2123070	TORX SELF-THREAD SCREW	£1.79	Add to
010	3749270	STOP KNOB	£1.79	Add to
011	3749920	Reduction	£4.01	Add to
012	4252540	Wire Ass.Y	£7.81	Add to
013	3786030	WIRES GUARD SHEATH BC 4T MONO	£12.22	Add to
014	123065022/0	Coil-Switch Cable	N/A	POA
015	3211120	CABLE	£5.87	Add to
016	23300001/0	FRONT HANDLE 2009	£30.54	Add to
017	2135050	TORX SCREW M5 x 30	£1.79	Add to
018	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
019	2461030	SQUARE NUT M5 x 10 x 6	£1.79	Add to
020	8251201	TRANSMISSION PIPE	£54.01	Add to
021	4251400	TRANSMISSION SHAFT ASSY	£50.22	Add to
022	3L4121861/1	CLUTCH DRUM	£21.40	Add to
023	8562960	SUPPORT TRASSM.ASSY	£56.15	Add to
024	3353080	CIRCLIP D=32mm	£1.79	Add to
025	3112170	Bearing (OBSOLETE)	N/A
026	2135160	SCREW TX M6 x 19	£1.79	Add to
028	3744260	SHOCK ABSORBER	£6.55	Add to
029	2123110	SCREW 4.8 x 35	£1.79	Add to
030	2123100	SCREW M4 8 x 13	£1.79	Add to
031	3L8563570/1	SAFETY COVER ASSEMBLY	£21.83	Add to
032	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
033	2312150	WASHER 5.5 x 15 x 1.5	£1.79	Add to
034	3615000	LINE CUTTER	£8.32	Add to
035	2135030	TORX SCREW M5 x 20	£1.79	Add to
036	2135060	TORX SCREW M5 x 25	£2.00	Add to
038	23170000/0	FRONT HANDLE SPACER TR 1000 2009	£5.58	Add to
039	4253460	SINGLE HARNESS	£17.27	Add to
