Gear case

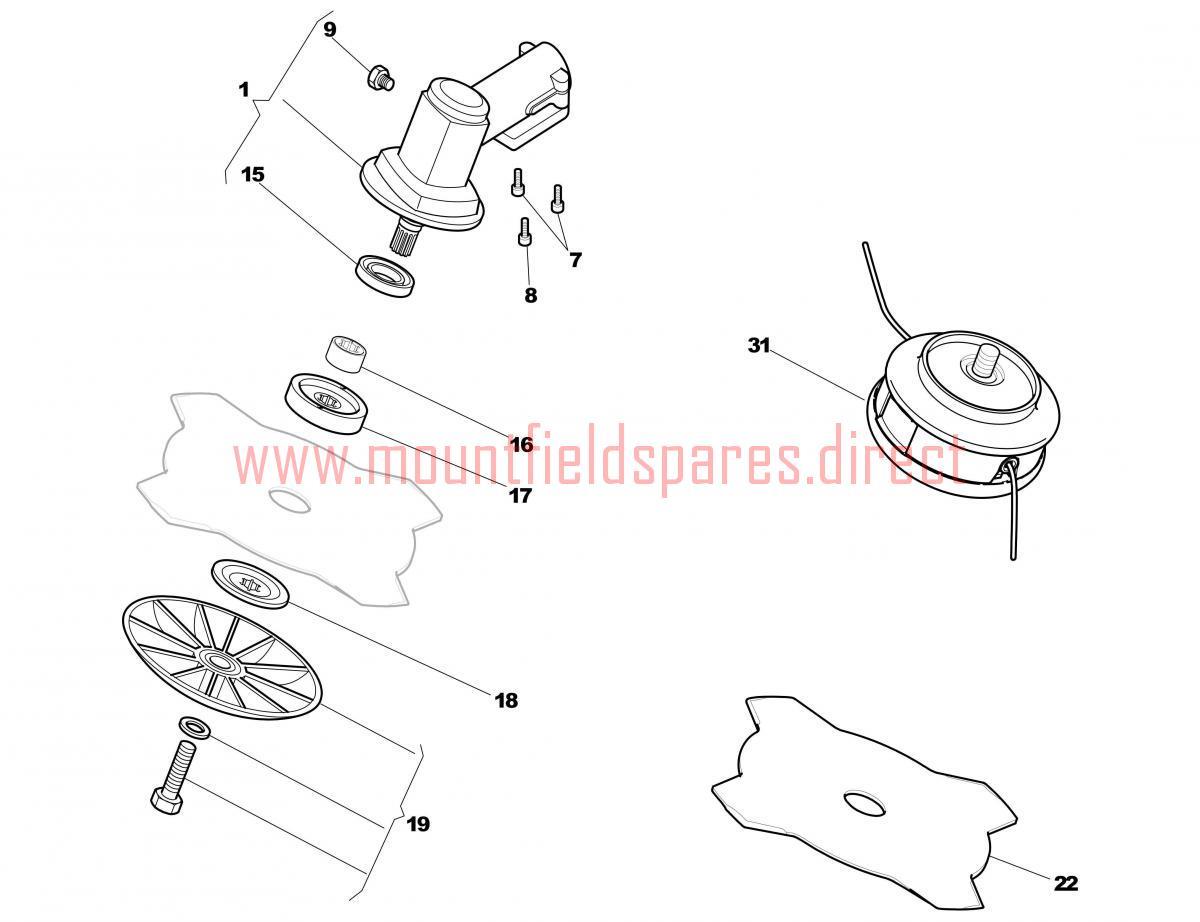

Gear case assembly details for Mountfield BJ335 2009 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	4252780/1	Gear Case Assy	£91.72	Add to
007	2135050	TORX SCREW M5 x 30	£1.79	Add to
008	2653090	SCREW M5X11,5	£1.79	Add to
009	2653460	SCREW	£4.52	Add to
015	3121170	RING 22X32X7	£4.52	Add to
016	1L3641700/1	SPACER	£9.28	Add to
017	3641640	UPPER RING NUT	£10.36	Add to
018	3612640	LOWER RING NUT	£7.51	Add to
019	4560610	STABILIZER BOWL 127mm X 8M (OBSOLETE) (OBSOLETE)	N/A
020	2321230	WASHER 8.2 x 18 x 1	£1.79	Add to
021	2653170	BOLT M8 X 28	£5.19	Add to
022	4611880	BLADE 4 TEETH 255mm	£12.40	Add to
031	3L4353240/1	NYLON HEAD [M8-MALE LH-THREAD]	£23.87	Add to
