Handle-transmission

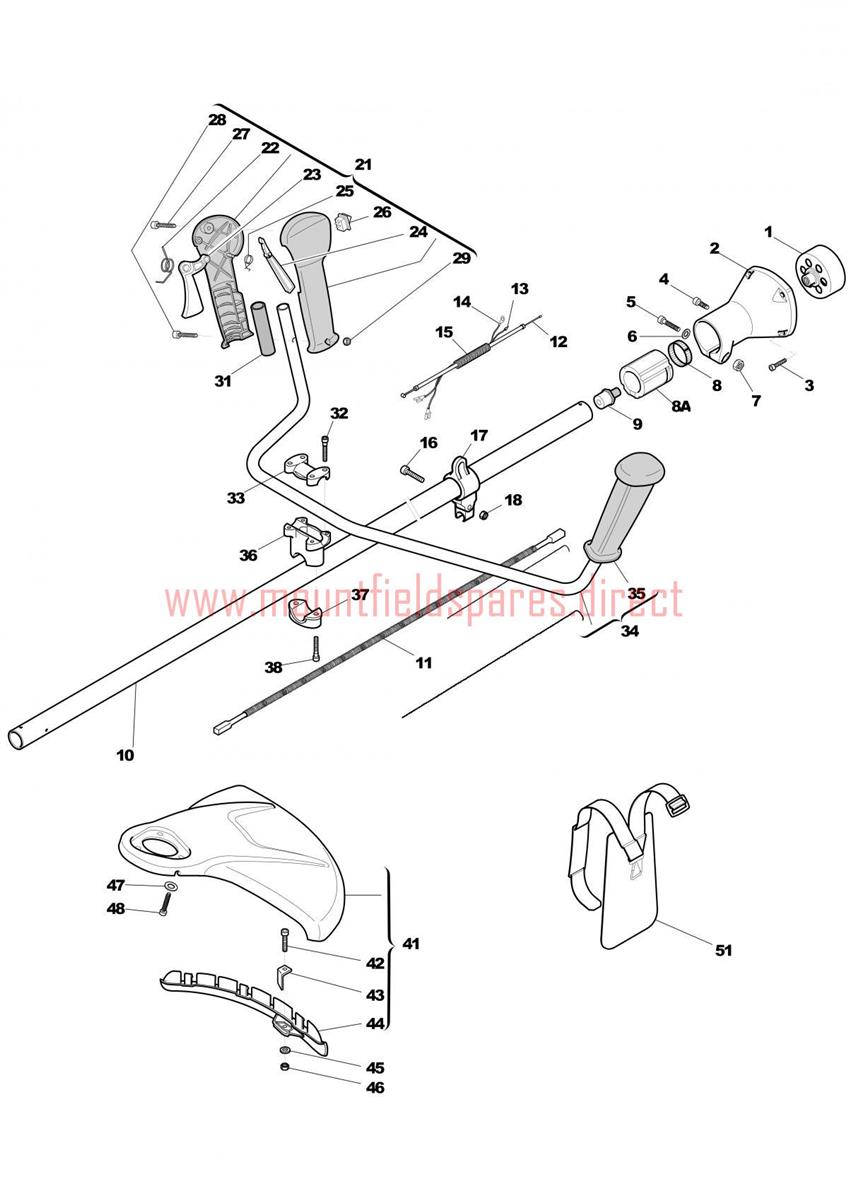

Handle-transmission assembly details for Mountfield BJ325D 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00183050004/0Drum Ass'Y, Clutch£46.31 Add to
00223782004/0SUPPORT TRASM.ASSY 2009£24.36 Add to
0032135160SCREW TX M6 x 19£1.79 Add to
0042653090SCREW M5X11,5£1.79 Add to
0052135150TORX SCREW M6 x 23£1.79 Add to
0062312010FLAT WASHER 6.4 x 12 x 1.6£1.79 Add to
0072412020Nut£4.01 Add to
00823655002/0Reduction£4.01 Add to
00923445258/0Bearing Hub£12.54 Add to
01083869052/0Trasmission Pipe Ass.Y£88.27 Add to
01123020009/0TRANSMISSION SHAFT 2009£36.91 Add to
012123066014/0THROTTLE WIRE£8.28 Add to
01323065002/0Coil-Switch Cable£6.58 Add to
0143211600/1Earth Cable (Black)£6.45 Add to
0153786240Wire Sheath (OBSOLETE)N/A
0162135040TORX SCREW M5 x 18£1.79 Add to
01723780000/0Harness Support£5.66 Add to
0182412030NUT M5 x 5 x 8£1.79 Add to
0218563830THROTTLE HANDLE ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
0223654270/1Spring£4.60 Add to
023323315083/0THROTTLE LEVER [RED]£2.00 Add to
0243743441SAFETY LEVER£1.79 Add to
0253654280/1Spring£4.60 Add to
026118800202/0EXTINCTION SWITCH£2.18 Add to
0272123030TORX SELF-THREAD SCREW£1.79 Add to
0282135050TORX SCREW M5 x 30£1.79 Add to
029112154330/0LOW SELF-LOCKING NUT M5£2.06 Add to
03123655001/0REDUCTION 2009£7.71 Add to
0322135060TORX SCREW M5 x 25£2.00 Add to
0333L4541500/1UPPER HANDLE CLAMP£22.08 Add to
03483394003/0Handle Ass.Y£47.47 Add to
03523395050/0Left Handle£11.89 Add to
0363L4541490/1HANDLE CLAMP£46.61 Add to
0374541510LOWER HANDLE CLAMP£19.77 Add to
04183465003/0SAFETY COVER ASS.Y 2009£46.87 Add to
0422135030TORX SCREW M5 x 20£1.79 Add to
0433615000LINE CUTTER£8.32 Add to
04423600051/0DISC PROTECTION 2009£17.68 Add to
0452312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0462432040NUT M5£1.79 Add to
0482135180TORX SCREW M5 x 12£1.79 Add to
0514253460SINGLE HARNESS£17.27 Add to
08A23597500/0SupportN/A POA
