Engine

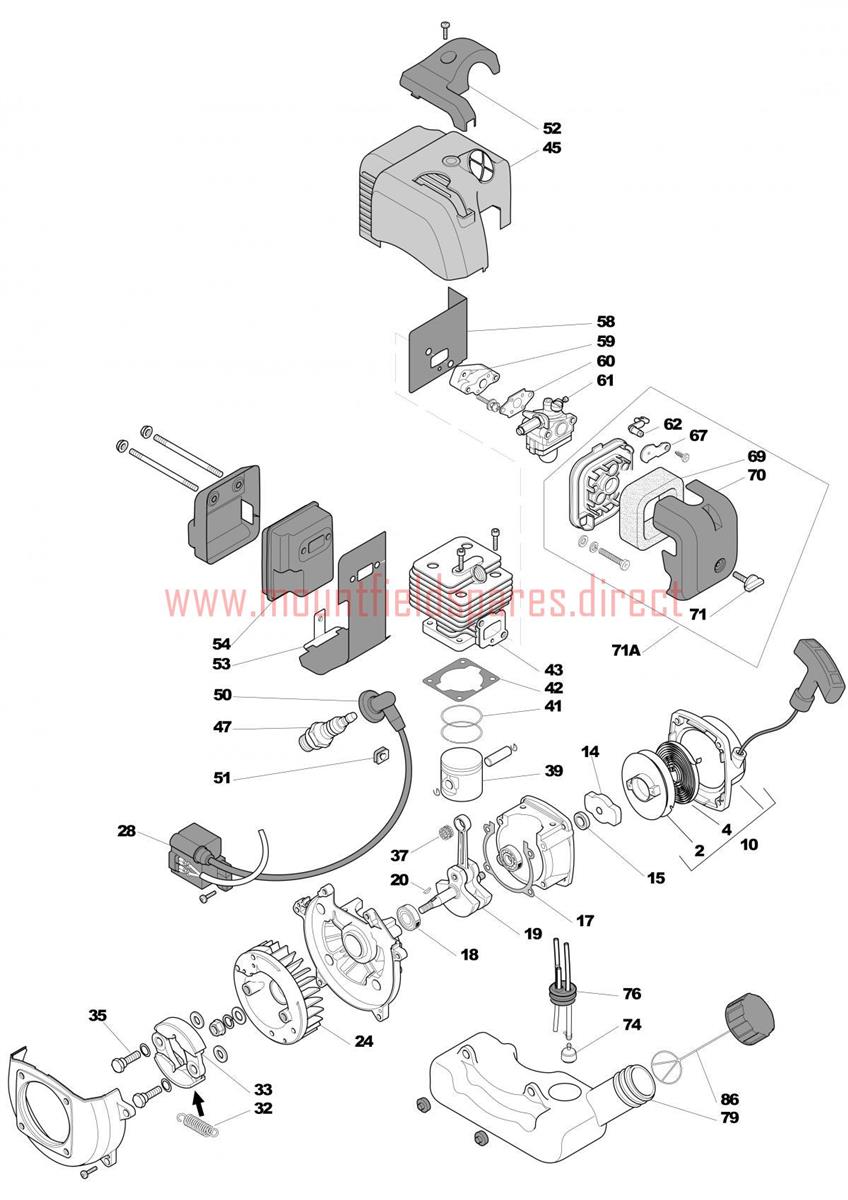

Engine assembly details for Mountfield BJ325 2009 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
003	123604007/0	STARTER PULLEY	£5.37	Add to
005	123430585/0	SPRING, STARTER	£6.95	Add to
012	183058032/0	STARTER ASSY	£39.80	Add to
014	123082005/0	Starter Cup Ass.Y	N/A	POA
015	119035159/0	OIL SEAL	£1.79	Add to
017	123280047/0	CRANKCASE GASKET	£2.18	Add to
018	114215218/0	Ball Bearing	£7.48	Add to
019	123020025/0	CRANKSHAFT	£46.61	Add to
020	123072002/0	FLYWHEEL KEY	£1.79	Add to
024	123880009/0	MAGNET FLYWHEEL	£35.71	Add to
028	123044011/0	IGNITION COIL	£44.40	Add to
032	123430583/0	CLUTCH UNIT	£12.00	Add to
035	123878058/0	SCREW	£2.18	Add to
037	123235007/0	NEEDLE BEARING	£3.00	Add to
039	123590008/0	PISTON	£9.68	Add to
041	123204010/0	PISTON RING	£2.87	Add to
042	123280045/0	CYLINDER GASKET	£1.79	Add to
043	123071014/0	CYLINDER	£84.77	Add to
045	123087026/0	Cylinder Cover Red	£6.20	Add to
047	3210024	SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A	£4.52	Add to
050	123053002/0	SPARK PLUG COVER	£6.14	Add to
051	123275023/0	GROMMET	£1.79	Add to
052	123109552/0	SPARK PLUG COVER 1E36F-E-4	£5.76	Add to
053	123280043/0	GASKET	£12.96	Add to
054	183740010/0	MUFFLER ASSY	£109.29	Add to
058	123280041/0	INTAKE MANIFOLD GASKET	£1.79	Add to
059	123073509/0	INTAKE MANIFOLD	£4.52	Add to
060	123280039/0	CARBURETOR GASKET	£1.79	Add to
061	123054026/0	Carburettor	N/A	POA
062	123315089/0	CHOKE LEVER	£1.79	Add to
067	123190000/0	CHOKE	£1.79	Add to
069	123220011/0	AIR FILTER	£3.96	Add to
070	123090026/0	AIR FILTER COVER	£4.78	Add to
071	123878056/0	SCREW	£1.79	Add to
072	123275021/0	GROMMET	£1.79	Add to
074	183520005/0	INTAKE FILTER	£3.69	Add to
079	123733003/0	PETROL TANK	£9.96	Add to
086	183790009/0	FUEL CAP	£3.15	Add to
71A	183220003/0	AIR FILTER ASSY	£10.36	Add to
