MT 26 TRIMMER

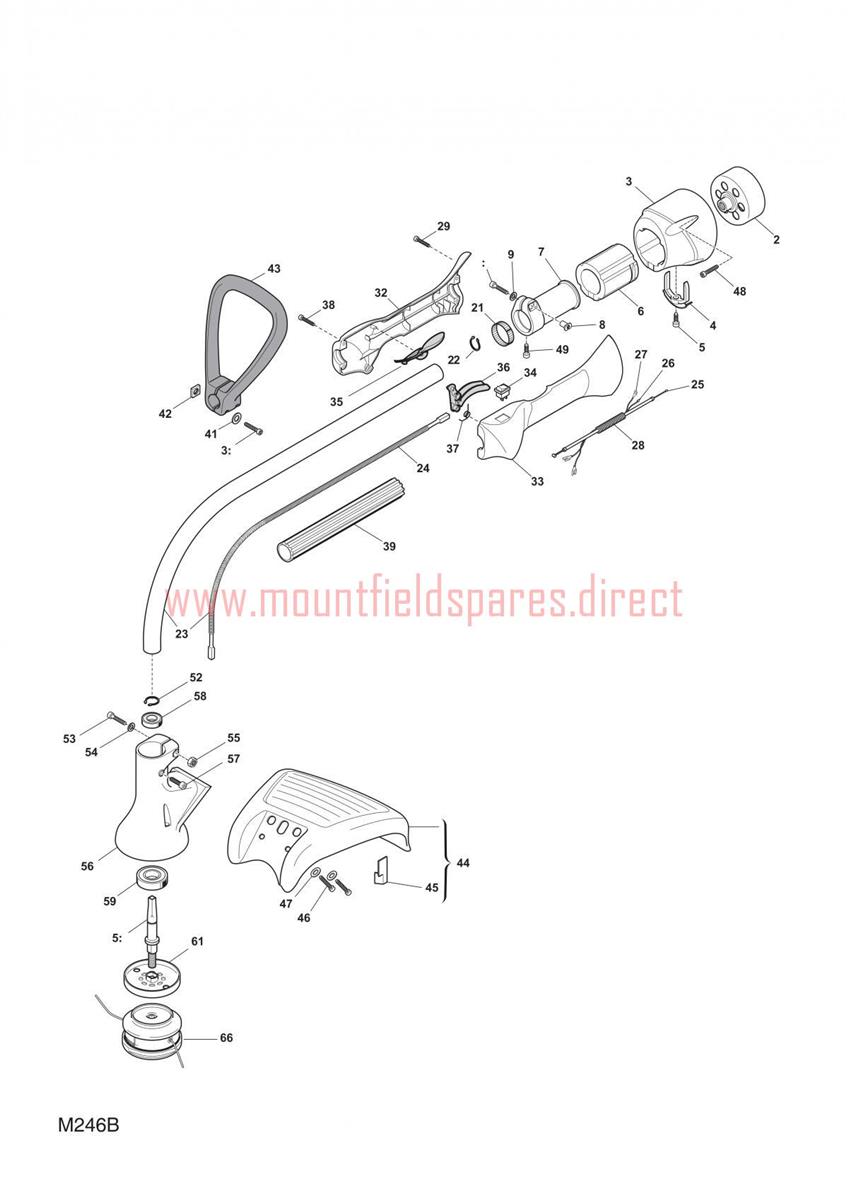

MT 26 TRIMMER assembly details for Mountfield MT26 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
00183050003/0CLUTCH DRUM 2008£60.13 Add to
00223782005/0Support Trasm.Assy£16.51 Add to
00323232001/0Fork£5.58 Add to
0042123100SCREW M4 8 x 13£1.79 Add to
00523275000/0Grommet£12.29 Add to
00623782003/0Support£4.60 Add to
0073643470TUBE FIXING BUSHING TR. HONDA£3.69 Add to
0082312020FLAT WASHER 5 x 11 x 1£1.79 Add to
0092135040TORX SCREW M5 x 18£1.79 Add to
0103180560COMPENSATOR RING HONDA£5.19 Add to
011112608600/0CIRCLIP D=12£2.08 Add to
01283869057/0Transmission tube£139.82 Add to
01323020008/0Trans.Shaft Assy£34.20 Add to
01423066003/0Cable, Trottle£6.96 Add to
01523065000/0SWITCH-COIL CABLE 2009£6.53 Add to
01623065014/0Earth Cable£6.58 Add to
01723290000/0WIRE SHEATH 2009£5.78 Add to
021323700002/0RIGHT HANDGRIP£7.10 Add to
022323700003/0LEFT HANDGRIP£7.81 Add to
023118800202/0EXTINCTION SWITCH£2.18 Add to
02423315055/0Safety Lever£9.12 Add to
025323315054/0SAFETY LEVER£7.23 Add to
02623430551/1Spring (OBSOLETE) (OBSOLETE)N/A
0272123030TORX SELF-THREAD SCREW£1.79 Add to
02823170000/0FRONT HANDLE SPACER TR 1000 2009£5.58 Add to
0292135050TORX SCREW M5 x 30£1.79 Add to
0302312090FLAT WASHER D=5 x 10 x 1£1.79 Add to
0312461030SQUARE NUT M5 x 10 x 6£1.79 Add to
03223300000/0Front Handle£9.54 Add to
03383465001/0SAFETY COVER ASS.Y 2009£42.11 Add to
0343614640WIRE CUTTER TR 1000£3.83 Add to
0362312150WASHER 5.5 x 15 x 1.5£1.79 Add to
0372135160SCREW TX M6 x 19£1.79 Add to
0382653090SCREW M5X11,5£1.79 Add to
0422135150TORX SCREW M6 x 23£1.79 Add to
0432312010FLAT WASHER 6.4 x 12 x 1.6£1.79 Add to
0442412020Nut£4.01 Add to
04523056302/0Gear Case£18.49 Add to
04719216037/0Bearing£13.84 Add to
0483112280BALL BEARING 6001 2RS£5.92 Add to
04923020005/0Head Shaft£32.01 Add to
0503614630RING NUT (TR 1000 GEAR CASE)£15.00 Add to
05523155001/0Cutting head assyN/A POA
0989959905SAFETY GOOGLES£5.21 Add to
0991911-9008-04Cutting line (2.4 mm)£49.84 Add to
0991911-9008-08Cutting line (2.4 mm)£9.54 Add to
