MT 25J-MB 25J 26-MB 26 ENGINE (1)

MT 25J-MB 25J 26-MB 26 ENGINE (1) assembly details for Mountfield MT26 2007 model

Parts list

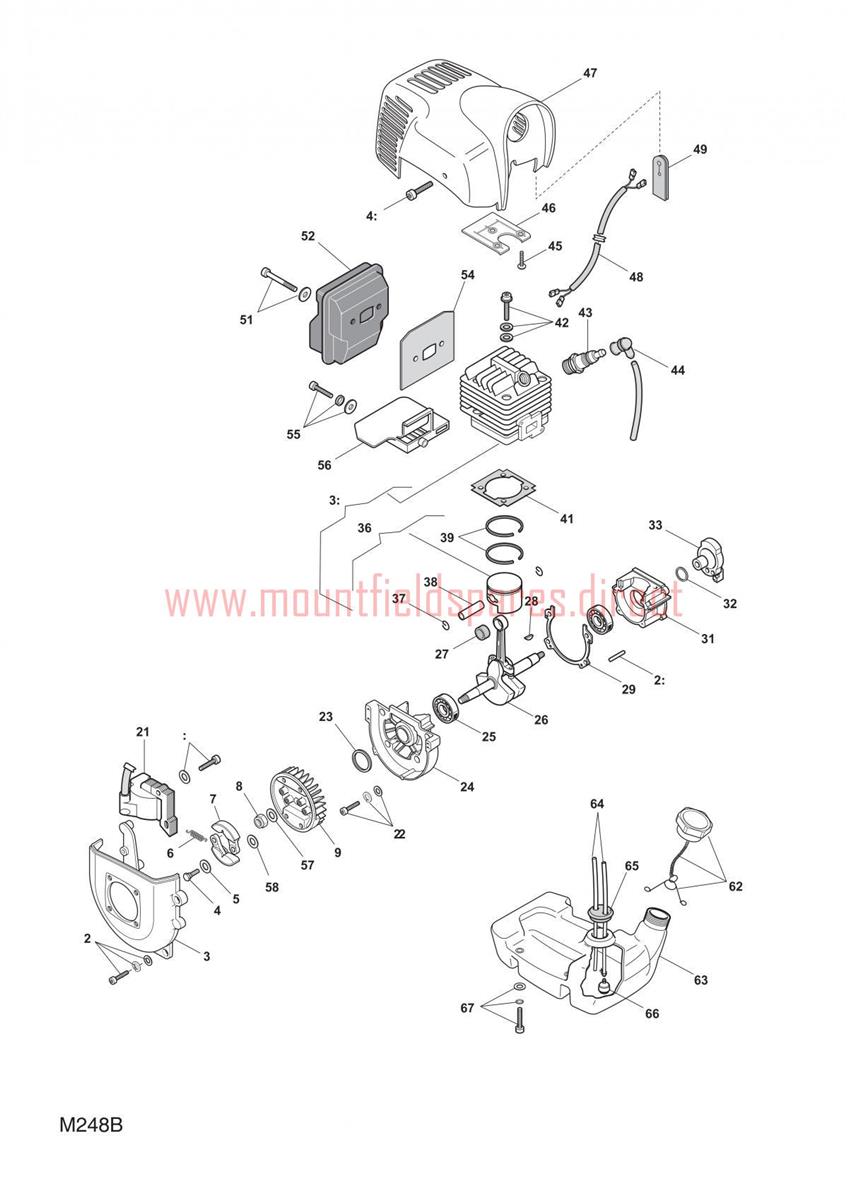

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6981113	Screws Set	£4.01	Add to
002	6981009	TRANSM. SUPPORT CASE 2008 (OBSOLETE) (OBSOLETE)	N/A
003	6981035	SCREW	£3.55	Add to
004	6981033	Washer	£4.01	Add to
005	6981034	CLUTCH SPRING	£2.06	Add to
006	6981032	CLUTCH UNIT (OBSOLETE) (OBSOLETE)	N/A
007	6981143	Nut	£4.01	Add to
008	6981002	FLYWHEEL	£40.64	Add to
009	6981116	SCREW OUTFIT	£1.79	Add to
010	6981001	Elettronic Coil	£98.26	Add to
011	6981114	Screws Set	£4.01	Add to
012	6981008	SEAL RING	£2.87	Add to
013	6981005	FRONT CRANKCASE	£13.31	Add to
014	6981097	Ball Bearing	£8.91	Add to
014	6981110	NEEDLE BEARING	£9.07	Add to
015	6981016	CRANKSHAFT	£58.73	Add to
016	6981017	Needle Bearing	£9.54	Add to
017	6981096	Flywheel Key	£4.01	Add to
018	6981007	GASKET	£2.87	Add to
019	6981126	Centring Pin	£4.01	Add to
020	6981006	REAR CRANKCASE	£27.30	Add to
022	6981031/1	STARTER CUP	£14.73	Add to
025	6981012	PISTON ASS.Y	£31.15	Add to
026	6981015	Washer, Piston Pin	£4.01	Add to
027	6981014	PISTON PIN	£15.21	Add to
028	6981013	PISTON RING	£7.10	Add to
029	6981003	CYLINDER-PISTON ASSEMBLY	£67.05	Add to
030	6981004	CYLINDER GASKET	£3.15	Add to
032	6981106	Spark Plug	£8.90	Add to
033	6981023	SPARK PLUG COVER	£8.73	Add to
034	6981285	SCREW OUTFIT (OBSOLETE) (OBSOLETE)	N/A
035	6981044	Guard Assy	£6.58	Add to
036	6981121	ORANGE CYLINDER COVER	£25.70	Add to
037	6981022	Cable	£5.66	Add to
038	6981021	Cable Retainer	£5.66	Add to
039	6981098	Screws Set	£4.01	Add to
040	6981115	Screws Set	£4.01	Add to
041	6981040	MUFFLER	£25.74	Add to
043	6981041	Gasket	£6.88	Add to
045	6981043	Guard Assy	£7.18	Add to
046	6981128	WASHER	£3.64	Add to
047	6981276	Washer	£4.01	Add to
051	0000006981091	FUEL TANK CAP (OBSOLETE)	N/A
052	6981036	Kit Fuel Tank	N/A	POA
053	123867028/0	FUEL PIPE	£2.00	Add to
054	123275032/0	RUBBER PIPE GROMMET	£2.67	Add to
055	4253291	INTAKE FILTER	£10.65	Add to
056	6981101	Screws Set	£4.01	Add to
