MT 25J-MB 25J 26-MB 26 ENGINE (2)

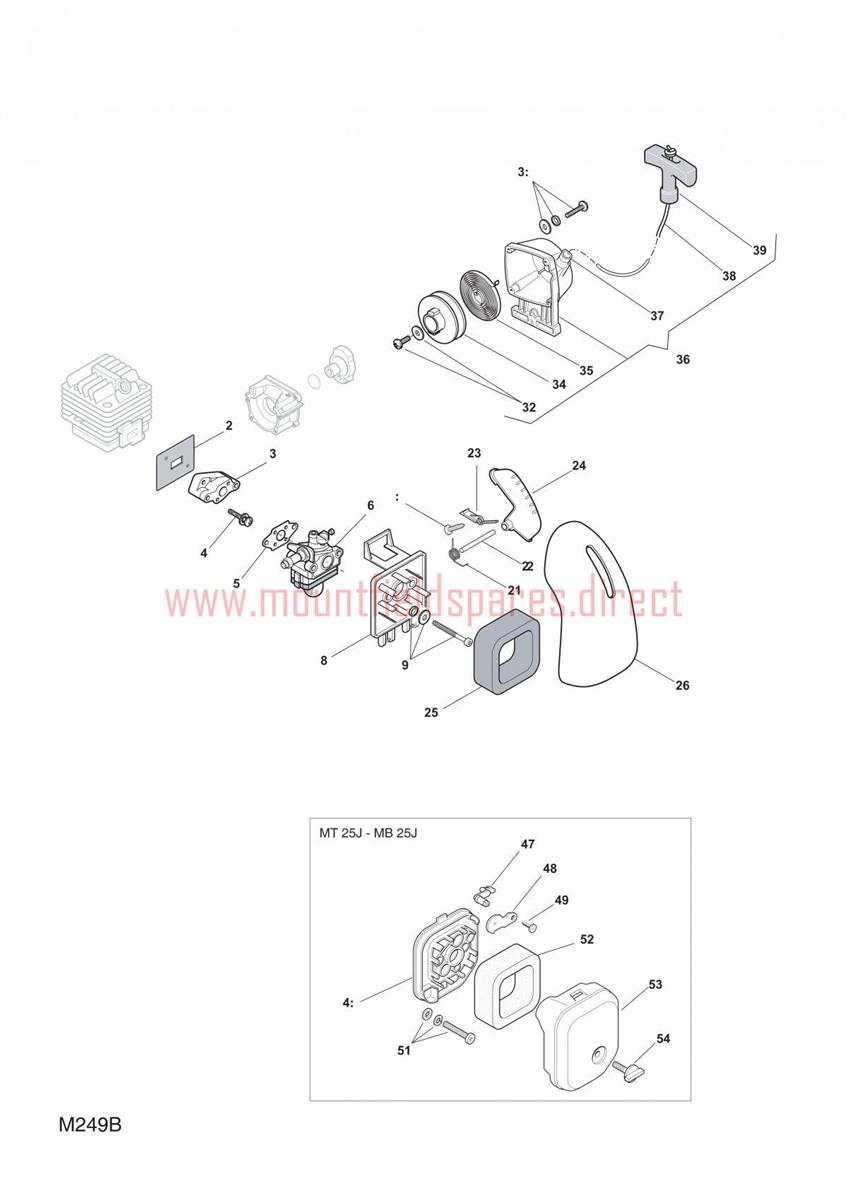

MT 25J-MB 25J 26-MB 26 ENGINE (2) assembly details for Mountfield MT25J 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6981011	INTAKE MANIFOLD GASKET	£2.38	Add to
002	6981010	INTAKE MANIFOLD (OBSOLETE)	N/A
003	6981266	Screws Set	£4.01	Add to
004	6981018	DIAPHRAGM GASKET (OBSOLETE)	N/A
005	23054010/0	Carburettor Walbro WYJ 393	£157.01	Add to
005	23054013/1	Carburettor	£103.61	Add to
007	6981019	Air Filter Holder	£6.45	Add to
008	6981105	Screws Set	£4.01	Add to
009	6981269	SCREW	£3.64	Add to
010	6981045	Spring	£5.66	Add to
011	6981046	Pin	£4.01	Add to
012	6981047	Retainer	N/A	POA
013	6981107	Button	£5.66	Add to
014	6981020	AIR FILTER	£2.18	Add to
015	6981119	ORANGE FILTER COVER (OBSOLETE) (OBSOLETE)	N/A
021	6981099	Screw	£4.01	Add to
023	6981026	STARTER PULLEY (OBSOLETE) (OBSOLETE)	N/A
024	6981025	STARTING SPRING	£5.12	Add to
025	6981024/1	RECOIL ASSEMBLY	£11.87	Add to
026	6981028	Rope Guide	£5.66	Add to
027	6981029	STARTER ROPE	£1.79	Add to
028	6981027	Starter Handle	£5.66	Add to
029	6981116	SCREW OUTFIT	£1.79	Add to
036	6981137	AIR LEVER	£1.79	Add to
037	6981136	STARTER VALVE	£1.79	Add to
038	6981268	SCREW	£2.00	Add to
039	6981131	AIR FILTER SUPPORT	£1.79	Add to
040	6981104	SCREW SET (OBSOLETE)	N/A
042	6981134	AIR FILTER COVER (OBSOLETE)	N/A
043	6981132	SCREW	£2.47	Add to
