DRIVE SHAFT

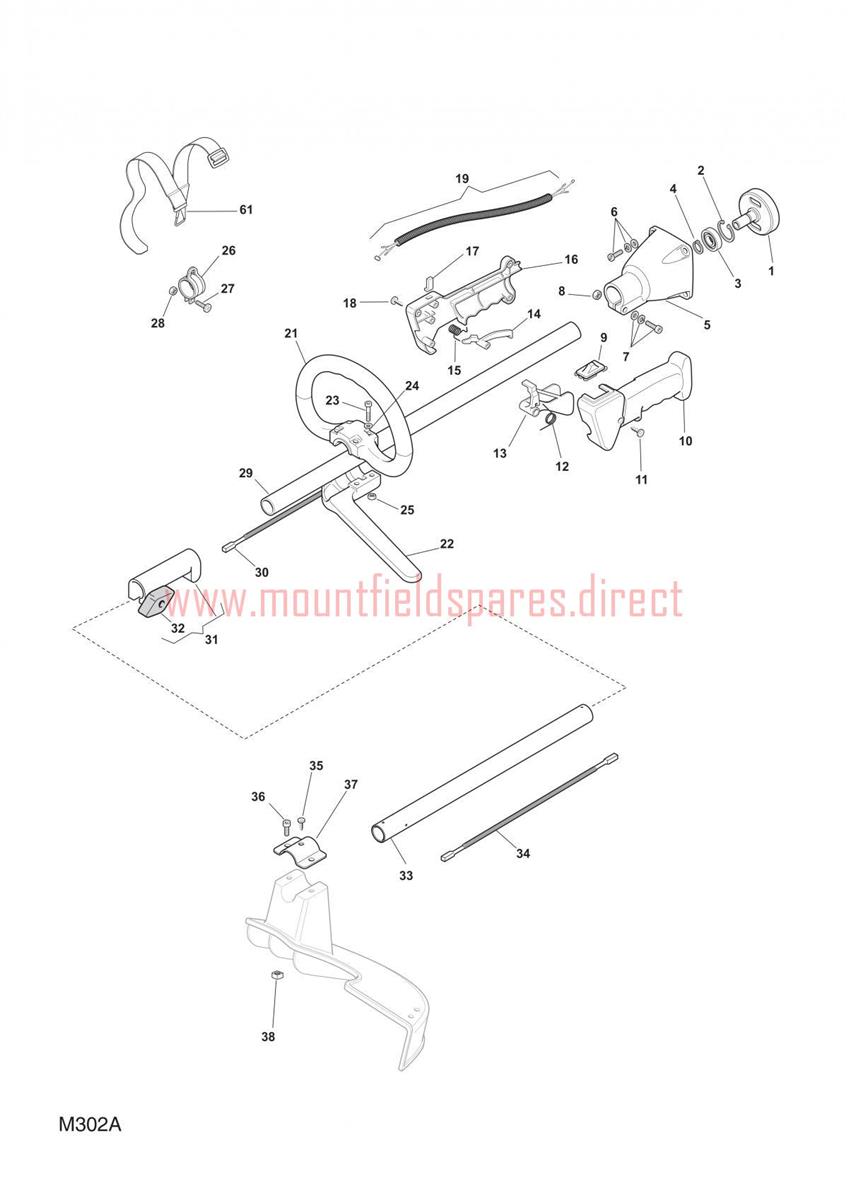

DRIVE SHAFT assembly details for Mountfield MB25J 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0016981208CLUTCH DRUM ASS.Y£34.35 Add to
0026981271Ring£4.01 Add to
0036981256NEEDLE BEARING£18.69 Add to
0046981272Ring£4.01 Add to
0056981207TRANSMISSION SUPPORT£38.44 Add to
0066981100SCREWS OUTFIT (OBSOLETE) (OBSOLETE)N/A
0076981263Screw set£4.01 Add to
0086981142Nut£4.01 Add to
0096981230Switch£6.69 Add to
0106981231LEFT HALF-HANDGRIP£15.74 Add to
0116981269SCREW£3.64 Add to
0126981232Spring£6.58 Add to
0136981228Throttle lever£6.58 Add to
0146981229Safety lever£5.66 Add to
0156981226Spring£5.69 Add to
0166981225RIGHT HALF-HANDGRIP 2008£15.74 Add to
0176981227Button£5.66 Add to
0186981149SCREW£4.01 Add to
0196981233THROTTLE CABLE£14.58 Add to
0216981234FRONT HANDLE£34.11 Add to
0226981235Barrier tube£14.09 Add to
0236981282Screw£4.01 Add to
0246981274Washer£4.01 Add to
0256981141Nut£4.01 Add to
0266981209Support-harness£13.73 Add to
0276981145SCREW (OBSOLETE)N/A
0296981291TRANSMISSION PIPE£16.16 Add to
0306981312TRANSMISSION SHAFT£50.70 Add to
0316981309JOINT ASSY.£54.30 Add to
0326981290Knob£7.19 Add to
0336981292TRANSMISSION PIPE£25.01 Add to
0356981268SCREW£2.00 Add to
0366981260Screw£4.01 Add to
0376981212Bracket£7.50 Add to
0386981213Nut£4.01 Add to
0616981210HARNESS£24.34 Add to
0989959905SAFETY GOOGLES£5.21 Add to
