ENGINE

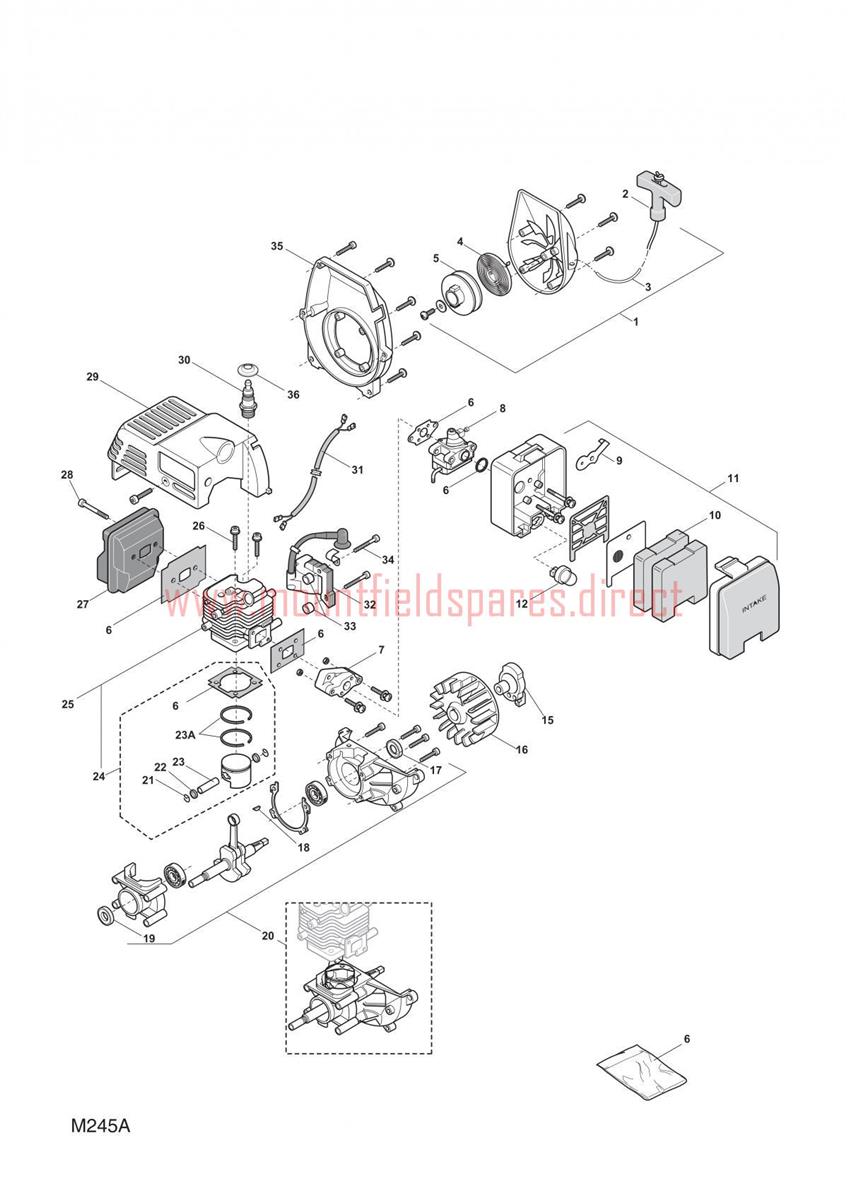

ENGINE assembly details for Mountfield MB22CX 2007 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6980231	STARTER ASSY J.F. 2008	£36.75	Add to
002	6980232	Starter handle	£7.19	Add to
003	6980233	Starter rope	£7.19	Add to
004	6980234	RECOIL SPRING	£9.23	Add to
005	6980235	PULLEY	£10.23	Add to
006	6980236	GASKET SET	£6.23	Add to
007	6980237	Intake manifold	£9.88	Add to
008	6980238	CARBURETTOR J.F.	£132.70	Add to
009	6980239	Choke plate	£7.19	Add to
010	6980240	Filter element (OBSOLETE) (OBSOLETE)	N/A
011	6980241	AIR FILTER ASSEMBLY (OBSOLETE) (OBSOLETE)	N/A
012	118804231/0	PRIMER BULB	£6.23	Add to
015	6980270	STARTER CUP ASSEMBLY	£11.59	Add to
016	6980246	FLY WHEEL J.F.	£83.59	Add to
017	6980247	Seal ring	£20.56	Add to
018	6980248	Key	£4.01	Add to
020	6980250/1	Short block	£230.24	Add to
021	6980251	Lock ring	£4.01	Add to
022	6980252	Gasket	£7.19	Add to
023	6980253	Piston pin	£4.01	Add to
024	6980254	PISTON ASS'Y J.F.	£52.12	Add to
025	6980255	Cylinder-piston assy	£139.63	Add to
026	6980256	Screw	£4.01	Add to
027	6980257	MUFFLER J.F.	£33.04	Add to
028	6980258	Screw	£4.01	Add to
029	6980259/1	GREY CYLINDER COVER 9017-33050	£24.97	Add to
030	3210024	SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A	£4.52	Add to
031	6980260	Wire harness	£7.19	Add to
032	6980261	IGNITION COIL	£65.02	Add to
033	6980262	Spacer	£5.69	Add to
034	6980263	Screw	£4.01	Add to
035	6980264	FLYWHEEL COVER	£17.64	Add to
036	6980265	Spark plug cap	£7.19	Add to
23A	6980266	PISTON RING J.F.	£9.39	Add to
