DRIVE SHAFT

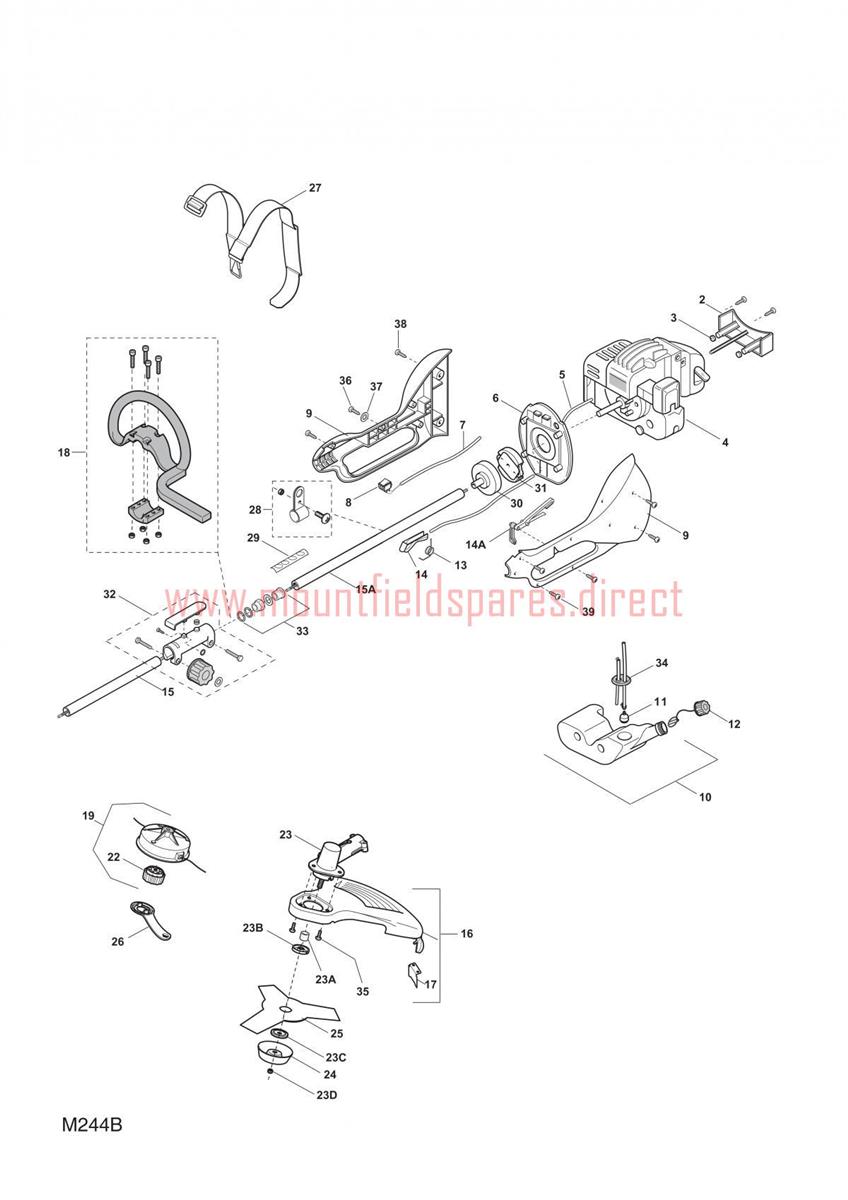

DRIVE SHAFT assembly details for Mountfield MB22CX 2007 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0026980200FIXED PLATE J.F.£9.48 Add to
0036980201ISOLATOR J.F.£5.66 Add to
0046980230Engine assyN/A POA
0056980318THROTTLE CABLE£12.94 Add to
0066980204COVER J.F.£34.95 Add to
0076980205WIRE J.F.£7.19 Add to
0086980328SWITCH (OBSOLETE) (OBSOLETE)N/A
0096980325HOUSING ASSY, RED 2008£52.74 Add to
0106980208/1FUEL TANK ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
0116980209FUEL PICK-UP£11.05 Add to
0126980320FUEL TANK CAP (OBSOLETE)N/A
0136980211SPRING J.F.£7.19 Add to
0146980322THROTTLE LEVER 9028-330601£7.19 Add to
0156980326FRONT SHAFT & FLEXIBLE DRIVE£52.06 Add to
0166980302SHIELD ASS.Y 9228-330621£39.80 Add to
0176980215LINE CUTTER BLADE£4.52 Add to
0186980303FRONT HANDLE ASS.Y 9228-330613£33.86 Add to
0196980300Cutting head assy£26.87 Add to
0226980332LEFT HANDED KNOB£5.61 Add to
0236980306GEAR CASE ASSEMBLY£143.37 Add to
0246980312STABILIZER BOWL£5.60 Add to
0256980330BLADE 3 TEETH Ø 230-25.4 HOLE 1.4mm£9.31 Add to
0266980314Nylon head key£7.19 Add to
0276980315HARNESS£16.10 Add to
0286980316Harness support£7.19 Add to
0296980317Label£7.19 Add to
0306980225CLUTCH DRUM£32.99 Add to
0316980224CLUTCH£26.92 Add to
0326980221Tube joint assyN/A POA
0336980220SHAFTING - SLEEVE ASS'Y J.F.£13.64 Add to
0346980208/1FUEL TANK ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
0352135180TORX SCREW M5 x 12£1.79 Add to
0366980333Screw£4.01 Add to
0376980334Washer£4.01 Add to
0386980335Screw£4.01 Add to
0396980336Screw£4.01 Add to
0989959905SAFETY GOOGLES£5.21 Add to
0991911-9007-04CUTTING LINE (130M-2.0MM)£50.54 Add to
0991911-9007-08Cutting line (2.4 mm)£12.24 Add to
14A6980324Safety lever£7.19 Add to
15A6980327REAR SHAFT & FLEXIBLE DRIVE (OBSOLETE) (OBSOLETE)N/A
23A6980307COLLAR 9124-330309£7.19 Add to
23B6980308UPPER RING NUT£9.54 Add to
23C6980309LOWER RING NUT£10.33 Add to
23D6980311LEFT NUT£7.27 Add to
