TRIMMER

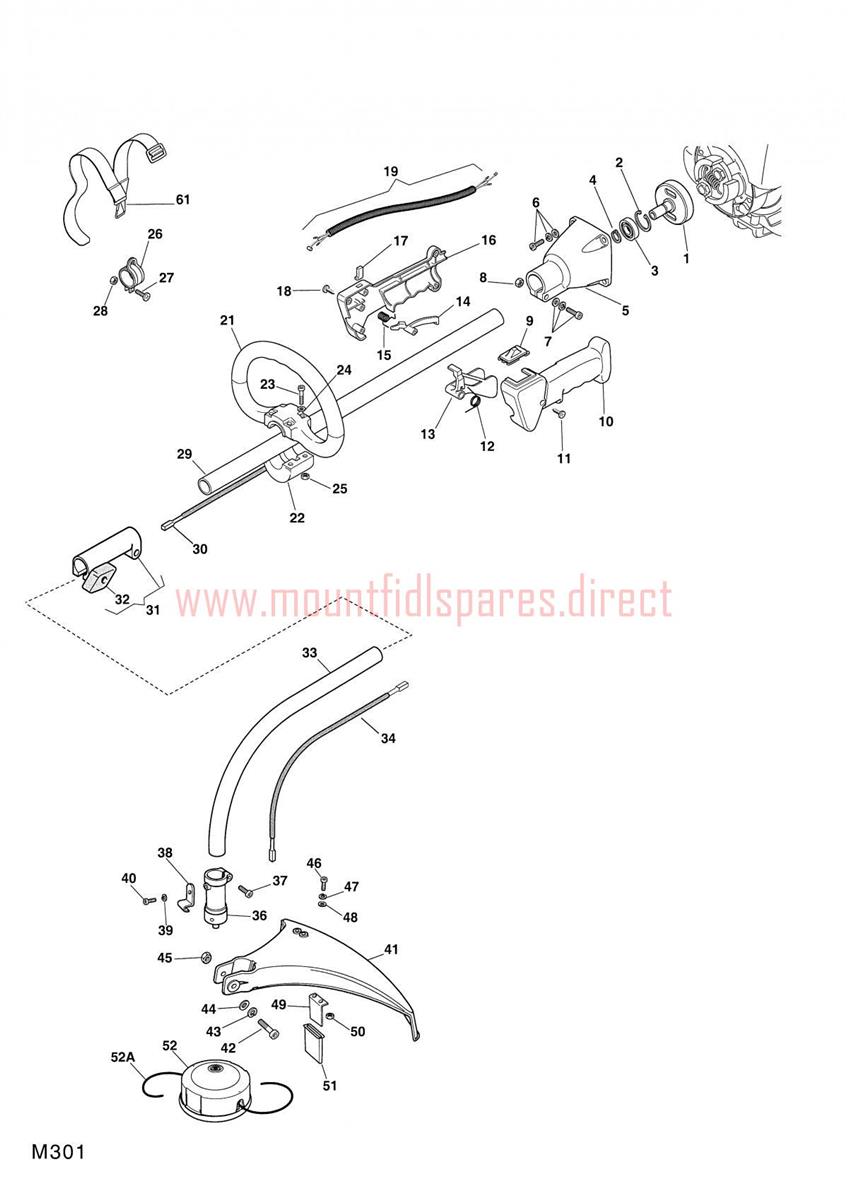

TRIMMER assembly details for Mountfield MT25J 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6981311	Clutch drum	£21.93	Add to
002	6981271	Ring	£4.01	Add to
003	6981256	NEEDLE BEARING	£18.69	Add to
004	6981272	Ring	£4.01	Add to
005	6981207	TRANSMISSION SUPPORT	£38.44	Add to
006	1911-4425-01	Screw set	N/A	POA
007	6981263	Screw set	£4.01	Add to
008	1911-4357-01	Nut	N/A	POA
009	6981230	Switch	£6.69	Add to
010	6981231	LEFT HALF-HANDGRIP	£15.74	Add to
011	6981269	SCREW	£3.64	Add to
012	6981232	Spring	£6.58	Add to
013	6981228	Throttle lever	£6.58	Add to
014	6981229	Safety lever	£5.66	Add to
015	6981226	Spring	£5.69	Add to
016	6981225	RIGHT HALF-HANDGRIP 2008	£15.74	Add to
017	6981227	Button	£5.66	Add to
018	1911-4364-01	Screw	N/A	POA
019	6981233	THROTTLE CABLE	£14.58	Add to
021	6981234	FRONT HANDLE	£34.11	Add to
022	6981289	Support-lower	£9.16	Add to
023	6981282	Screw	£4.01	Add to
024	6981274	Washer	£4.01	Add to
025	6981296	Nut	£4.01	Add to
026	6981209	Support-harness	£13.73	Add to
027	1911-4360-01	Screw	N/A	POA
028	1911-4356-01	Nut	N/A	POA
029	6981291	TRANSMISSION PIPE	£16.16	Add to
030	6981294	TRANSMISSION SHAFT (L=660mm)	£13.80	Add to
031	6981310	JOINT ASSEMBLY	£54.30	Add to
032	6981290	Knob	£7.19	Add to
033	6981295	Transmission tube	N/A	POA
036	6981304	HEAD SHAFT ASSY	£53.42	Add to
037	1911-4335-01	Screw set	N/A	POA
038	6981305	Plate	£6.58	Add to
039	6981303	Washer	£4.01	Add to
040	6981299	Screw	£4.01	Add to
041	6981307	Safety cover (OBSOLETE) (OBSOLETE)	N/A
042	6981298	Screw	£4.01	Add to
043	6981301	Spring washer	£4.01	Add to
044	1911-4370-01	Washer	N/A	POA
045	6981297	Nut	£4.01	Add to
047	6981300	Washer (OBSOLETE) (OBSOLETE) (OBSOLETE)	N/A
049	6981306	Line cutter	£7.50	Add to
051	6981222	Guard	£7.19	Add to
052	6981308	NYLON HEAD [M8-FEMALE LH-THREAD]	£31.63	Add to
061	6981210	HARNESS	£24.34	Add to
099	9959905	SAFETY GOOGLES	£5.21	Add to
52A	1911-9008-04	Cutting line (2.4 mm)	£49.84	Add to
52A	1911-9008-08	Cutting line (2.4 mm)	£9.54	Add to
