DRIVE SHAFT

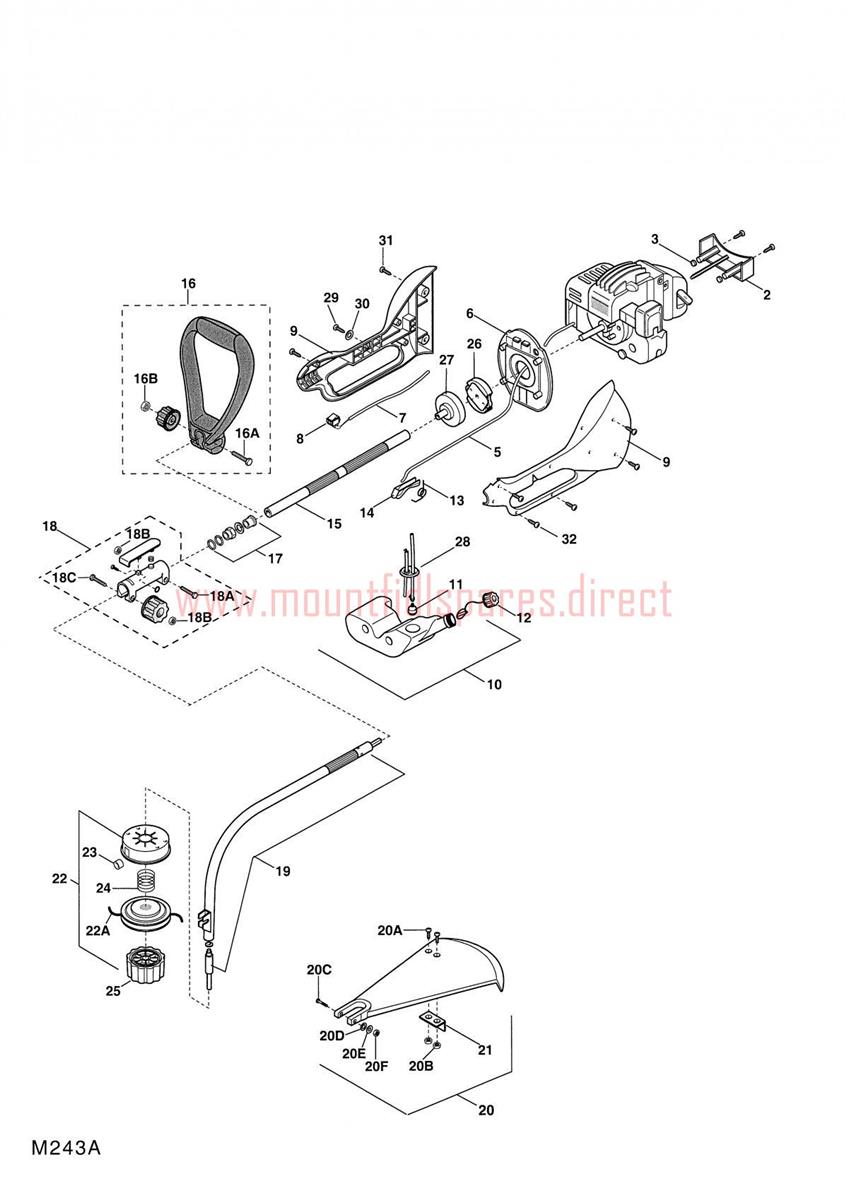

DRIVE SHAFT assembly details for Mountfield MT22CX 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0026980200FIXED PLATE J.F.£9.48 Add to
0036980201ISOLATOR J.F.£5.66 Add to
0051911-3773-01Throttle cableN/A POA
0066980204COVER J.F.£34.95 Add to
0076980205WIRE J.F.£7.19 Add to
0081911-3765-01SwitchN/A POA
0096980269Housing (L+R), redN/A POA
0106980208/1FUEL TANK ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
0116980209FUEL PICK-UP£11.05 Add to
0126980320FUEL TANK CAP (OBSOLETE)N/A
0136980211SPRING J.F.£7.19 Add to
0141911-3770-01Throttle triggerN/A POA
0151911-3775-01Rear tube w.flex shafN/A POA
0161911-3756-01Handle assyN/A POA
0176980220SHAFTING - SLEEVE ASS'Y J.F.£13.64 Add to
0181911-3777-01Tube joint (OBSOLETE)N/A
0191911-3778-01Front tube w.flex sh. (OBSOLETE)N/A
0201911-3771-01Shield assyN/A POA
0216980215LINE CUTTER BLADE£4.52 Add to
0221911-3760-01Cutterhead assy (OBSOLETE)N/A
0231911-3759-01GrommetN/A POA
0241911-3758-01SpringN/A POA
0251911-3927-01Knob (RH-thread)N/A POA
0261911-3779-01ClutchN/A POA
0271911-3780-01Clutch drumN/A POA
0286980208/1FUEL TANK ASSEMBLY (OBSOLETE) (OBSOLETE)N/A
0291911-4262-01ScrewN/A POA
0301911-4263-01WasherN/A POA
0311911-4264-01ScrewN/A POA
0321911-4265-01ScrewN/A POA
16A9997-0660-12SCREW M6S M6 x 60£1.79 Add to
16B112292100/0HEXAGON NUT M6£1.47 Add to
18A9939-0630-12Screw£4.01 Add to
18C112674700/0SCREW M6 X 35£2.06 Add to
20A9865-0520-16ScrewN/A POA
20B9739-0531-22NUT M5£2.47 Add to
20D112521330/0WASHER M6 6.4 x 12 x 1.6£2.06 Add to
20E9683-0025-02WASHER£2.06 Add to
20F112154510/0LOW SELF-LOCKING NUT M6 UNI7474 ACC.6S£2.06 Add to
22A1911-9007-04CUTTING LINE (130M-2.0MM)£50.54 Add to
22A1911-9007-08Cutting line (2.4 mm)£12.24 Add to
