DRIVE SHAFT

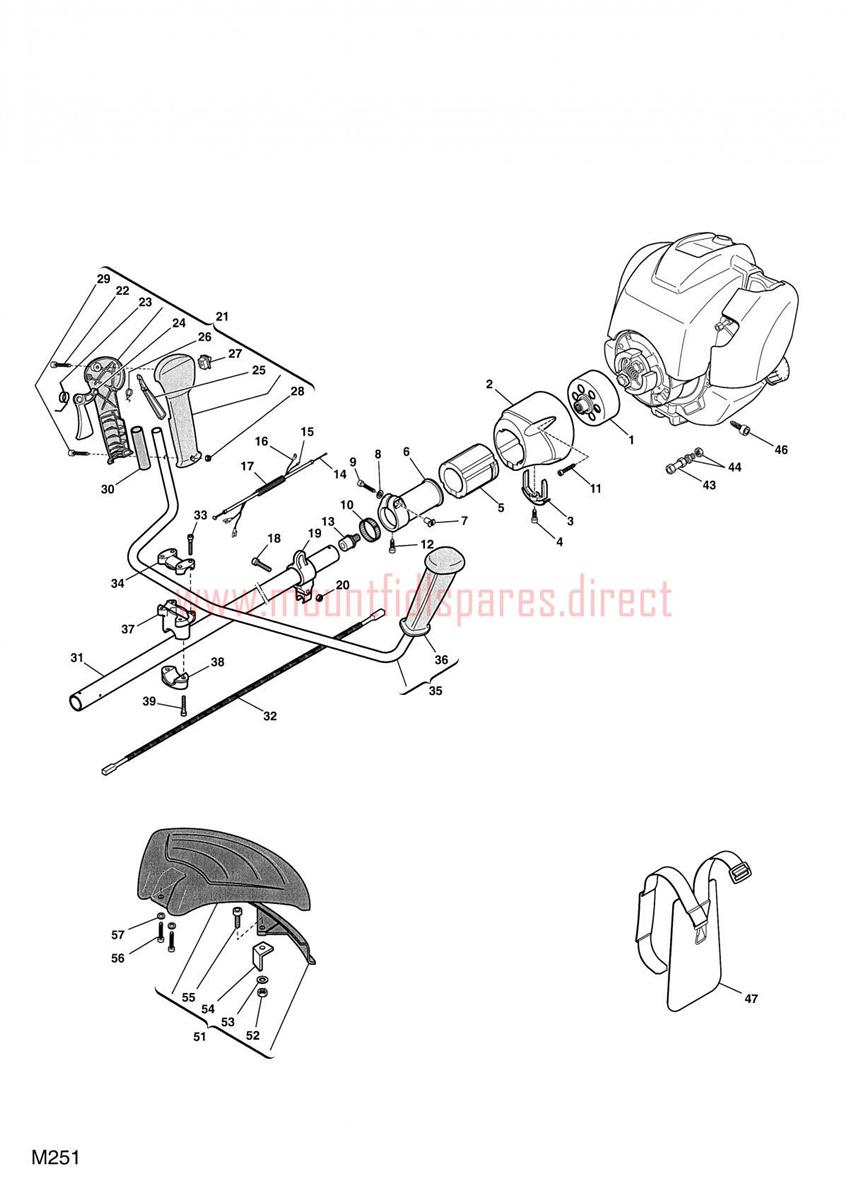

DRIVE SHAFT assembly details for Mountfield MB425D 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1911-4206-01	Clutch drum	N/A	POA
002	1911-4189-01	Transmission support	N/A	POA
003	1911-4154-01	Fork	N/A	POA
004	2123100	SCREW M4 8 x 13	£1.79	Add to
005	1911-4155-01	Grommet	N/A	POA
006	1911-4188-01	Support	N/A	POA
007	1911-4245-01	Bushing	N/A	POA
008	1911-3267-01	Washer	N/A	POA
009	2135040	TORX SCREW M5 x 18	£1.79	Add to
010	1911-4236-01	Reduction	N/A	POA
011	1911-3011-01	Screw	£4.01	Add to
013	1911-4176-01	Bearing hub	N/A	POA
014	1911-4135-01	Throttle wire	N/A	POA
015	1911-4128-01	Coil-switch cable	N/A	POA
016	1911-4129-01	Ground cable	N/A	POA
017	1911-3704-01	Wire sheath	N/A	POA
019	1911-4187-01	Harness support	N/A	POA
020	1911-3278-01	Nut	N/A	POA
021	1911-3203-01	Handle assy	N/A	POA
022	2123030	TORX SELF-THREAD SCREW	£1.79	Add to
023	1911-3089-01	Spring	N/A	POA
024	1911-3108-01	Throttle lever	N/A	POA
025	1911-3109-01	Safety lever	N/A	POA
026	1911-3090-01	Spring	N/A	POA
027	118800202/0	EXTINCTION SWITCH	£2.18	Add to
028	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
029	1911-3008-01	Screw	£4.01	Add to
030	1911-4181-01	Reduction	N/A	POA
031	1911-4253-01	Transmission tube	N/A	POA
032	1911-4258-01	Transmission shaft	N/A	POA
033	1911-3009-01	Screw	N/A	POA
034	1911-4203-01	Handle support-upper	N/A	POA
035	1911-4214-01	Handle assy	N/A	POA
036	1911-4172-01	Grip-LH	N/A	POA
037	1911-4202-01	Handle support-middle	N/A	POA
038	1911-4257-01	Handle support-lower	N/A	POA
043	1911-3998-01	Throttle cable adjust	N/A	POA
044	1911-4000-01	Nut	N/A	POA
046	1911-3261-01	Screw	N/A	POA
047	1911-3724-01	Harness	N/A	POA
051	1911-3201-01	Safety cover assy	N/A	POA
052	1911-3022-01	Nut	£4.01	Add to
053	2312150	WASHER 5.5 x 15 x 1.5	£1.79	Add to
054	1911-3077-01	Line cutter	N/A	POA
055	1911-3006-01	Screw	£4.01	Add to
099	9959905	SAFETY GOOGLES	£5.21	Add to
