GEAR CASE

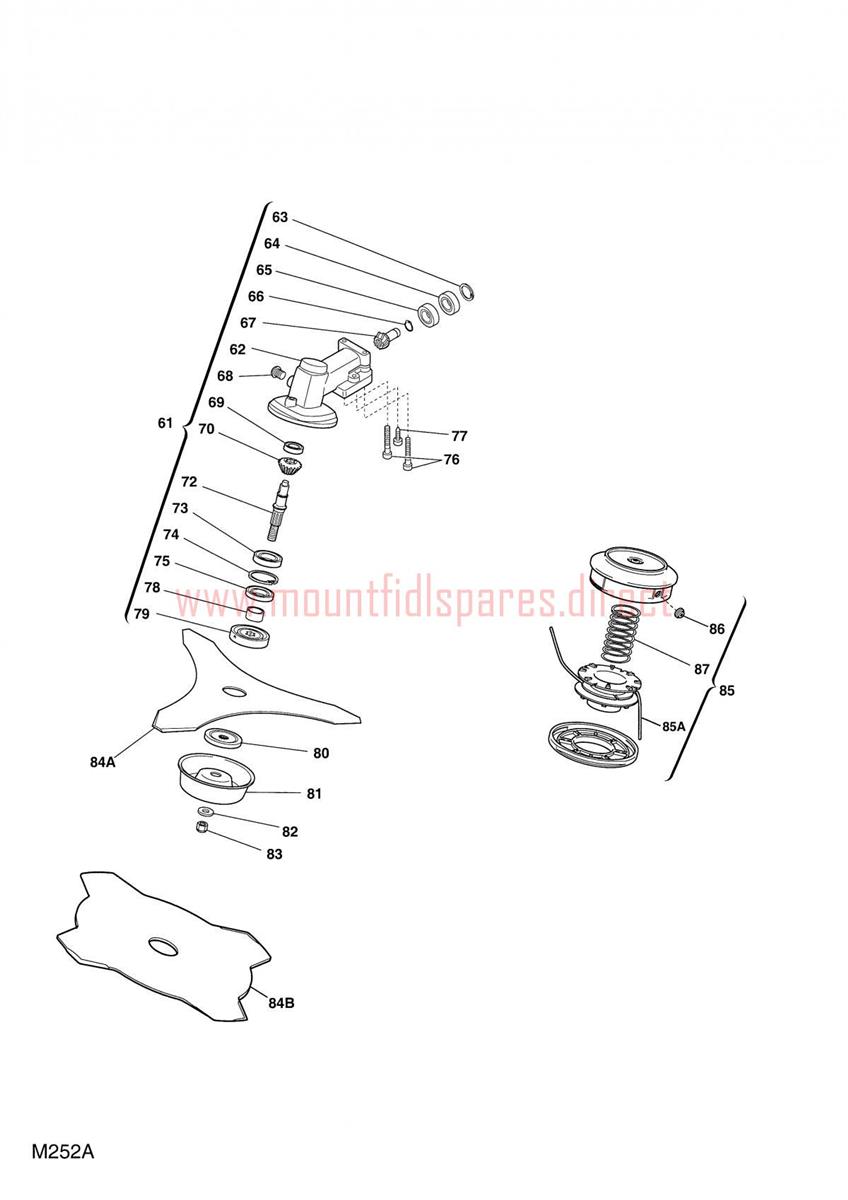

GEAR CASE assembly details for Mountfield MB425 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
061	1911-4222-01	Gear case assy	N/A	POA
062	1911-4124-01	Gear case	N/A	POA
063	1911-3678-01	Lock ring	N/A	POA
064	1911-3662-01	Ball bearing	N/A	POA
065	1911-3038-01	Ball bearing	N/A	POA
066	1911-3677-01	Lock ring	N/A	POA
067	1911-4234-01	Pinion	N/A	POA
068	1911-3029-01	Screw	N/A	POA
069	1911-3663-01	Ball bearing	N/A	POA
070	1911-4457-01	Ring gear	N/A	POA
072	1911-4441-01	Shaft	N/A	POA
073	1911-3039-01	Ball bearing	N/A	POA
074	1911-3679-01	Lock ring	N/A	POA
075	1911-3664-01	Seal ring	N/A	POA
076	1911-3008-01	Screw	£4.01	Add to
077	1911-3025-01	Screw	N/A	POA
078	1911-3690-01	Collar	N/A	POA
079	1911-3683-01	Ring nut-upper	N/A	POA
080	1911-3680-01	Ring nut-lower	N/A	POA
081	1911-4242-01	Stabilizer	N/A	POA
082	1911-4228-01	Washer	N/A	POA
083	1911-4232-01	Nut	N/A	POA
085	323155000/0	NYLON HEAD [M10-FEMALE LH-THREAD]	£24.57	Add to
086	3643430	EYELET	£5.85	Add to
087	1911-3876-01	Spring	N/A	POA
098	1911-3853-01	GREASE TUBE FOR BRUSH CUTTERS	£15.55	Add to
099	1911-3850-01	Blade guard	N/A	POA
84A	1911-4530-01	Clearing blade	N/A	POA
84B	1911-3179-01	Clearing blade	N/A	POA
85A	1911-9008-04	Cutting line (2.4 mm)	£49.84	Add to
85A	1911-9008-08	Cutting line (2.4 mm)	£9.54	Add to
