GEAR CASE

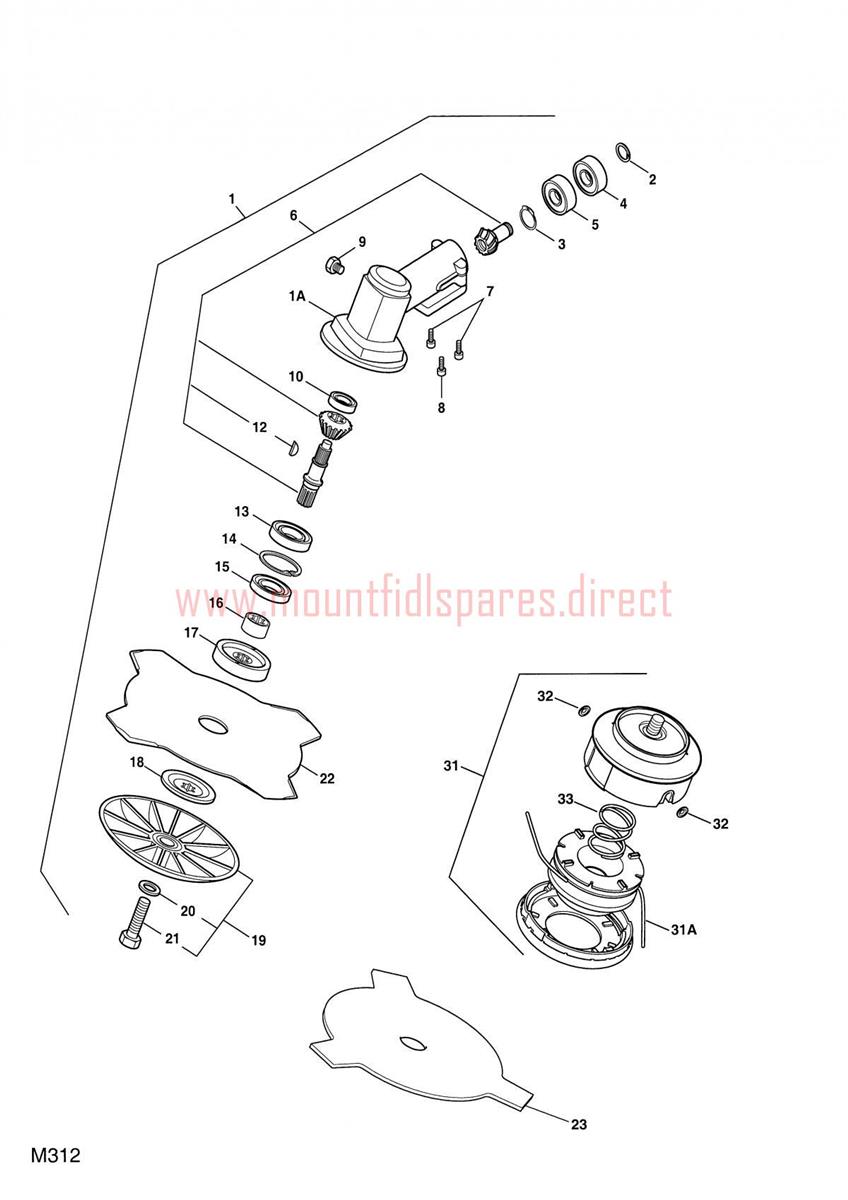

GEAR CASE assembly details for Mountfield MB36D 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	3L4252780/1	GEAR CASE ASSEMBLY D=26	£136.64	Add to
002	3353100	Circlip	£4.01	Add to
003	3353050	CIRCLIP D10	£2.00	Add to
004	3112200	BALL BEARING 10X26X8	£9.00	Add to
005	3112190	BEARING	£24.95	Add to
006	8180240	Worm gear	£121.09	Add to
007	2135050	TORX SCREW M5 x 30	£1.79	Add to
008	2653090	SCREW M5X11,5	£1.79	Add to
009	2653460	SCREW	£4.52	Add to
010	3112210	BALL BEARING 609	£13.77	Add to
012	3151050	FLYWHEEL KEY 3 x 5 x 12.65	£6.14	Add to
013	3112150	BEARING	£20.51	Add to
014	3353080	CIRCLIP D=32mm	£1.79	Add to
015	3121170	RING 22X32X7	£4.52	Add to
016	1L3641700/1	SPACER	£9.28	Add to
017	3641640	UPPER RING NUT	£10.36	Add to
018	3612640	LOWER RING NUT	£7.51	Add to
019	4560610	STABILIZER BOWL 127mm X 8M (OBSOLETE) (OBSOLETE)	N/A
01A	4540570	Gear case	£72.48	Add to
020	2321230	WASHER 8.2 x 18 x 1	£1.79	Add to
021	2653170	BOLT M8 X 28	£5.19	Add to
022	4611880	BLADE 4 TEETH 255mm	£12.40	Add to
023	6031172	BLADE 3 TEETH 255mm	£9.41	Add to
031	3L4353240/1	NYLON HEAD [M8-MALE LH-THREAD]	£23.87	Add to
032	3643430	EYELET	£5.85	Add to
033	3654590	SPRING	£7.78	Add to
31A	1911900804	Cuttinlin(2.mm)	N/A	POA
31A	1911900808	Cuttinlin(2.mm)	N/A	POA
