DRIVE SHAFT

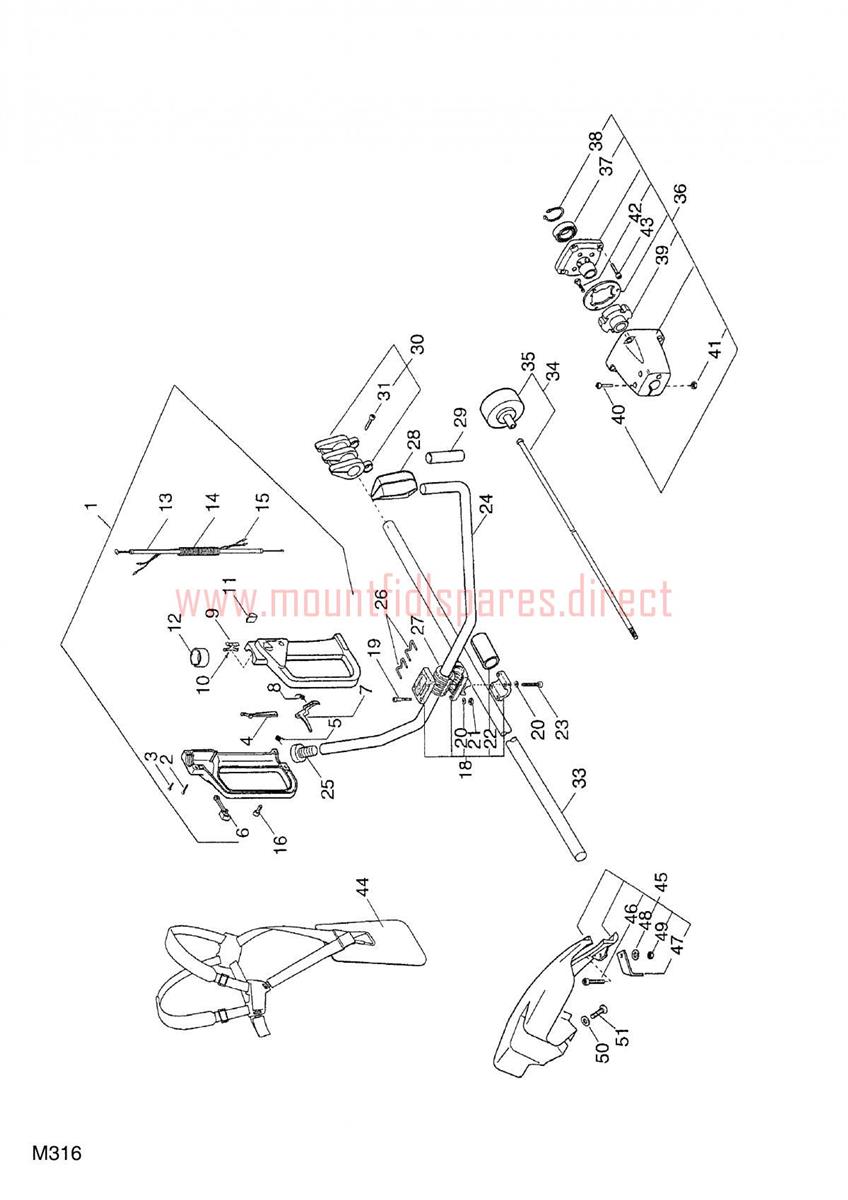

DRIVE SHAFT assembly details for Mountfield MB36D 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	8562611	Handle assy	£134.66	Add to
002	2123030	TORX SELF-THREAD SCREW	£1.79	Add to
003	2135050	TORX SCREW M5 x 30	£1.79	Add to
004	3743475	SAFETY LEVER	£3.15	Add to
005	3654280/1	Spring	£4.60	Add to
006	3743485	Stop throttle lever	£7.19	Add to
007	3743465	THROTTLE LEVER	£4.82	Add to
008	3654270/1	Spring	£4.60	Add to
009	3612710	Stop Plate	£5.66	Add to
010	2123070	TORX SELF-THREAD SCREW	£1.79	Add to
011	3749270	STOP KNOB	£1.79	Add to
012	3749910	Reduction	£4.01	Add to
013	4251571	THROTTLE CABLE	£10.36	Add to
014	3782920	WIRE SHEATH	£19.90	Add to
015	8211130	Stop wire	£10.06	Add to
016	2123100	SCREW M4 8 x 13	£1.79	Add to
018	4250390	SUPPORT ASS.Y	£62.98	Add to
019	2135120	SCREW TX M5 x 40	£1.79	Add to
020	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
021	112154330/0	LOW SELF-LOCKING NUT M5	£2.06	Add to
022	3721340	RUBBER THICKNESS	£2.47	Add to
023	2123110	SCREW 4.8 x 35	£1.79	Add to
024	8620510	HANDLEBAR ASS.Y DUPLEX	£113.03	Add to
025	3749860	Plug	N/A	POA
026	3657470	HANDLE LOCK DUPLEX	£1.79	Add to
027	3744160	SHOCK ABSORBER	£10.25	Add to
028	4561640	Hand guard	N/A	POA
029	3744610	LEFT KNOB	£7.34	Add to
030	8562510	ASS.SUPPORTO BRETELLE VIP 34D42D	£36.39	Add to
031	2123140	Screw	£4.01	Add to
033	8251201	TRANSMISSION PIPE	£54.01	Add to
034	4251400	TRANSMISSION SHAFT ASSY	£50.22	Add to
035	3L4121861/1	CLUTCH DRUM	£21.40	Add to
036	8541000	Transmission support	£179.68	Add to
037	3112170	Bearing (OBSOLETE)	N/A
038	3353080	CIRCLIP D=32mm	£1.79	Add to
039	3744260	SHOCK ABSORBER	£6.55	Add to
040	2135130	TORX SCREW M5 x 35	£1.79	Add to
041	2432040	NUT M5	£1.79	Add to
042	2135040	TORX SCREW M5 x 18	£1.79	Add to
043	2135160	SCREW TX M6 x 19	£1.79	Add to
044	4253440	SINGLE HARNESS	£28.90	Add to
045	8562763	Safety cover assy	N/A	POA
046	2135030	TORX SCREW M5 x 20	£1.79	Add to
047	3614210	LINE CUTTER BLADE	£7.19	Add to
048	2312150	WASHER 5.5 x 15 x 1.5	£1.79	Add to
051	2135060	TORX SCREW M5 x 25	£2.00	Add to
