BRUSH CUTTER STARTER

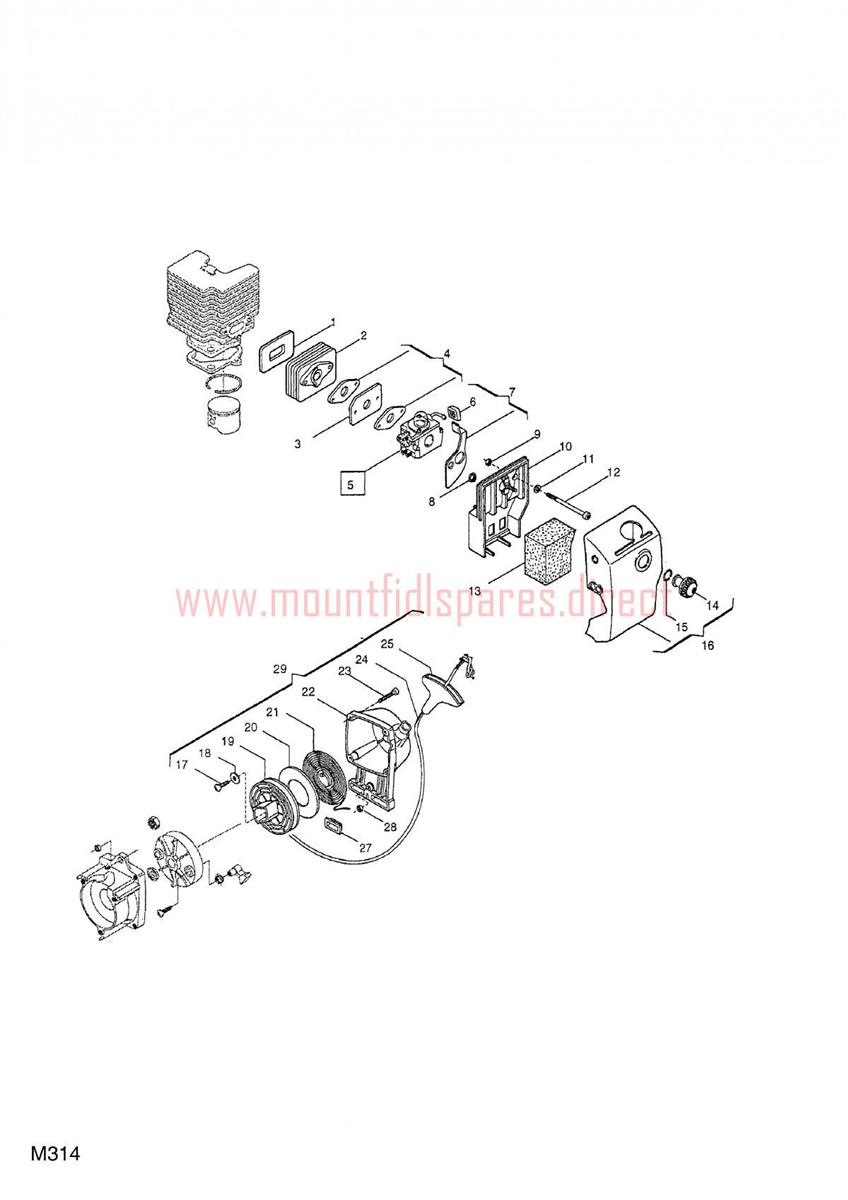

BRUSH CUTTER STARTER assembly details for Mountfield MB28D 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	3724060	INTAKE MANIFOLD GASKET (OBSOLETE) (OBSOLETE)	N/A
002	3749660	INTAKE MANIFOLD 2004	£31.74	Add to
003	3785040	Heat block	N/A	POA
004	3724020	INTAKE CARB. GASKET	£5.19	Add to
005	4153990	CARBURETTOR WT-260B	£170.61	Add to
006	3745550	KNOB FOR AIR-LEVER	£5.60	Add to
007	8613450	Choke lever (OBSOLETE) (OBSOLETE)	N/A
008	2382150	Bush	£7.19	Add to
009	2382140	Bush	£7.19	Add to
010	3749933	FILTER BASE RED DC 21/40	£16.55	Add to
011	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
012	2135220	SCREW (OBSOLETE)	N/A
013	3781420	AIR FILTER	£2.06	Add to
014	8749953	COVER CAP AIR FILTER RED	£13.80	Add to
015	3356030	Lock washer	£4.01	Add to
016	8562643	Air cleaner cover-red (OBSOLETE) (OBSOLETE)	N/A
017	2123100	SCREW M4 8 x 13	£1.79	Add to
018	3613420	WASHER D.5 2 x 15 x 0.82	£1.79	Add to
019	4562220	STARTER PULLEY	£4.91	Add to
020	3723640	SPRING DISC	£4.52	Add to
021	4611480	STARTER SPRING	£9.00	Add to
022	8562663	RECOIL CASE [RED]	£28.57	Add to
023	2135040	TORX SCREW M5 x 18	£1.79	Add to
024	3784030	RECOIL ROPE	£2.47	Add to
025	3750067	STARTER HANDLE	£2.74	Add to
027	3745530	GROMMET	£2.00	Add to
028	2432030	NUT 25	£1.79	Add to
029	4251813	RECOIL ASSEMBLY [RED]	£72.10	Add to
