BRUSH CUTTER GEAR CASE

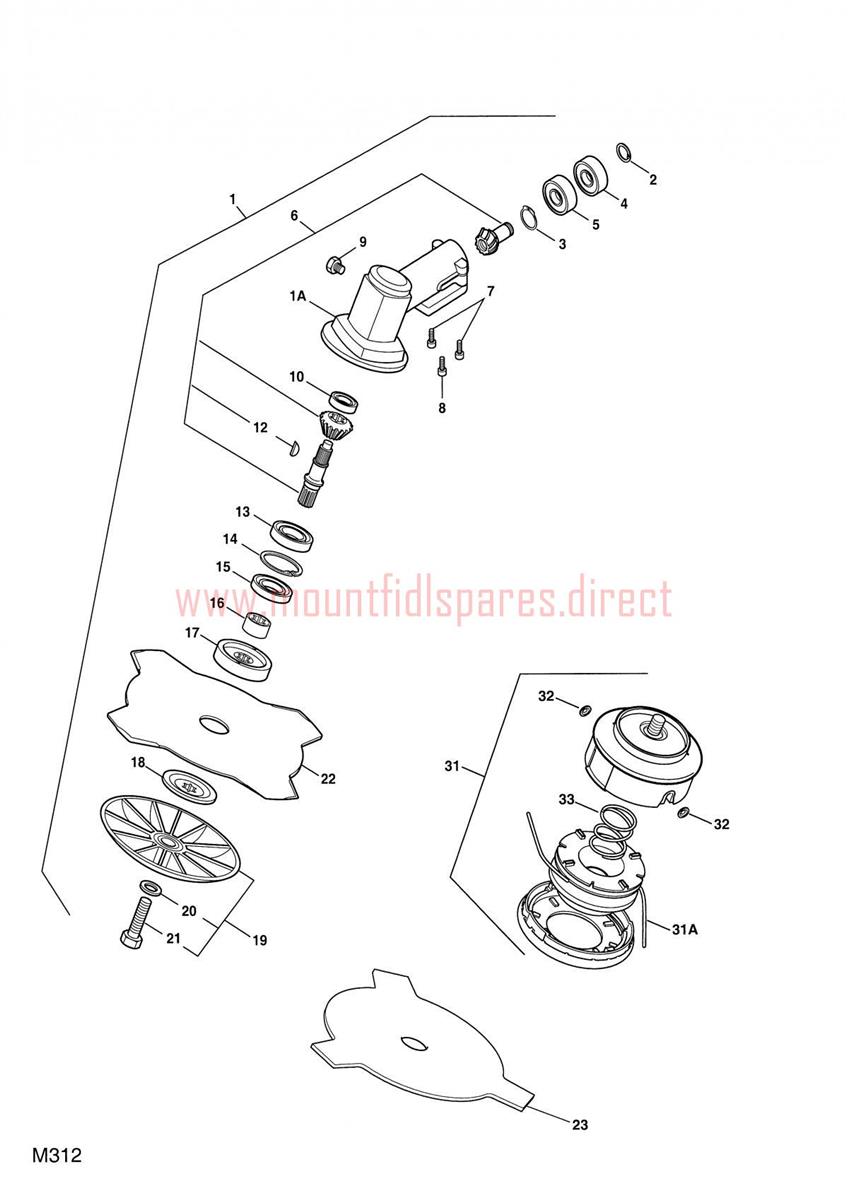

BRUSH CUTTER GEAR CASE assembly details for Mountfield MB28D 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0013L4250160/1GEAR CASE ASSEMBLY£238.28 Add to
0023353120RING£5.19 Add to
0033353070CIRCLIP 9£5.19 Add to
0043112220BALL BEARING 9X24X7£4.27 Add to
0053112210BALL BEARING 609£13.77 Add to
0068180260Worm gearN/A POA
0072135050TORX SCREW M5 x 30£1.79 Add to
0082653090SCREW M5X11,5£1.79 Add to
0092653460SCREW£4.52 Add to
0103112230BALL BEARING 608£5.32 Add to
0123151050FLYWHEEL KEY 3 x 5 x 12.65£6.14 Add to
0133112240NEEDLE BEARING£10.50 Add to
0143353130RING£1.79 Add to
0153121180OIL SEAL 18 x 28 x 7£4.52 Add to
0163660680COLLAR£6.01 Add to
0173641650UPPER RING NUT£9.68 Add to
0183612650LOWER RING NUT£5.45 Add to
0194560610STABILIZER BOWL 127mm X 8M (OBSOLETE) (OBSOLETE)N/A
01A4540580/1Gear case£74.49 Add to
0202321230WASHER 8.2 x 18 x 1£1.79 Add to
0212653170BOLT M8 X 28£5.19 Add to
0224611880BLADE 4 TEETH 255mm£12.40 Add to
0236031172BLADE 3 TEETH 255mm£9.41 Add to
0313L4353240/1NYLON HEAD [M8-MALE LH-THREAD]£23.87 Add to
0323643430EYELET£5.85 Add to
0333654590SPRING£7.78 Add to
31A1911-9008-04Cutting line (2.4 mm)£49.84 Add to
31A1911-9008-08Cutting line (2.4 mm)£9.54 Add to
