BRUSH CUTTER ENGINE

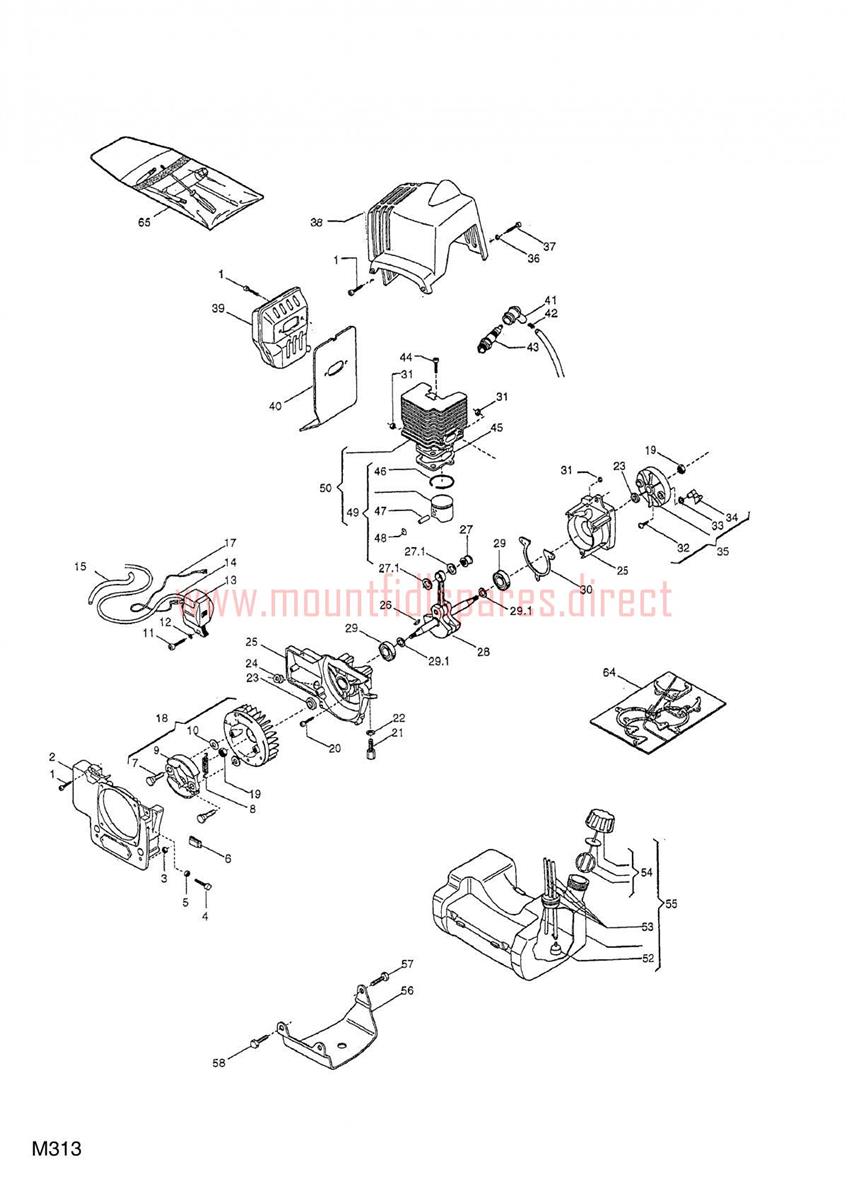

BRUSH CUTTER ENGINE assembly details for Mountfield MB28D 2006 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	2135040	TORX SCREW M5 x 18	£1.79	Add to
002	4540820	TRANSM. SUPPORT CASE	£61.08	Add to
003	2432040	NUT M5	£1.79	Add to
004	2132500	SCREW (OBSOLETE)	N/A
005	2312120	FLAT WASHER D=4X9X0,8	£1.79	Add to
006	3745530	GROMMET	£2.00	Add to
007	2653280	SCREW	£1.79	Add to
008	3654090	SPRING	£5.32	Add to
009	3660450	CLUTCH UNIT (OBSOLETE) (OBSOLETE)	N/A
010	2321100	Washer	N/A	POA
011	2132510	SCREW TCCE M4 x 22 - NLA	£1.79	Add to
012	2321050	WASHER 4 x 10 x 0.5	£1.79	Add to
013	3210660	IGNITION COIL	£74.62	Add to
014	3211080	SPARK PLUG CABLE (OBSOLETE) (OBSOLETE)	N/A
015	3782470	WIRE SHEATH	£10.77	Add to
017	3210853	Ground terminal cable (OBSOLETE) (OBSOLETE)	N/A
018	4251471	FLYWHEEL ASS'Y	£77.95	Add to
019	2670120	DESC NOT_AVAILABLE	£3.78	Add to
020	2135050	TORX SCREW M5 x 30	£1.79	Add to
021	3630600/1	Throttle Cable Adjuster	£4.60	Add to
022	2412090	NUT 6X4 ZINC-PLATED	£1.79	Add to
023	3121070	SEAL RING 12 x 22 x 4.55	£5.46	Add to
024	3745130	GROMMET	£1.79	Add to
025	8541270	Crankcase	£100.74	Add to
026	3151010	FLYWHEEL KEY 2.5 x 3.7 x 8.6 x 70	£1.79	Add to
027	3116100	NEEDLE BEARING 8 x 12 x 10	£7.92	Add to
028	4251950	CRANKSHAFT	£154.73	Add to
029	3112240	NEEDLE BEARING	£10.50	Add to
030	3724031	GASKET	£3.83	Add to
032	2123100	SCREW M4 8 x 13	£1.79	Add to
033	3654050	SPRING	£1.79	Add to
034	3749570	STARTER HOOK	£1.79	Add to
035	8540810	STARTER CUP ASSEMBLY	£40.39	Add to
036	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
037	2135180	TORX SCREW M5 x 12	£1.79	Add to
038	4562583	Cylinder cover-red	N/A	POA
039	4121910	Muffler	N/A	POA
040	3724040	MUFFLER GASKET DC 2125	£10.56	Add to
041	3748880	SPARK PLUG CAP	£2.47	Add to
042	3657050	SPARK PLUG SPRING	£3.83	Add to
043	3210024	SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A	£4.52	Add to
044	2135150	TORX SCREW M6 x 23	£1.79	Add to
045	3724250	CYLINDER GASKET	£2.00	Add to
046	3123210	PISTON RING 35	£5.32	Add to
047	3158220	PISTON PIN 8X26 MOD 25/30	£4.10	Add to
048	3356050	CIRCLIP	£1.79	Add to
049	8541103	Piston assy	N/A	POA
050	8541093	CYLINDER-PISTON ASSY D.35	£200.38	Add to
052	4253290	FUEL INTAKE FILTER	£12.68	Add to
053	8745540	GROMMET ASSEMBLY	£16.36	Add to
054	4251197	Fuel tank cap	N/A	POA
055	4251387	FUEL TANK	£56.15	Add to
056	4612187	Fuel tank cover	£12.12	Add to
057	2112310	SCREW TE 6X12	£1.79	Add to
064	8724031	GASKET SET	£24.72	Add to
065	4253412	TOOL BAG DC 2T	£73.55	Add to
27A	3614891	WASHER-PISTON	£4.23	Add to
29A	3614480	Washer	£4.01	Add to
