BRUSH CUTTER CARBURETTOR

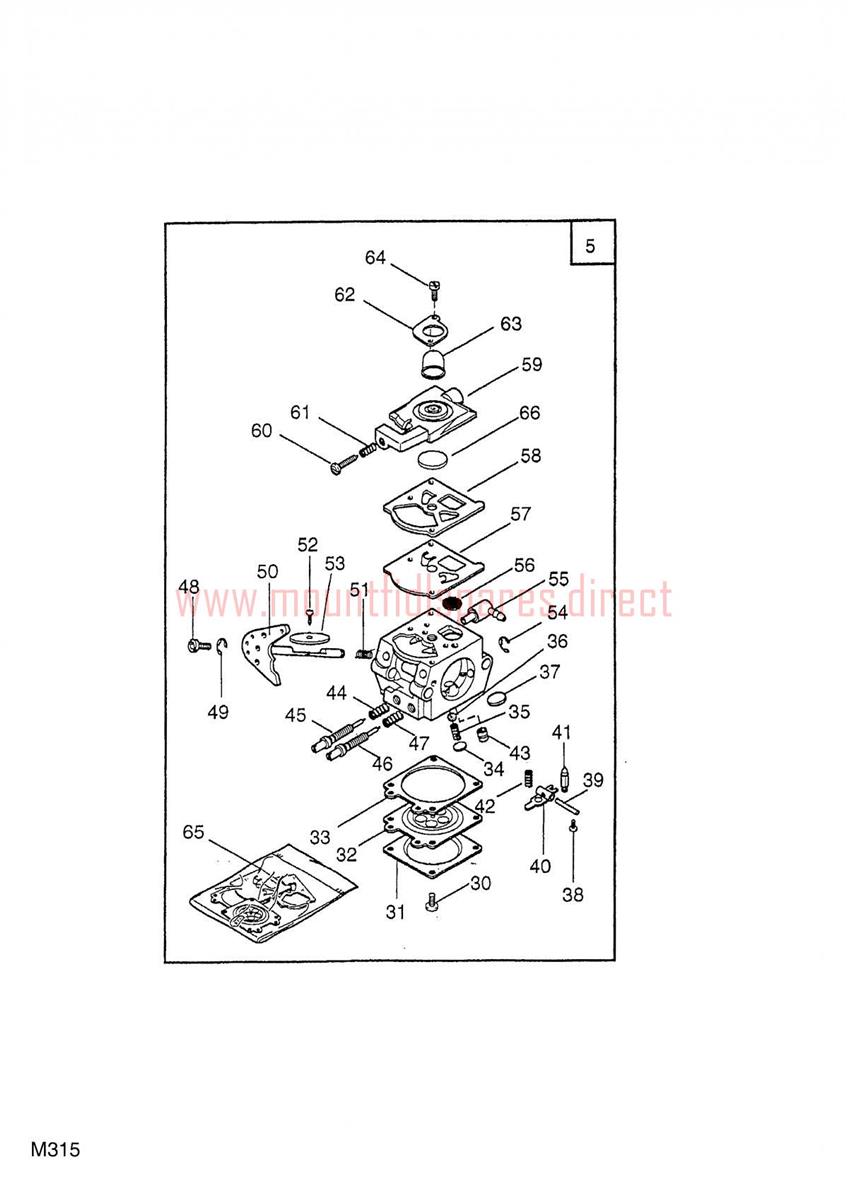

BRUSH CUTTER CARBURETTOR assembly details for Mountfield MB28D 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
005	4153990	CARBURETTOR WT-260B	£170.61	Add to
030	2652430	Screw	£4.01	Add to
031	3611510	Cover	£19.37	Add to
034	3613640	Plug	£7.19	Add to
035	3356080	Retainer	£4.01	Add to
036	3781460	SMALL FILTER	£3.49	Add to
037	3613630	WELCH PLUG	£3.96	Add to
038	2652610	Screw	£4.01	Add to
039	3640820	Fulcrum pin	£10.02	Add to
040	3612470	Control lever	£14.79	Add to
041	3630210	INLET NEEDLE	£10.02	Add to
042	3654080	Spring	£7.19	Add to
043	3642480	VALVE	£27.10	Add to
044	3654100	Spring	£8.14	Add to
045	2653360	IDLE MIXTURE SCREW	£24.62	Add to
046	2653330	Mixture screw-high	£26.95	Add to
047	3654110	SPRING	£4.11	Add to
048	3642470	SWIVEL SCREW	£16.15	Add to
049	3351090	RETAINER	£8.32	Add to
050	3642460	SHAFT SHUTTER	£27.27	Add to
051	3654120	SPRING	£4.59	Add to
052	2652390	Screw	£10.16	Add to
053	3613750	Shutter	£12.19	Add to
054	3351060	RETAINER RS	£6.69	Add to
055	3748600	Fitting (OBSOLETE) (OBSOLETE)	N/A
056	3781450	Screen	£9.46	Add to
059	3660490	COVER PUMP ASSY 2004	£64.31	Add to
060	2653310	IDLE SPEED SCREW	£26.04	Add to
061	3654140	Spring	£11.60	Add to
062	3613730	COVER PRIMER PUMP	£18.82	Add to
063	3744740	PRIMER BULB (OBSOLETE) (OBSOLETE)	N/A
064	2653350	Screw	£4.01	Add to
065	8724150	Diaphragm/gasket set	N/A	POA
066	3744750	PUMP COVER VALVE WT 260/273/30	£12.55	Add to
