MB 28 BRUSH CUTTER DRIVE SHAFT

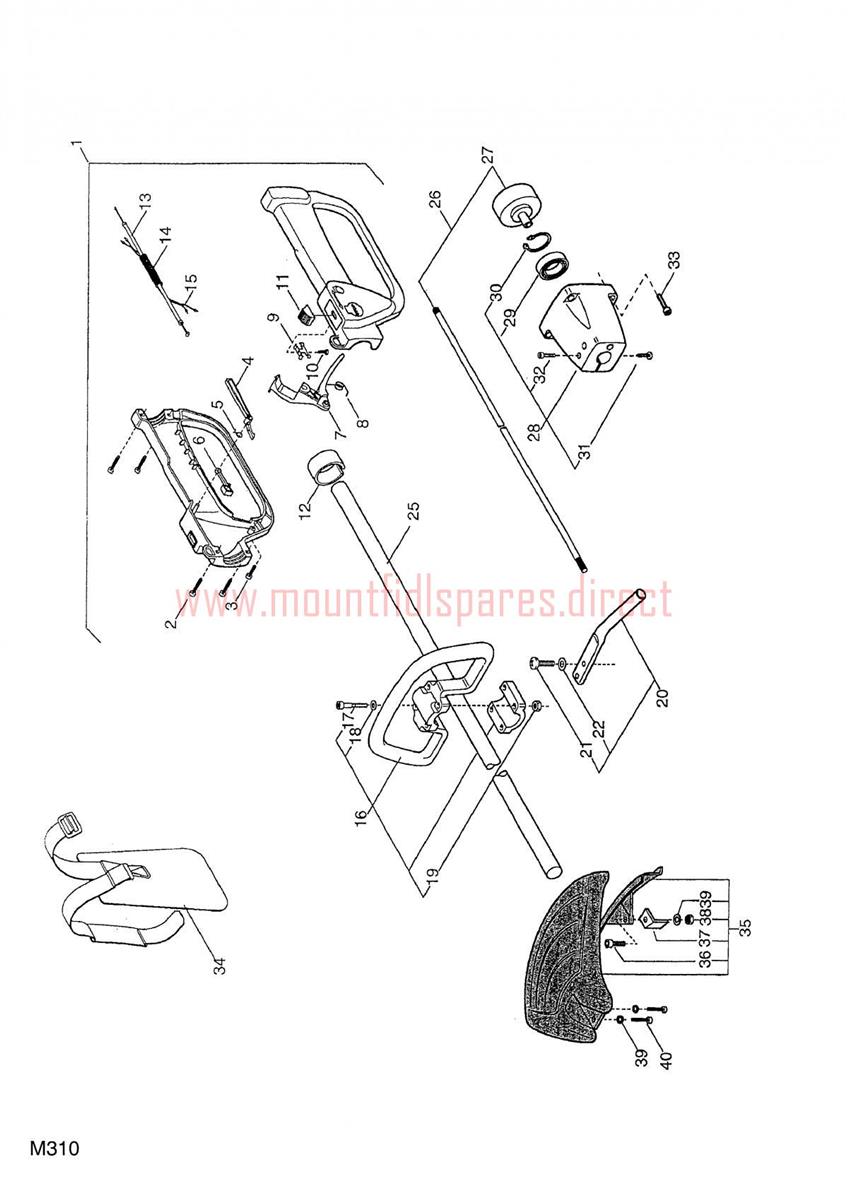

MB 28 BRUSH CUTTER DRIVE SHAFT assembly details for Mountfield MB28 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	8562610	REAR HANDGRIP ASS.Y	£102.48	Add to
002	2123030	TORX SELF-THREAD SCREW	£1.79	Add to
003	2123100	SCREW M4 8 x 13	£1.79	Add to
004	3743475	SAFETY LEVER	£3.15	Add to
005	3654280/1	Spring	£4.60	Add to
006	3743485	Stop throttle lever	£7.19	Add to
007	3743465	THROTTLE LEVER	£4.82	Add to
008	3654270/1	Spring	£4.60	Add to
009	3612710	Stop Plate	£5.66	Add to
010	2123070	TORX SELF-THREAD SCREW	£1.79	Add to
011	3749270	STOP KNOB	£1.79	Add to
012	3749910	Reduction	£4.01	Add to
013	4251780	THROTTLE CABLE	£7.51	Add to
014	3786030	WIRES GUARD SHEATH BC 4T MONO	£12.22	Add to
015	8211110	Stop wire	£8.44	Add to
016	8253201	D LOOP HANDLE ASSEMBLY	£18.61	Add to
017	2135050	TORX SCREW M5 x 30	£1.79	Add to
018	2312090	FLAT WASHER D=5 x 10 x 1	£1.79	Add to
019	2412030	NUT M5 x 5 x 8	£1.79	Add to
020	8620480	BARRIER PIPE ASSEMBLY	£12.81	Add to
021	2123140	Screw	£4.01	Add to
025	8251211	TRANSMISSION PIPE ASSEMBLY	£101.13	Add to
026	4251410	TRANSMISSION SHAFT ASSEMBLY	£46.61	Add to
027	4121881	Clutch drum	£20.50	Add to
028	8561600	SUPPORT TRANSMISSION ASSY VIP	£34.35	Add to
029	3112170	Bearing (OBSOLETE)	N/A
030	3353080	CIRCLIP D=32mm	£1.79	Add to
031	2123150	Screw	£4.01	Add to
033	2135160	SCREW TX M6 x 19	£1.79	Add to
034	4253460	SINGLE HARNESS	£17.27	Add to
035	3L8563570/1	SAFETY COVER ASSEMBLY	£21.83	Add to
036	2135030	TORX SCREW M5 x 20	£1.79	Add to
037	3615000	LINE CUTTER	£8.32	Add to
038	2432040	NUT M5	£1.79	Add to
039	2312150	WASHER 5.5 x 15 x 1.5	£1.79	Add to
040	2135060	TORX SCREW M5 x 25	£2.00	Add to
