MB 25J BRUSH CUTTER GEAR CASE

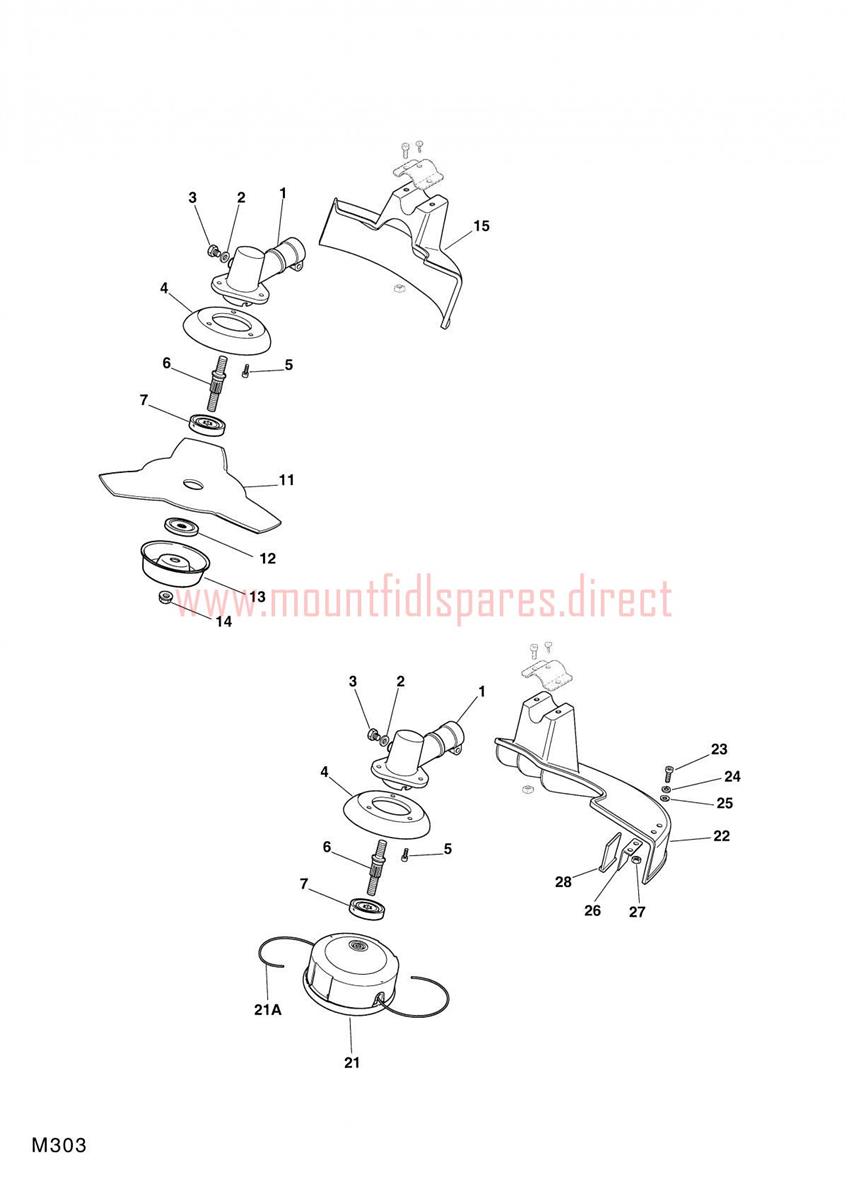

MB 25J BRUSH CUTTER GEAR CASE assembly details for Mountfield MB25J 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6981219	GEAR CASE ASS.Y	£162.60	Add to
002	6981274	Washer	£4.01	Add to
003	6981258	Screw	£4.01	Add to
004	6981214	GEAR CASE PROTECTION	£9.54	Add to
005	6981264	Screw	£4.01	Add to
006	6981216	GEAR SHAFT	£14.42	Add to
007	6981215	UPPER RING NUT	£9.07	Add to
011	6981211	3 TEETH Ø 255-25,4 1,4 MM	£63.40	Add to
012	6981217	LOWER RING NUT	£14.73	Add to
013	6981218	Stabilizer bowl	£11.11	Add to
014	6981257	Nut	£4.01	Add to
015	6981220	SAFETY COVER	£33.62	Add to
021	6981223	NYLON HEAD [M10-FEMALE LH-THREAD]	£31.42	Add to
022	6981286	SAFETY COVER ASSEMBLY	£32.06	Add to
023	1911-4334-01	Screw set	N/A	POA
024	1911-4367-01	Washer	N/A	POA
025	1911-4370-01	Washer	N/A	POA
026	6981221	Line cutter	£7.19	Add to
027	6981278	Nut	£9.98	Add to
028	6981222	Guard	£7.19	Add to
21A	1911-9008-04	Cutting line (2.4 mm)	£49.84	Add to
21A	1911-9008-08	Cutting line (2.4 mm)	£9.54	Add to
