MB 25J BRUSH CUTTER DRIVE SHAFT

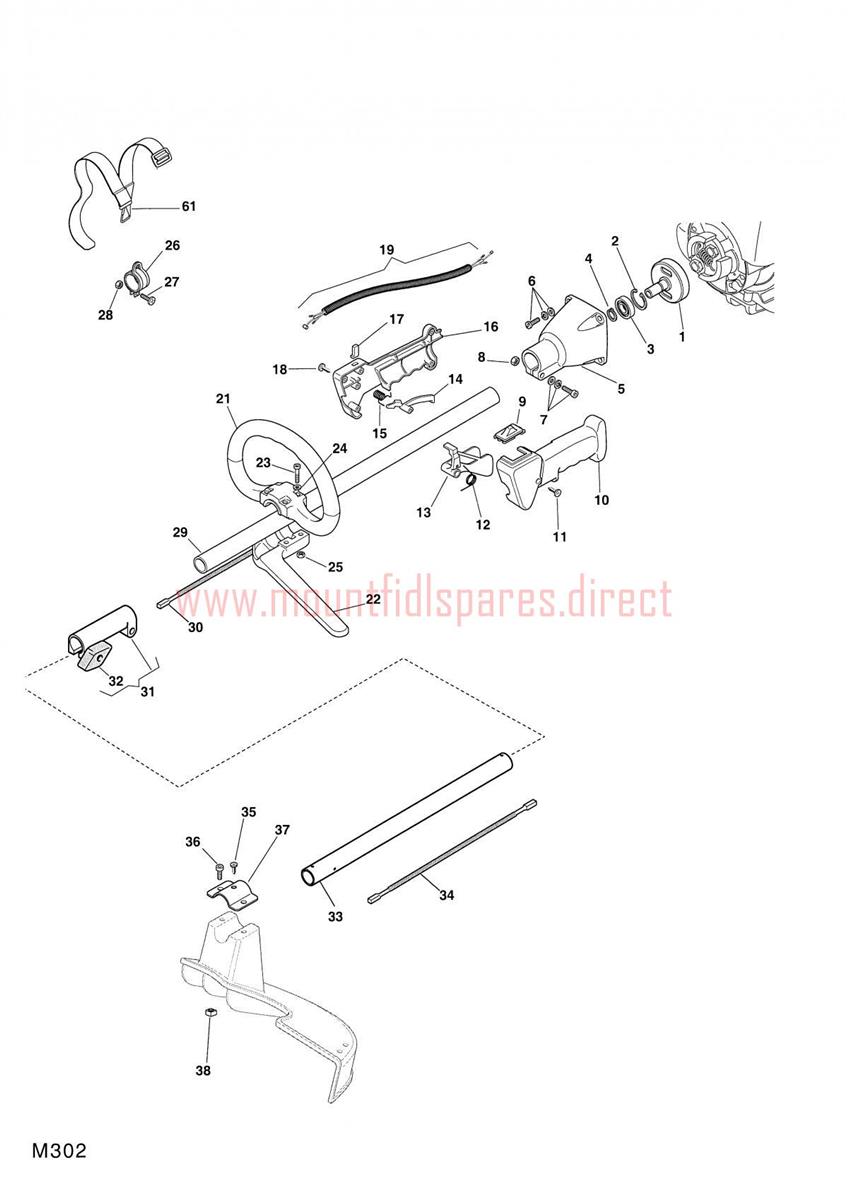

MB 25J BRUSH CUTTER DRIVE SHAFT assembly details for Mountfield MB25J 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	6981208	CLUTCH DRUM ASS.Y	£34.35	Add to
002	6981271	Ring	£4.01	Add to
003	6981256	NEEDLE BEARING	£18.69	Add to
004	6981272	Ring	£4.01	Add to
005	6981207	TRANSMISSION SUPPORT	£38.44	Add to
006	1911-4425-01	Screw set	N/A	POA
007	6981263	Screw set	£4.01	Add to
008	1911-4357-01	Nut	N/A	POA
009	6981230	Switch	£6.69	Add to
010	6981231	LEFT HALF-HANDGRIP	£15.74	Add to
011	6981269	SCREW	£3.64	Add to
012	6981232	Spring	£6.58	Add to
013	6981228	Throttle lever	£6.58	Add to
014	6981229	Safety lever	£5.66	Add to
015	6981226	Spring	£5.69	Add to
016	6981225	RIGHT HALF-HANDGRIP 2008	£15.74	Add to
017	6981227	Button	£5.66	Add to
018	1911-4364-01	Screw	N/A	POA
019	6981233	THROTTLE CABLE	£14.58	Add to
021	6981234	FRONT HANDLE	£34.11	Add to
022	6981235	Barrier tube	£14.09	Add to
023	6981282	Screw	£4.01	Add to
024	6981274	Washer	£4.01	Add to
025	1911-4356-01	Nut	N/A	POA
026	6981209	Support-harness	£13.73	Add to
027	1911-4360-01	Screw	N/A	POA
029	6981291	TRANSMISSION PIPE	£16.16	Add to
030	6981312	TRANSMISSION SHAFT	£50.70	Add to
031	6981309	JOINT ASSY.	£54.30	Add to
032	6981290	Knob	£7.19	Add to
033	6981292	TRANSMISSION PIPE	£25.01	Add to
035	1911-4429-01	Screw	N/A	POA
036	6981260	Screw	£4.01	Add to
037	6981212	Bracket	£7.50	Add to
038	6981213	Nut	£4.01	Add to
061	6981210	HARNESS	£24.34	Add to
099	9959905	SAFETY GOOGLES	£5.21	Add to
