ENGINE

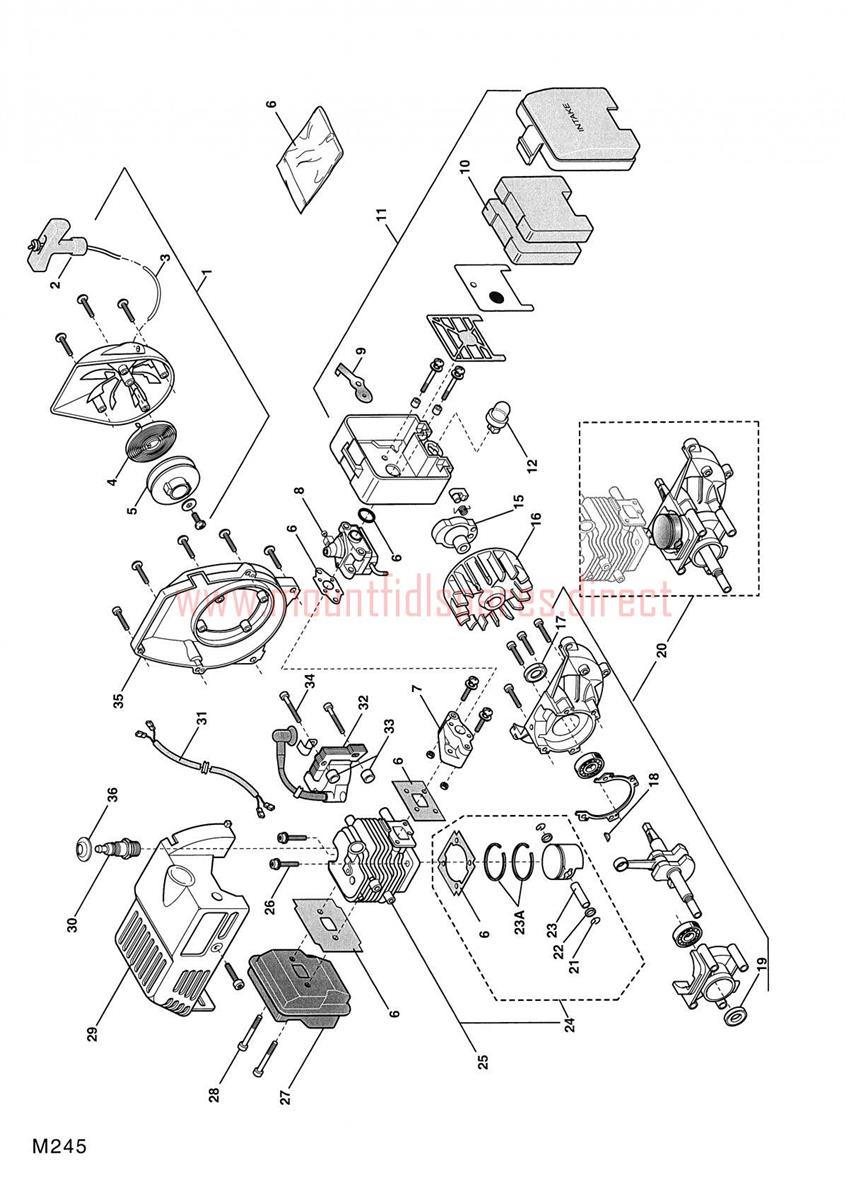

ENGINE assembly details for Mountfield MB22CX 2006 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	1911-3781-01	Start assy (OBSOLETE)	N/A
002	1911-3782-01	Starter handle (OBSOLETE)	N/A
003	1911-3783-01	Starter rope (OBSOLETE)	N/A
004	1911-3784-01	Spring (OBSOLETE)	N/A
005	1911-3785-01	Pulley	N/A	POA
006	6980236	GASKET SET	£6.23	Add to
007	1911-3787-01	Carburettor base	N/A	POA
008	6980238	CARBURETTOR J.F.	£132.70	Add to
009	1911-3789-01	Choke valve	N/A	POA
010	1911-3790-01	Air filter	N/A	POA
011	6980241	AIR FILTER ASSEMBLY (OBSOLETE) (OBSOLETE)	N/A
012	118804231/0	PRIMER BULB	£6.23	Add to
015	1911-3855-01	Starter pawl assy	N/A	POA
016	1911-3796-01	Flywheel	N/A	POA
017	1911-3797-01	Seal ring	N/A	POA
018	1911-3798-01	Key	N/A	POA
019	1911-3799-01	Seal ring	N/A	POA
020	1911-3800-01	Short-block	N/A	POA
021	1911-3801-01	Lock ring	N/A	POA
022	1911-3802-01	Gasket	N/A	POA
023	1911-3803-01	Piston pin	N/A	POA
024	1911-3804-01	Piston assy	N/A	POA
025	1911-3805-01	Cylinder assy w.pisto	N/A	POA
026	1911-3806-01	Screw	N/A	POA
027	1911-3807-01	Muffler	N/A	POA
028	1911-3808-01	Screw	N/A	POA
029	1911-3809-01	Engine shield	N/A	POA
030	3210024	SPARK PLUG CHAMPION RCJ7Y , NGK BPMR6A	£4.52	Add to
031	1911-3810-01	Wiring harness	N/A	POA
032	6980261	IGNITION COIL	£65.02	Add to
033	1911-3812-01	Spacer	N/A	POA
034	1911-3813-01	Screw	N/A	POA
035	1911-3814-01	Flywheel cover	N/A	POA
036	1911-3815-01	Spark plug cover	N/A	POA
08A	1911-2062-01	Throttle valve & shaf (OBSOLETE)	N/A
23A	1911-3816-01	Piston ring	N/A	POA
