Full Assembly

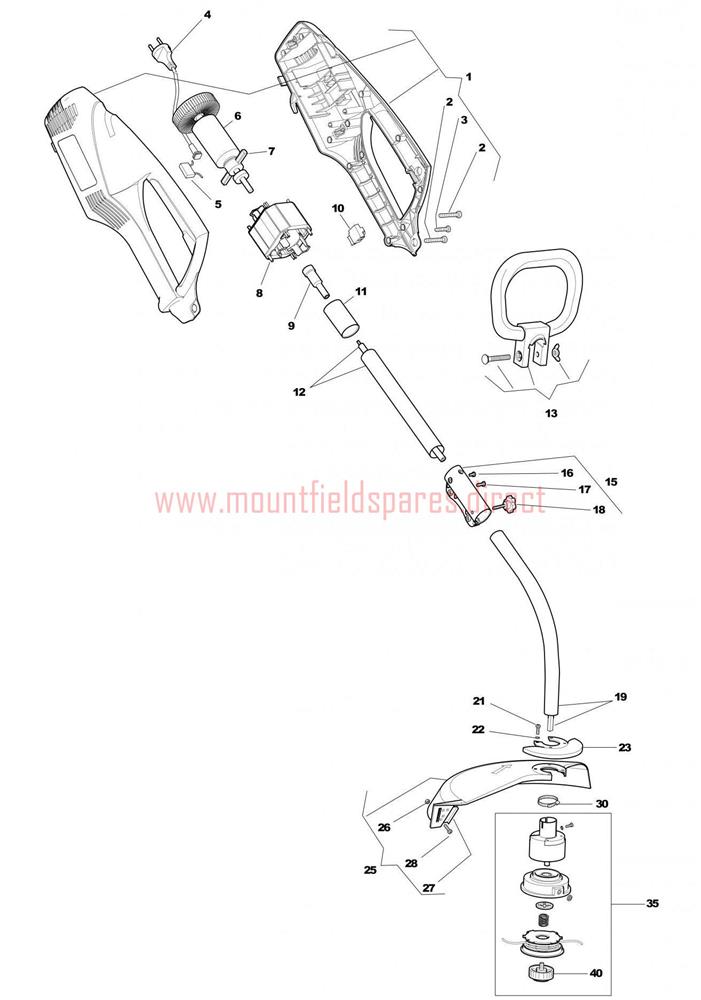

Full Assembly assembly details for Mountfield MT900J 2008 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
0016985073SA RED CLAMM SHELL£62.97 Add to
0026985034ScrewN/A POA
0036985051ScrewN/A POA
0046985065Feed Line With PlugN/A POA
0056985033CapacitorN/A POA
0066985066SA ARMATURE£135.06 Add to
0076985074SA BRUSH£19.22 Add to
0086985075FieldN/A POA
0096985070SA FLEXIBLE JOINT£10.91 Add to
0106985071SwitchN/A POA
0116985064SpacerN/A POA
0126985080SA UPPER TUBE WITH FLEXIBLE SHAFT£64.32 Add to
0136985092Front Handgrip Ass.N/A POA
0156985093Joint Chair Ass'YN/A POA
0166985060ScrewN/A POA
0172135020TORX SCREW M5 x 10£1.79 Add to
0186985059KnobN/A POA
0196985079Assy Transm. Tube+FlexN/A POA
0216985063ScrewN/A POA
0226985058WasherN/A POA
0236985052CollarN/A POA
0256985090Safety Cover Ass.YN/A POA
0266985038NUT M4£2.00 Add to
0276985054Line CutterN/A POA
0286985036ScrewN/A POA
0306985089ClampN/A POA
0356985095CUTTING LINE ASSY£47.97 Add to
0406985085KnobN/A POA
