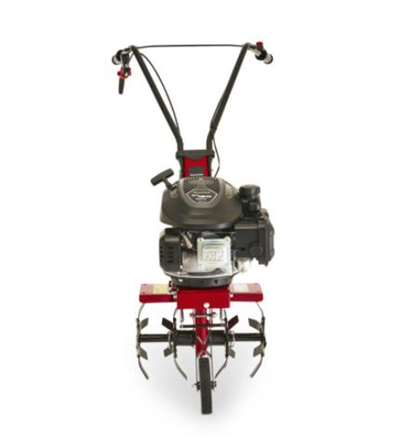

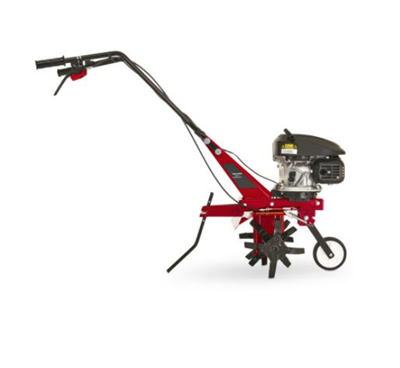

Manor Compact 36 V Cultivator
The Manor Compact 36V takes all the hard work out of preparing your veg patch or new flower beds. Forget the spade and let the cultivator take the strain. Powered by STIGA ST120 OHV petrol engine, it will make light work of compacted soil in readiness for your seeds and little seedlings.
- POWERED BY STIGA WITH AN ST120 OHV 123CC ENGINE
- 36CM WORKING WIDTH
- PRESSED STEEL BODY
- 27KG – TOTAL WEIGHT
- SOFT GRIP HANDLE
- COMES WITH A STANDARD TWO-YEAR WARRANTY
- FREE DELIVERY
Product details and specs
The Manor Compact 36V is a sturdy machine. Powered by STIGA, ST120 OHV engine with a capacity of 123cc, the working width is 36cm resulting in only needing a few passes to cultivate a large area of soil.
The body is made from pressed steel and with a total weight of 27kg, it is a joy to work with. It really will help clear complete allotments in a blink of an eye, allowing you plenty of time to sort out the rest of your garden and relax in a deckchair watching your carrot seeds grow.
WORKING SYSTEM
Working width | 36 cm |
---|
Rotors number | 4 |
---|
Rotors diameter | 245 mm |
---|
EQUIPMENT
Wheel type | Plastic + Rubber |
---|
Transport wheels | 1 front wheel |
---|
Soft grip handle | Yes |
---|
OVERALL DIMENSIONS
Pack weight | 31 kg |
---|
Product length | 1140 mm |
---|
Product width | 360 mm |
---|
Product height | 950 mm |
---|
Weight | 27 kg |
---|
POWER
Power source | Petrol 4-stroke |
---|
Power | 1.9 kW |
---|
Engine Brand | STIGA |
---|
Engine model | ST 120 OHV Autochoke |
---|
Displacement | 123 cm³ |
---|
Engine rotation speed | 2900 rpm |
---|
Maximum engine speed | 3200 rpm |
---|
Fuel tank capacity | 0.8 l |
---|
Gear case oil capacity | 0.45 l |
---|
Air filter type | Sponge |
---|
TRANSMISSION
Number of gears | 1 forward |
---|
Transmission type | Worm and gear in oil bath + belt |
---|
VIBRATION AND NOISE DATA
Guaranteed sound power level (LwA) - dB(A) | 93 |
---|
Vibration level left handle (m/s2) | 4.5 |
---|
Measured sound power level dB(A) | 91 |
---|
Vibration level right handle (m/s2) | 4.5 |
---|
Measured sound pressure level at operator ear dB(A) | 76 |
---|
