INJECTION PUMP (6003-510Y-0100)

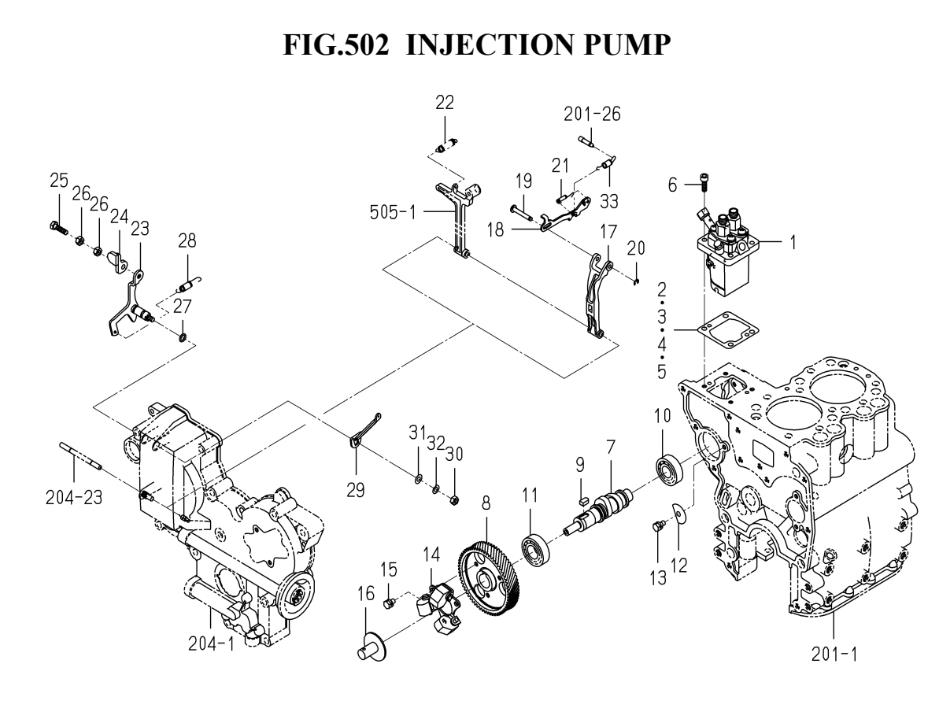

INJECTION PUMP (6003-510Y-0100) assembly details for Iseki ENGINE (E269G) SXG15 (F2 & C-TYPE)(1782-095-200-00) SXG15 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	621560014700	INJECTIONPUMP ASSY	£668.63	Add to
002	621975203600	SHIM/INJECTIONPUMP	£3.27	Add to
003	621975203700	SHIM/INJECTIONPUMP	£3.27	Add to
004	621975203800	SHIM/INJECTIONPUMP	£3.27	Add to
005	621975203900	SHIM/INJECTIONPUMP	£3.27	Add to
006	620905600100	BOLT/M6X18	N/A	POA
007	621562103600	CAMSHAFT/INJECTION PUMP	N/A	POA
008	621252400230	GEAR/INJECTIONPUMP	N/A	POA
009	620973000500	KEY/07X05X09 (20508)	£4.04	Add to
010	V60011062030	BEARING,RB/6203	£13.01	Add to
011	V60011060040	BEARING,RB/6004 (-211434)	£12.59	Add to
012	621253500200	PLATE,THRUST INJPUMP	N/A	POA
013	690191061200	BOLT,SEMS/M6X12	£3.96	Add to
014	621552000100	FLYWEIGHT	N/A	POA
015	620903004300	BOLT/M6X10	N/A	POA
016	621552600400	THRUSTPIECE	£41.10	Add to
017	621554100110	ARM/FLOATING COMP	£32.58	Add to
018	621554300320	LINK/CONTROL	N/A	POA
019	621554200200	PIN, CONTROL LINK	N/A	POA
020	V71014000400	RING, SNAP/4 E	£1.43	Add to
021	621554900300	SPRING, SETTING	£3.77	Add to
022	621553100100	SPRING GOVERNOR	N/A	POA
023	621554100310	LEVER,CONTROL	£19.78	Add to
024	621554902110	PLATE(CONTROLLEVER)	N/A	POA
025	620904400100	BOLT/M6X18	£3.03	Add to
026	V30226000600	NUT/M6	£1.35	Add to
027	V72010190080	O-RING/1A,P8	£3.06	Add to
028	620958000210	SPRING,RETURN	£3.37	Add to
029	621554900710	ARM/CONTROL (-180997)	N/A	POA
030	V30126000600	NUT/M6	£1.64	Add to
031	V41126000600	WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)	£1.64	Add to
032	V40116000600	WASHER,SP/M6 (SXG19 -7185) (SXG22 -2320) (100464-)	£1.64	Add to
033	621554900810	SPRING/STARTING	£6.00	Add to
