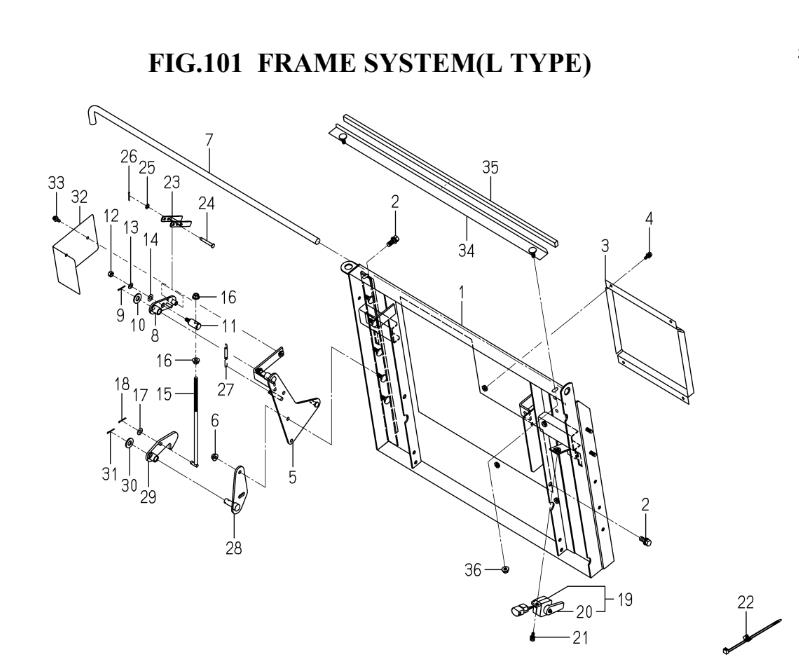

FRAME SYSTEM(L TYPE)(8671-105A-0100)

FRAME SYSTEM(L TYPE)(8671-105A-0100) assembly details for Iseki COLLECTOR SBC400X (8671-095-200-00) SXG15 model

Parts list

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

RefNoDescriptionPrice
001867110531000FRAME/COLLECTOR COMPN/A POA
002V21126100250BOLT,S/M10X25£2.12 Add to
003867110500220COVER/CASE/COUNTER£27.04 Add to
004V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
005867110524030BRACKET/ASSIST/RHN/A POA
006V36226000800NUT/WASHER/M8£1.77 Add to
007867110500300BAR£25.76 Add to
008867110528000PLATE/IR/30X95 COMPN/A POA
009V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
010V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
011859621300210PIN(JOINT)£15.19 Add to
012V30426000800NUT/M8 (SSM54 -100000)£1.64 Add to
013V40116000800WASHER,SP/M8 (100545-)£1.60 Add to
015867110526000ROD/LOCK/L COMPN/A POA
016V36226000800NUT/WASHER/M8£1.77 Add to
018V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
019171668033000SWITCH/LEVER ASSY (-100531)£93.10 Add to
020171668022200ARM£6.13 Add to
021V21036060160BOLT,SP/M6X16 (-104713) (-236)£1.92 Add to
022156066600400BAND£1.77 Add to
023867110527000PLATE/IR/13X80 COMPN/A POA
024214480505600PIN/06X41N/A POA
025V41126000600WASHER,PL/M6 (SXG19 7186-) (SXG22 2321-) (100464-)£1.64 Add to
026V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
027218377606200SPRING/HE070N/A POA
028867115528010BRACKET/LOCK/RH COMP£34.53 Add to
029867115529000PLATE/HOOK COMP£34.53 Add to
030V41126001200WASHER,PL/M12 (SSM54 100001-)£2.64 Add to
031V50016250200PIN,SPLIT/2.5X20 (SXG19 9442-) (SXG22 3149-)£1.64 Add to
032867110500400COVER/LEN/A POA
033V12037600160SCREW,SP£3.92 Add to
034867110529000PLATE/L/780X15 COMPN/A POA
035433441130800TAPE/13X10X7£5.11 Add to
036V36226000800NUT/WASHER/M8£1.77 Add to
