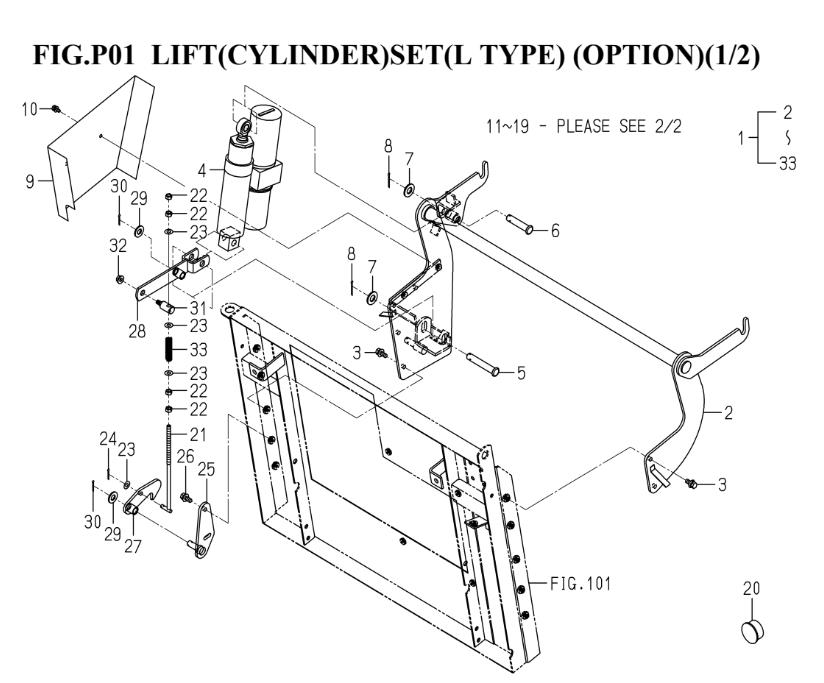

LIFT(CYLINDER)SET(L TYPE)(OPTION)(1/2)(8671-107Z-0100)

LIFT(CYLINDER)SET(L TYPE)(OPTION)(1/2)(8671-107Z-0100) assembly details for Iseki COLLECTOR SBC400X (8671-095-100-00) SXG15 model

Match the number with the image on the left and click "Add" button to add the item to your basket

Please note, that the prices are for individual items

Items might appear more than once on the drawing, please check and adjust the quantity you require.

Ref	No	Description	Price
001	867110731000	LIFT/CYLINDER SET	N/A	POA
002	867115721010	PIPE/LIFT/P COMP	N/A	POA
003	V21166080200	BOLT,SP/M8X20/7T	£2.69	Add to
004	867115741000	CYLINDER/PACKAG ASSY	£1,588.20	Add to
005	867115700210	PIN/14X83	£8.06	Add to
006	365038006200	PIN/14X97	£7.19	Add to
007	V41126001400	WASHER,PL/M14 (SSM60 100001-)	£1.91	Add to
008	V50016300300	PIN,SPLIT/3X30 (-511)	£1.64	Add to
009	867115700410	COVER/CYLINDER	N/A	POA
010	V21036060160	BOLT,SP/M6X16 (-104713) (-236)	£1.92	Add to
011	867165720010	HARNESS/CYLINDER ASSY	£105.18	Add to
012	161469020200	FUSE/SLOWBLOW/50A (-622) (623-)	£9.39	Add to
013	V21136080160	BOLT,SP/M8X16	£2.10	Add to
014	867165700300	RELAY/5P ASSY	£29.61	Add to
015	V20026050160	BOLT/M5X16	N/A	POA
016	V36026000500	NUT/WASHER/M5 (-622) (623-)	£1.76	Add to
017	V41126000500	WASHER,PL/M5	N/A	POA
018	V40116000500	WASHER,SP/M 5	N/A	POA
019	170560637000	SWITCH/SEESAW ASSY	£132.52	Add to
020	796350500300	CAP/42	N/A	POA
021	867115527000	ROD/LOCK COMP	N/A	POA
022	V30426000800	NUT/M8 (SSM54 -100000)	£1.64	Add to
024	V50016300200	PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116)	£1.52	Add to
025	867115528000	BRACKET/LOCK/RH COMP	N/A	POA
026	V21166080200	BOLT,SP/M8X20/7T	£2.69	Add to
027	857115529000	PLATE/HOOK COMP	N/A	POA
028	867115531000	LINK/LOCK COMP	£48.41	Add to
029	V41126001200	WASHER,PL/M12 (SSM54 100001-)	£2.64	Add to
030	V50016300200	PIN,SPLIT/3X20 (SXG19 -636) (SXG22 -116)	£1.52	Add to
